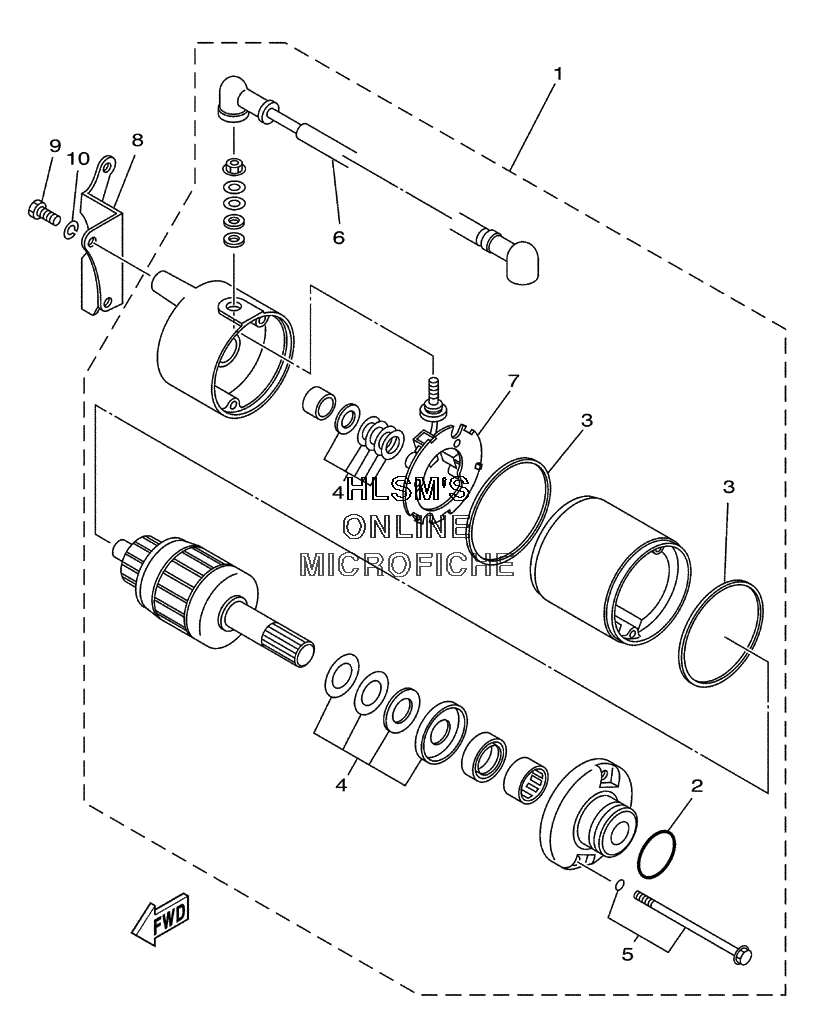

STARTING MOTOR для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-81800-02-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
21FK-81847-00-00 ...O-RING...O-RING
-
34WP-81844-00-00 ...GASKET...GASKET
-
43KS-81809-00-00 ...WASHER KIT...WASHER KIT
-
54WP-81826-00-00 ...BOLT...BOLT
-
64BD-81815-01-00 ...CORD, STARTER MOTOR...CORD, STARTER MOTOR
-
74WP-81801-00-00 ...BRUSH SET...BRUSH SET
-
81EV-81823-00-00 STAY, STARTING MOTORSTAY, STARTING MOTOR
-
998507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092907-06100-00 WASHER, SPRINGWASHER, SPRING
