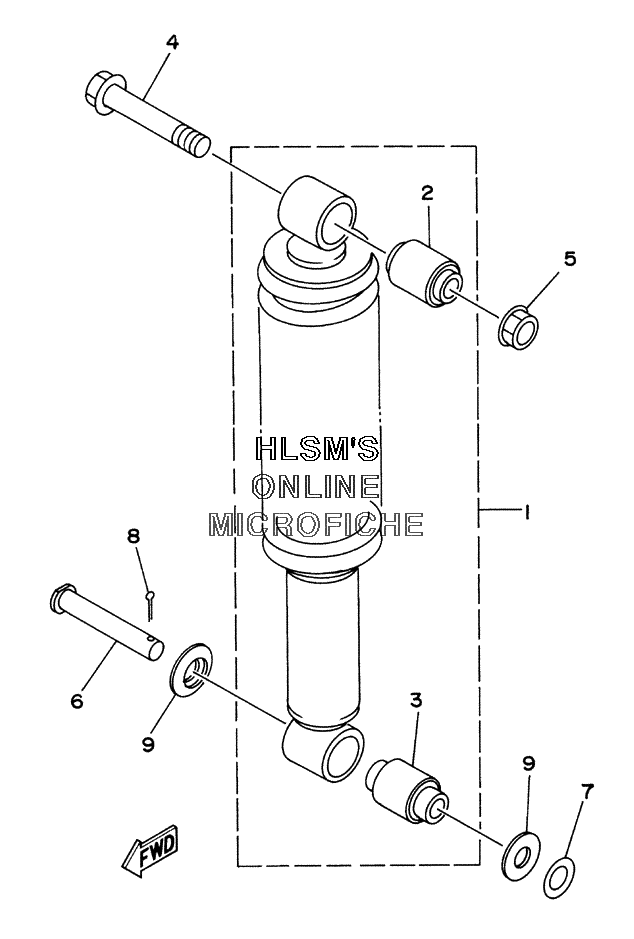

SUSPENSION - REAR SHOCK ABSORBER для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14BD-22210-20-33 SHOCK ABSORBER ASSY, REAR (YB)SHOCK ABSORBER ASSY, REAR (YB)
-
224R-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
32VA-22226-00-00 ...BUSH, SHOCK ABSORBER LOWER...BUSH, SHOCK ABSORBER LOWER
-
490105-12425-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690240-12092-00 PIN, CLEVISPIN, CLEVIS
-
790201-127J6-00 WASHER, PLATEWASHER, PLATE
-
891401-30025-00 PIN, COTTERPIN, COTTER
-
91W1-22128-00-00 COVER, THRUST 1COVER, THRUST 1
