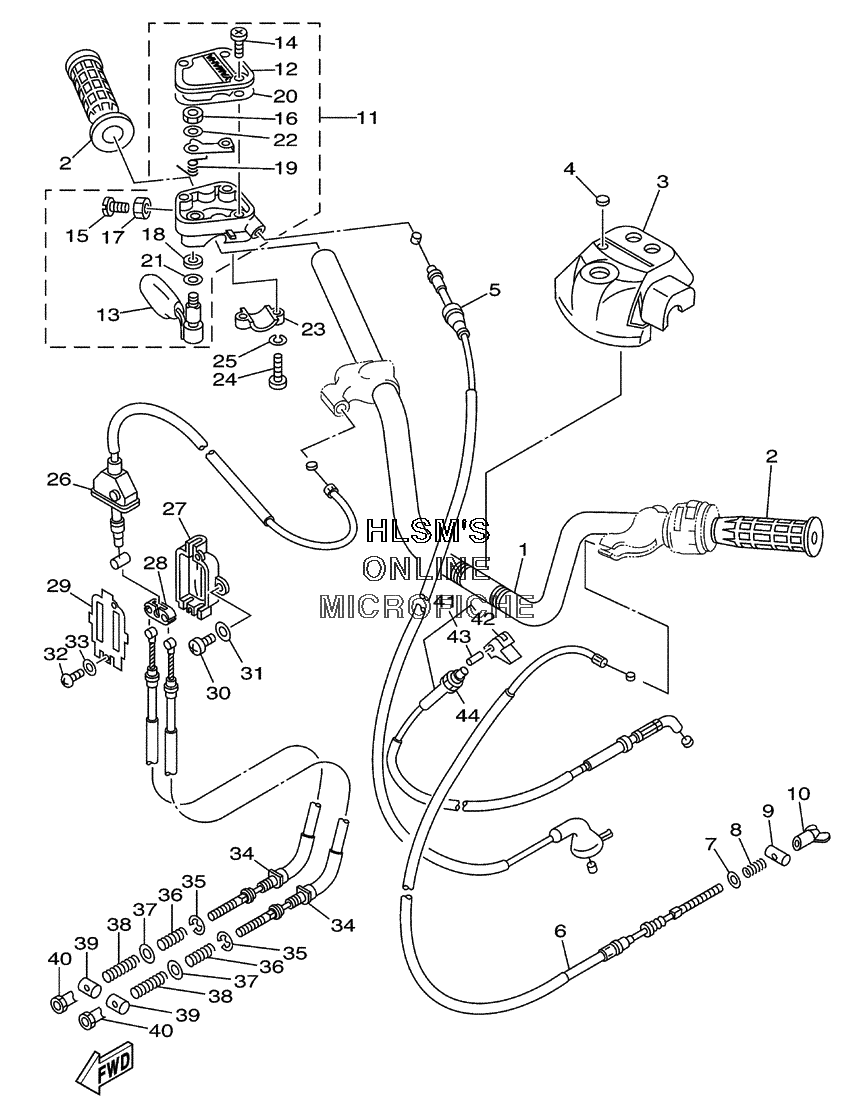

STEERING HANDLE - CABLE для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
13FA-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34BD-26124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
54KD-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
64KD-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
790202-08175-00 WASHER, PLATEWASHER, PLATE
-
890501-122E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990249-12008-00 PINPIN
-
1020E-26343-00-00 NUT, ADJNUT, ADJ
-
111NV-26250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
121NV-2628F-00-00 ...CAP, GEAR...CAP, GEAR
-
131NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1498507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1695607-05100-00 ...NUT, U...NUT, U
-
1795307-05700-00 ...NUT...NUT
-
1893104-09025-00 ...OIL SEAL...OIL SEAL
-
191NV-26304-00-00 ...SPRING...SPRING
-
201NV-2628G-00-00 ...GASKET...GASKET
-
211NV-26129-00-00 ...WASHER...WASHER
-
221NV-26398-00-00 ...WASHER...WASHER
-
234V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2498507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592907-05100-00 WASHER, SPRINGWASHER, SPRING
-
264BD-26373-01-00 CABLE, BRAKE 4CABLE, BRAKE 4
-
2752H-26371-00-00 HOUSING, BRAKE LINKHOUSING, BRAKE LINK
-
2852H-26347-01-00 JOINT, CABLEJOINT, CABLE
-
2952H-2631G-00-00 PLATEPLATE
-
3098507-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192907-03600-00 WASHERWASHER
-
3298507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392907-05600-00 WASHER, PLATEWASHER, PLATE
-
344KD-26361-01-00 CABLE, BRAKECABLE, BRAKE
-
3599001-06600-00 CIRCLIPCIRCLIP
-
3690501-123A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3790209-06265-00 WASHERWASHER
-
3890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3990249-12008-00 PINPIN
-
4090179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
414BD-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
4221V-26374-00-00 ...END, CABLE 3...END, CABLE 3
-
4391609-30010-00 ...PIN, SPRING...PIN, SPRING
-
448G8-26333-00-00 NUTNUT
