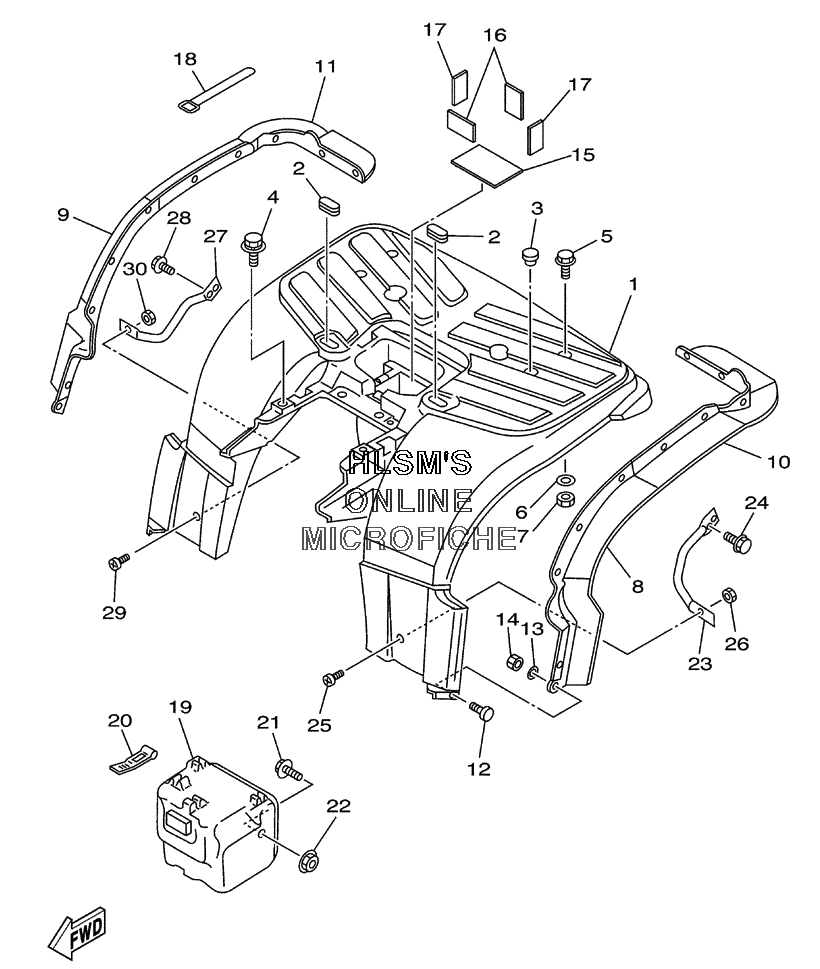

FENDER - REAR для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
14KD-W2161-F0-00 REAR FENDER COMP. (PDG)REAR FENDER COMP. (PDG)
-
290480-01556-00 GROMMETGROMMET
-
390480-10068-00 GROMMETGROMMET
-
490119-06205-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
692907-06200-00 WASHERWASHER
-
795607-06100-00 NUT, UNUT, U
-
84BD-21621-00-00 FLAPFLAP
-
94BD-21691-00-00 FLAPFLAP
-
104BD-2162H-00-00 FLAP 3FLAP 3
-
114BD-2162J-00-00 FLAP 4FLAP 4
-
1290154-05005-00 SCREW, BINDINGSCREW, BINDING
-
1390201-05029-00 WASHER, PLATEWASHER, PLATE
-
1495707-05300-00 NUT, FLANGENUT, FLANGE
-
154BD-21639-00-00 DAMPER 2DAMPER 2
-
1626H-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
174V1-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1890464-48174-00 CLAMPCLAMP
-
194BD-2160A-00-00 BOX COMP.BOX COMP.
-
2059V-21646-00-00 BANDBAND
-
2190119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2295707-06600-00 NUT, FLANGENUT, FLANGE
-
234BD-21643-00-00 STAY, FENDER 3STAY, FENDER 3
-
2495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2590149-06184-00 SCREWSCREW
-
2695607-06100-00 NUT, UNUT, U
-
274BD-21644-00-00 STAY, FENDER 4STAY, FENDER 4
-
2895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2990149-06184-00 SCREWSCREW
-
3095607-06100-00 NUT, UNUT, U
