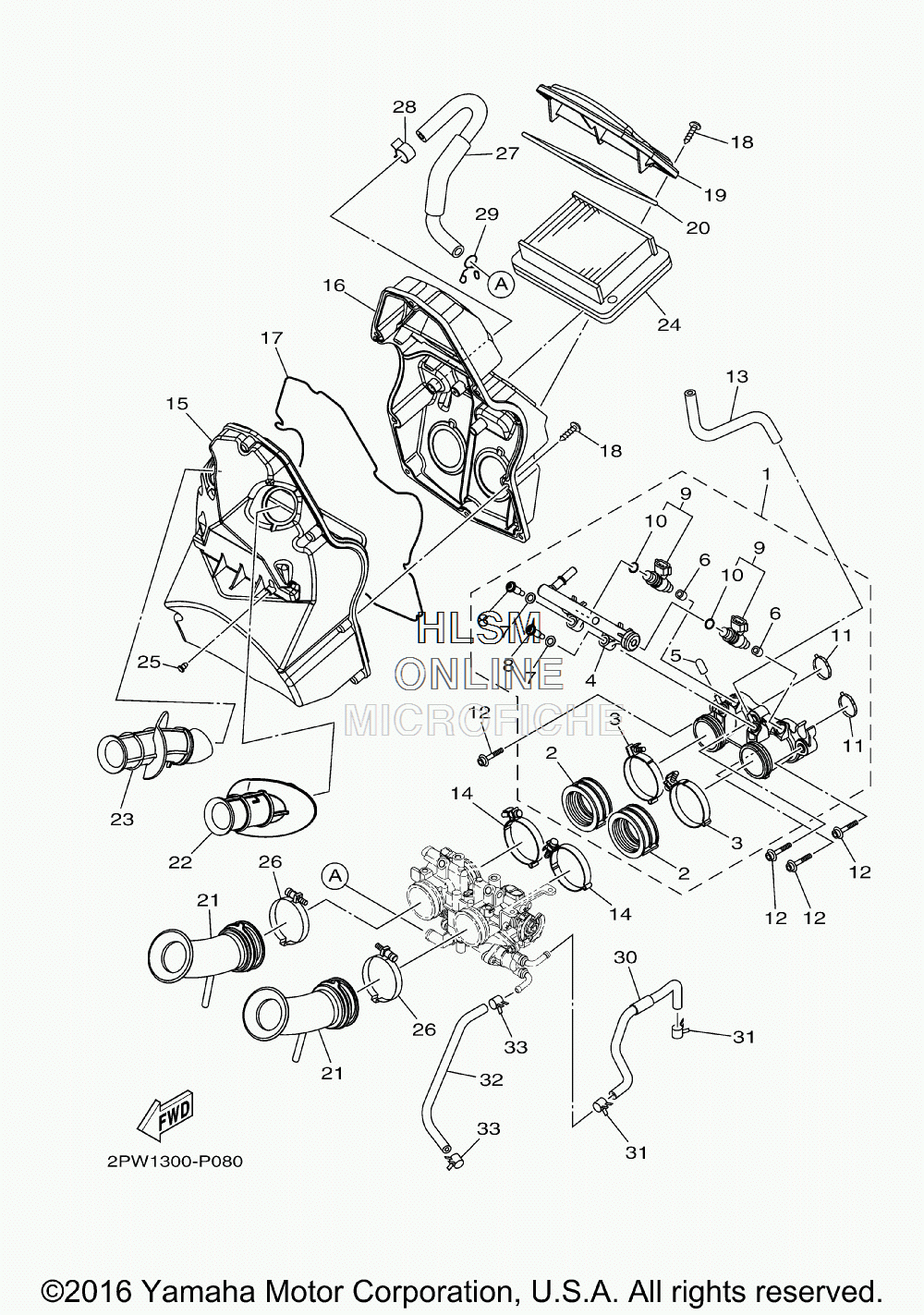

AIR CLEANER ASSY. W/ INTAKE для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-13630-00-00 INTAKE MANIFOLD ASSY.INTAKE MANIFOLD ASSY.
-
259C-13635-00-00 ...JOINT, INTAKE 1...JOINT, INTAKE 1
-
390450-52008-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
459C-13938-00-00 ...PIPE...PIPE
-
584M-14169-00-00 ...CAP...CAP
-
68FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
7363-14198-00-00 ...GASKET...GASKET
-
814B-13573-00-00 ...BOLT 1...BOLT 1
-
92C0-13761-10-00 ...INJECTOR...INJECTOR
-
105PS-14147-00-00 ......O-RING......O-RING
-
1159C-13645-00-00 ...GASKET, MANIFOLD 1...GASKET, MANIFOLD 1
-
1290110-06346-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390445-08017-00 HOSEHOSE
-
1490450-52008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
154B5-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
162PW-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
1759C-14452-00-00 SEALSEAL
-
1897702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
1959C-1441A-01-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
204B5-14462-01-00 SEALSEAL
-
2159C-14479-00-00 FUNNELFUNNEL
-
2259C-14437-00-00 DUCTDUCT
-
2359C-1443A-00-00 DUCTDUCT
-
244B5-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
2590338-05056-00 PLUGPLUG
-
2690450-52008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2759C-13545-01-00 HOSE 1HOSE 1
-
2890467-17089-00 CLIPCLIP
-
2990467-150A2-00 CLIPCLIP
-
3059C-1243F-00-00 HOSE,3HOSE,3
-
3190467-110A2-00 CLIPCLIP
-
3259C-1244G-00-00 HOSE, 4HOSE, 4
-
3390467-110A2-00 CLIPCLIP
