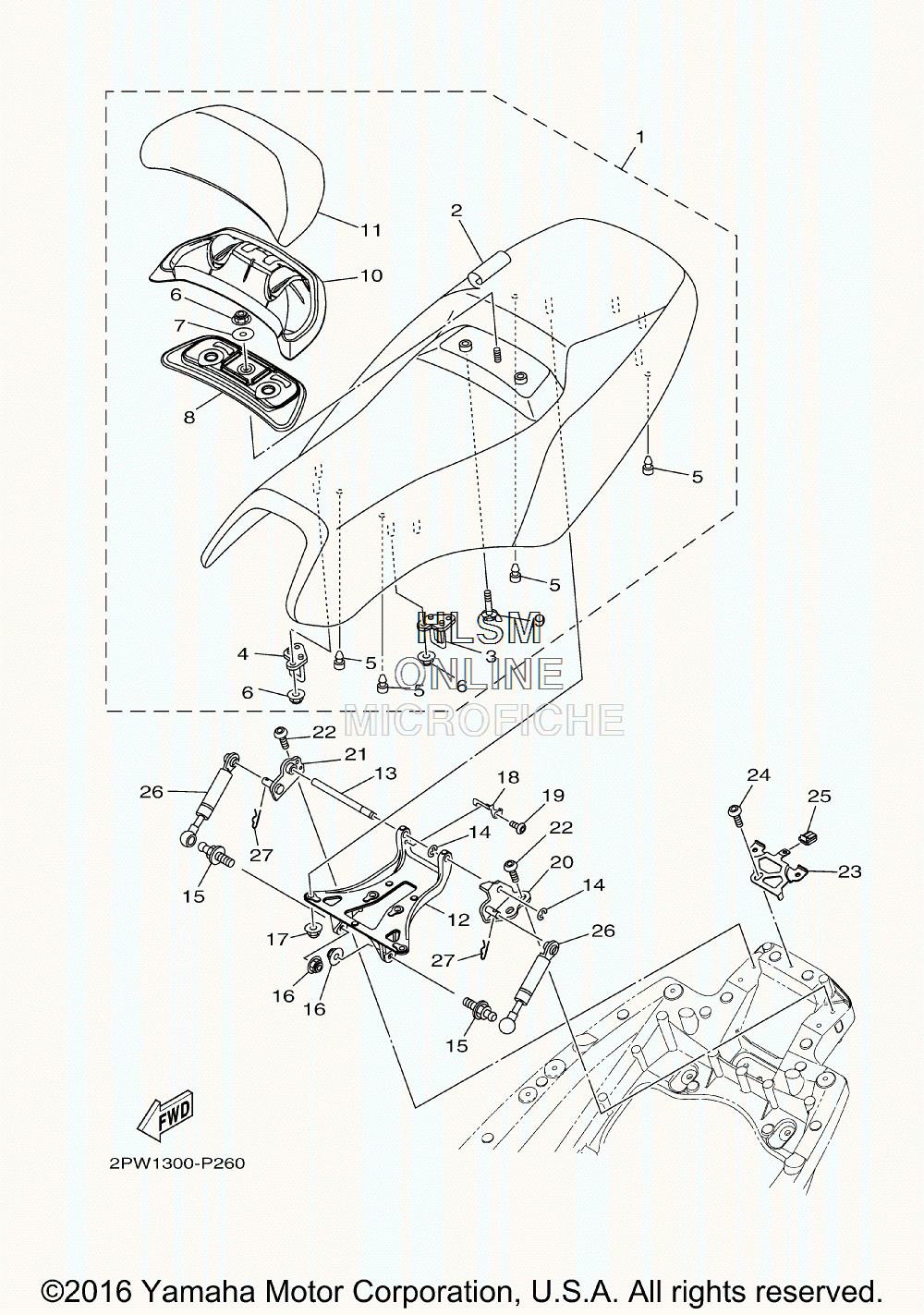

SEAT ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
12PW-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
24B5-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
32PW-24738-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
42PW-24748-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
52PW-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
695607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
790201-065G8-00 ...WASHER, PLATE...WASHER, PLATE
-
84B5-24752-00-00 ...PLATE...PLATE
-
995802-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
104B5-24790-03-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
114B5-24791-00-00 ...COVER, SEAT BACK...COVER, SEAT BACK
-
122PW-24726-00-00 HINGE, SEATHINGE, SEAT
-
132PW-24727-00-00 PIN, SEAT FITTINGPIN, SEAT FITTING
-
1493430-09038-00 CIRCLIPCIRCLIP
-
154B5-2474E-00-00 ARMARM
-
1695602-08200-00 NUT, U FLANGENUT, U FLANGE
-
1795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
182PW-24718-00-00 BRACKET, SEATBRACKET, SEAT
-
1992012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
204B5-24769-01-00 HINGE, SEATHINGE, SEAT
-
214B5-24779-01-00 HINGE, SEAT 2HINGE, SEAT 2
-
2295022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2359C-2475U-00-00 BRACKET, TAIL COVERBRACKET, TAIL COVER
-
2495022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2559P-21746-00-00 DAMPERDAMPER
-
264B5-2478G-12-00 STOPPERSTOPPER
-
2790468-16001-00 CLIPCLIP
