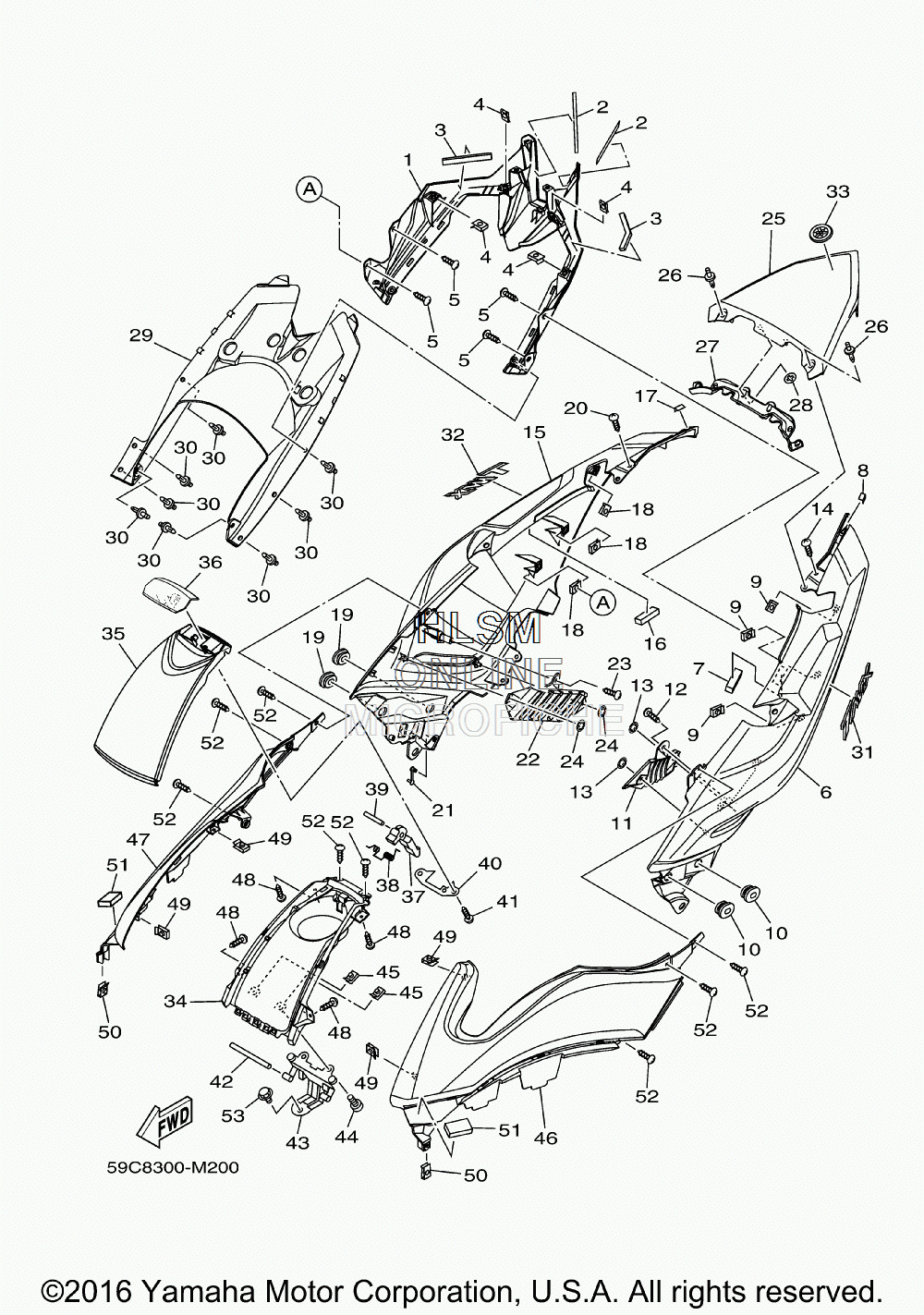

SIDE COVER для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
12PW-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
22C0-21746-00-00 DAMPERDAMPER
-
34B5-2174X-00-00 DAMPERDAMPER
-
490183-05042-00 NUT, SPRINGNUT, SPRING
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
659C-21711-00-P9 COVER, SIDE 1 (MLNM3)COVER, SIDE 1 (MLNM3)
-
790520-10014-00 DAMPER, PLATEDAMPER, PLATE
-
890520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
990183-05042-00 NUT, SPRINGNUT, SPRING
-
1090480-01559-00 GROMMETGROMMET
-
1159C-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
1297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1390183-05M02-00 NUT, SPRINGNUT, SPRING
-
1497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1559C-21721-00-P9 COVER, SIDE 2 (MLNM3)COVER, SIDE 2 (MLNM3)
-
1690520-10014-00 DAMPER, PLATEDAMPER, PLATE
-
1790520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
1890183-05042-00 NUT, SPRINGNUT, SPRING
-
1990480-01559-00 GROMMETGROMMET
-
2097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2190464-05003-00 CLAMPCLAMP
-
2259C-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
2397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2490183-05M02-00 NUT, SPRINGNUT, SPRING
-
2559C-2171A-00-P6 COVER, TOP (MLNM3)COVER, TOP (MLNM3)
-
2690269-06001-00 RIVETRIVET
-
274B5-2175N-00-00 COVER, FLANGECOVER, FLANGE
-
2890183-05M02-00 NUT, SPRINGNUT, SPRING
-
2959C-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
3090269-06001-00 RIVETRIVET
-
315GJ-2173B-60-00 EMBLEM 3DEMBLEM 3D
-
325GJ-2173B-60-00 EMBLEM 3DEMBLEM 3D
-
334KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
344B5-2473F-00-00 COVER, SEAT COMP.COVER, SEAT COMP.
-
3559C-2473T-00-00 LID 1LID 1
-
364B5-2477F-00-00 LEVER, SEATLEVER, SEAT
-
375GJ-24754-01-00 HOOK, SEATHOOK, SEAT
-
384HC-24758-00-00 SPRINGSPRING
-
3993603-50195-00 PIN, DOWELPIN, DOWEL
-
402PW-24217-00-00 COVERCOVER
-
4197702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
425GJ-24774-00-00 PINPIN
-
434B5-24762-00-00 REINFORCEMENTREINFORCEMENT
-
4498902-05010-00 SCREW, BINDSCREW, BIND
-
4590183-050A7-00 NUT, SPRINGNUT, SPRING
-
4659C-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
4759C-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
4897702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
4990183-040A0-00 NUT, SPRINGNUT, SPRING
-
5090183-05042-00 NUT, SPRINGNUT, SPRING
-
5190520-07001-00 DAMPER, PLATEDAMPER, PLATE
-
5297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5395802-06010-00 BOLT, FLANGEBOLT, FLANGE
