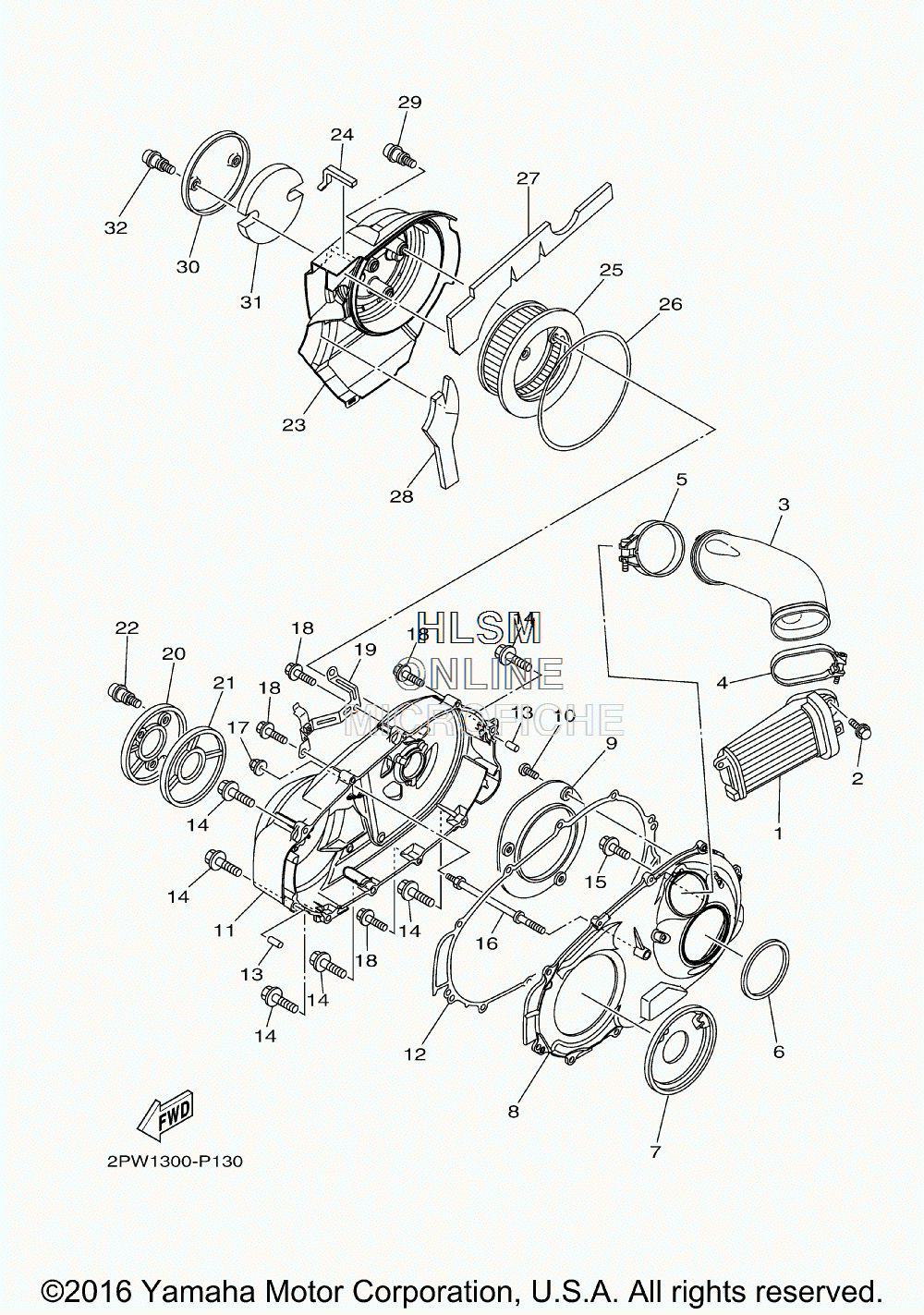

CRANKCASE COVER 2 для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-15407-00-00 ELEMENT 1ELEMENT 1
-
295822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
359C-15473-00-00 DUCT, AIRDUCT, AIR
-
490450-01001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
590450-74001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65GJ-15474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
715B-15191-00-00 PLATEPLATE
-
859C-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
95GJ-15113-00-00 PLATEPLATE
-
1092012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1159C-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
1259C-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1399480-08020-00 PINPIN
-
1495022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1595022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1659C-15768-00-00 BOLTBOLT
-
1790176-06017-00 NUT, CROWNNUT, CROWN
-
1895022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1959C-26279-00-00 GUIDE, CABLEGUIDE, CABLE
-
204B5-15492-00-00 COVERCOVER
-
215GJ-1542A-00-00 DAMPER 1DAMPER 1
-
222PW-15481-00-00 BOLT 1BOLT 1
-
2359C-15423-01-00 COVER 2COVER 2
-
2459C-15338-00-00 DAMPER 5DAMPER 5
-
2559C-15408-00-00 ELEMENT 2ELEMENT 2
-
2648U-14452-00-00 SEALSEAL
-
2759C-15326-10-00 DAMPER 2DAMPER 2
-
2859C-1542B-10-00 DAMPER 2DAMPER 2
-
292PW-15481-00-00 BOLT 1BOLT 1
-
305GJ-15499-10-00 PROTECTOR, COVERPROTECTOR, COVER
-
3159C-15789-00-00 DAMPERDAMPER
-
322PW-15481-00-00 BOLT 1BOLT 1
