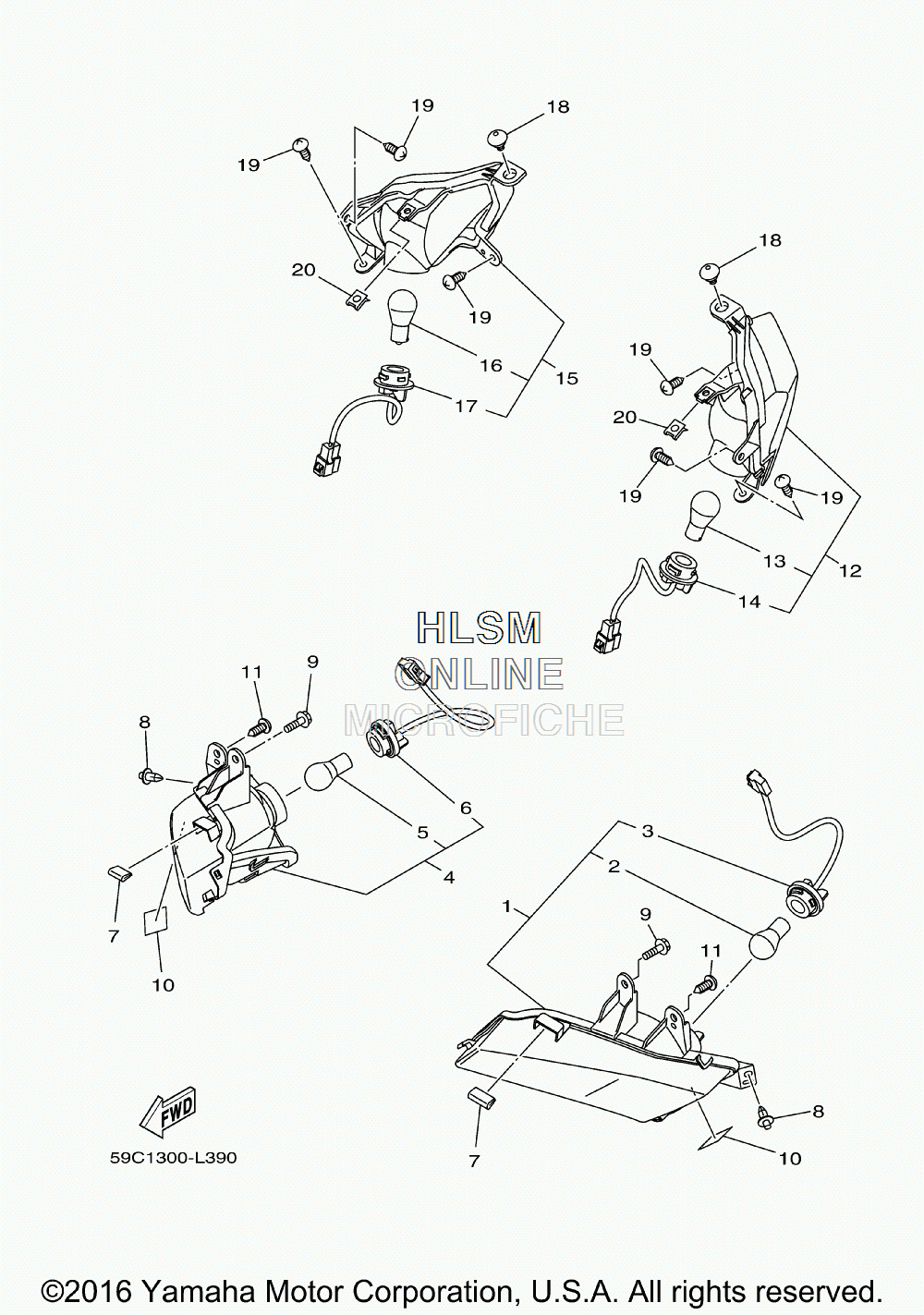

FLASHER LIGHT для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
259C-83311-10-00 ...BULB, FLASHER (12V P21/5W)...BULB, FLASHER (12V P21/5W)
-
359C-83336-20-00 ...CORD...CORD
-
459C-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
559C-83311-10-00 ...BULB, FLASHER (12V P21/5W)...BULB, FLASHER (12V P21/5W)
-
659C-83346-20-00 ...CORD...CORD
-
734B-24785-00-00 MOLD, SEATMOLD, SEAT
-
890269-06008-00 RIVETRIVET
-
990119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090520-02009-00 DAMPER, PLATEDAMPER, PLATE
-
1197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1259C-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
1359C-83311-00-00 ...BULB, FLASHER (12V PY21W)...BULB, FLASHER (12V PY21W)
-
1459C-83336-10-00 ...CORD...CORD
-
1559C-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
1659C-83311-00-00 ...BULB, FLASHER (12V PY21W)...BULB, FLASHER (12V PY21W)
-
1759C-83346-10-00 ...CORD...CORD
-
1890109-06249-00 BOLTBOLT
-
1997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2090183-05042-00 NUT, SPRINGNUT, SPRING
