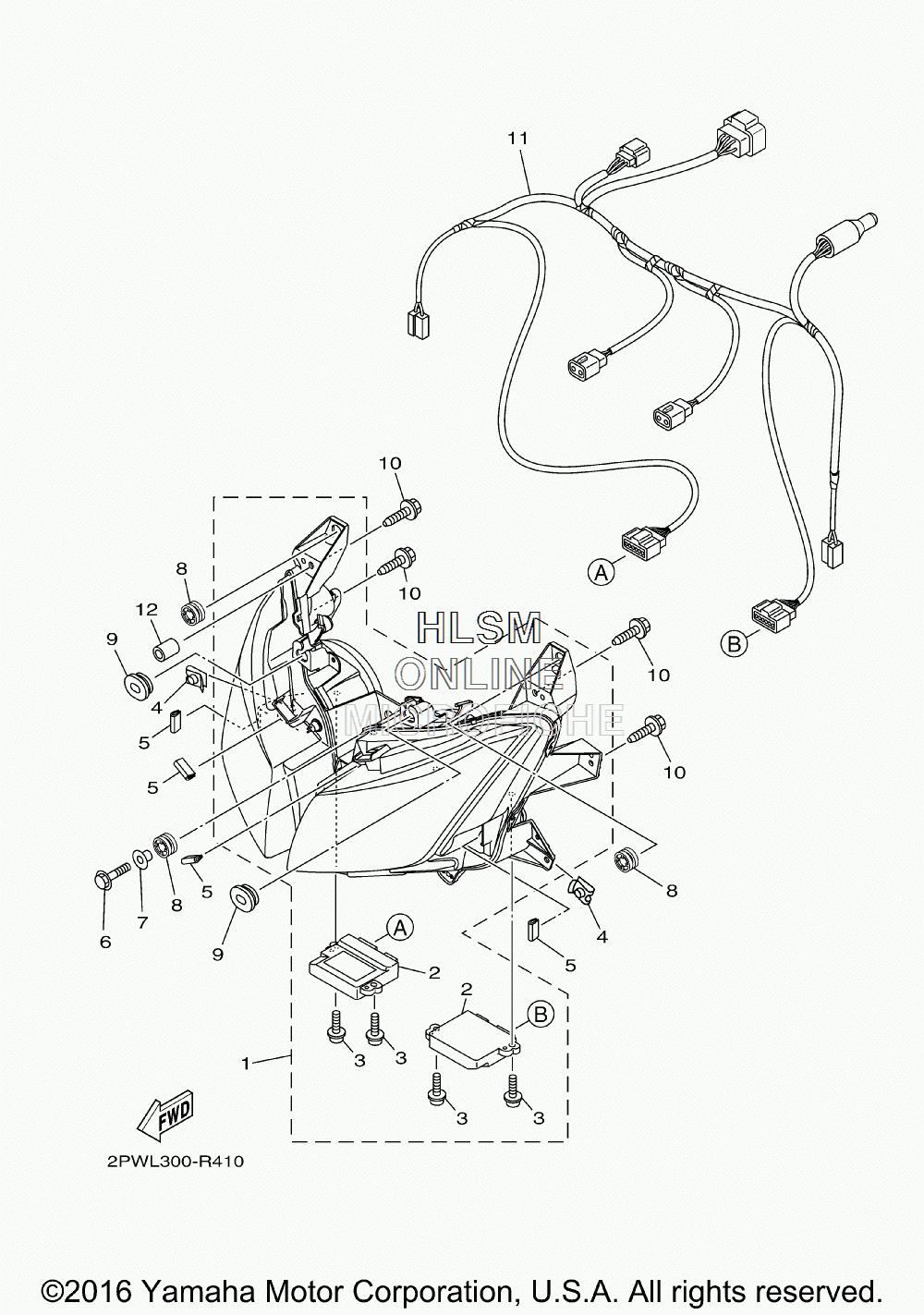

HEADLIGHT ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
12PW-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
22PP-85490-00-00 ...LIGHT CONTROL UNIT...LIGHT CONTROL UNIT
-
32PW-84192-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
490183-06069-00 NUT, SPRINGNUT, SPRING
-
534B-24785-00-00 MOLD, SEATMOLD, SEAT
-
695822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
790387-06161-00 COLLARCOLLAR
-
85PS-83513-00-00 DAMPERDAMPER
-
990480-01559-00 GROMMETGROMMET
-
1090119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
112PW-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
1290445-120J4-00 HOSE (L20)HOSE (L20)
Все узлы модели:
- AIR CLEANER ASSY.
- AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- CAMSHAFT W/ CHAIN
- CLUTCH 2
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKCASE COVER
- CRANKCASE COVER 2
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLE BAR MOUNT
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- • HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER
- SIDE COVER 2
- STAND FOOTREST 2
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- TRUNK - REAR
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
- WINDSHIELD
