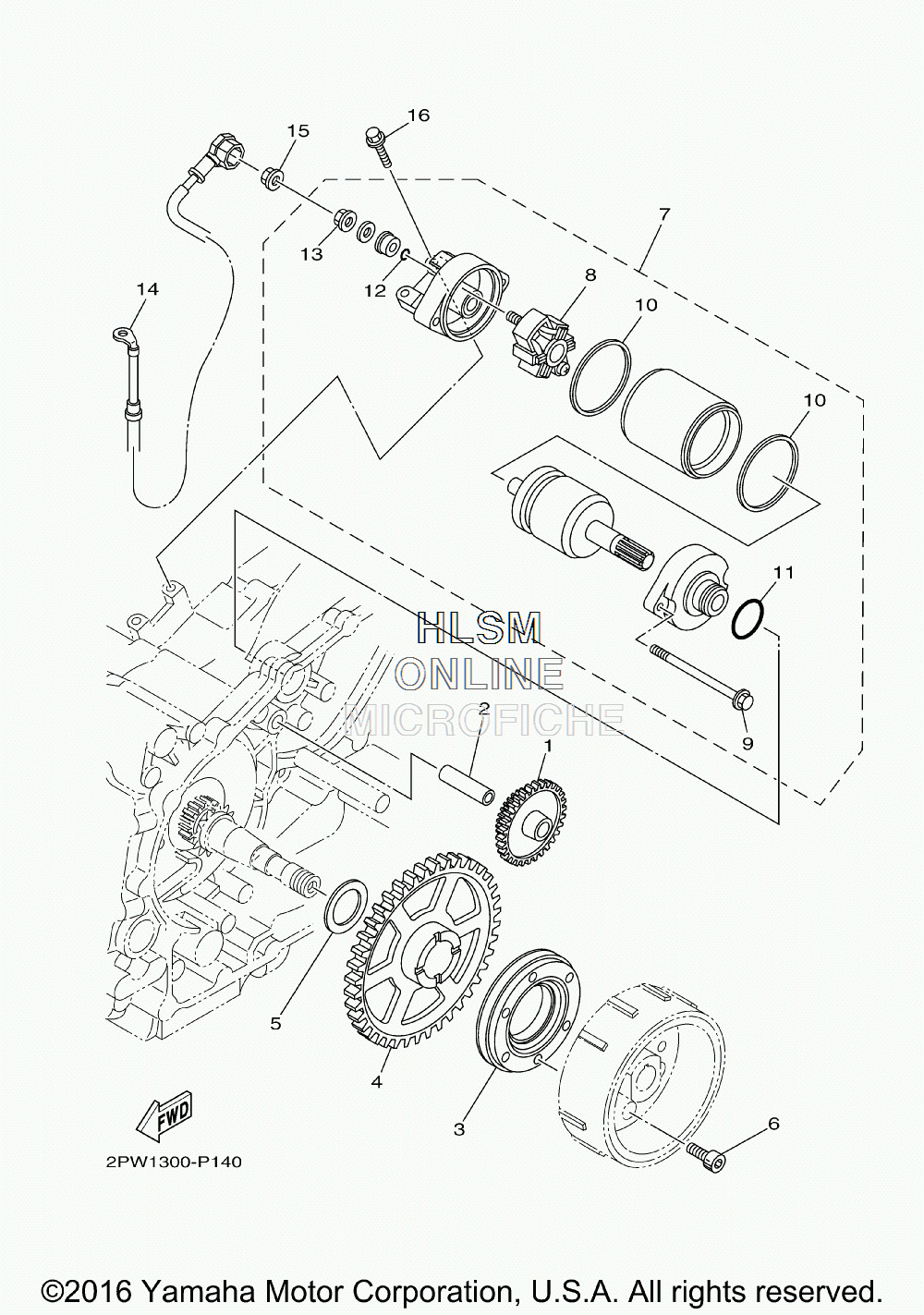

STARTER CLUTCH ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
122U-15512-00-00 GEAR, IDLER 1 (12T/50T)GEAR, IDLER 1 (12T/50T)
-
236Y-15521-01-00 SHAFT 1SHAFT 1
-
31WS-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
45GJ-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
590201-25290-00 WASHER, PLATEWASHER, PLATE
-
690110-08080-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74B5-81890-00-00 MOTOR ASSYMOTOR ASSY
-
84B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
94B5-81826-00-00 ...BOLT...BOLT
-
104B5-81844-00-00 ...GASKET...GASKET
-
111FK-81847-00-00 ...O-RING...O-RING
-
123TB-81847-00-00 ...O-RING...O-RING
-
134XV-8182A-00-00 ...NUT...NUT
-
1459C-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
154XV-8182A-00-00 NUTNUT
-
1695812-06025-00 BOLT, FLANGEBOLT, FLANGE
