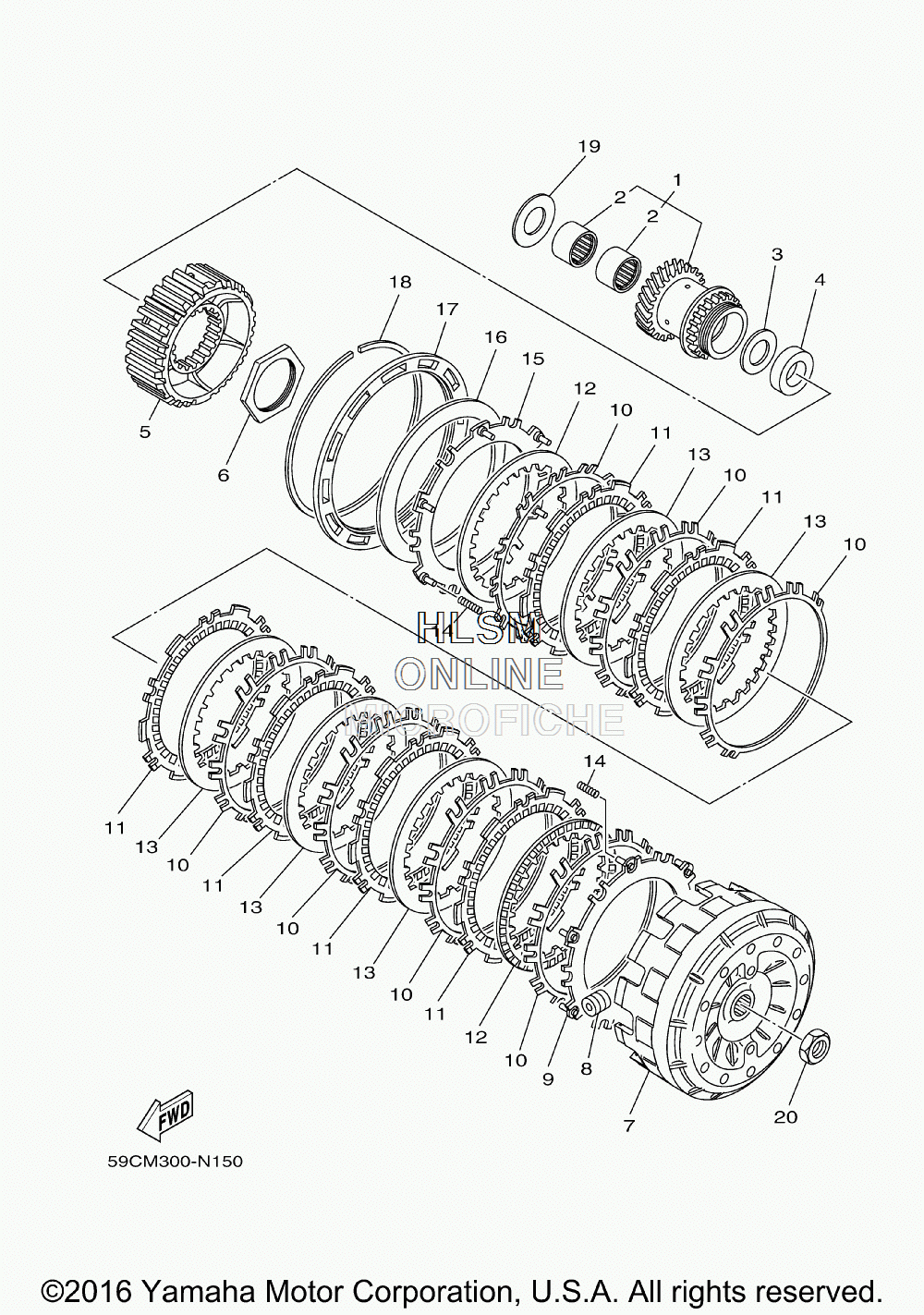

CLUTCH ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
15VU-16110-00-00 PRIMARY DRIVE GEAR ASSYPRIMARY DRIVE GEAR ASSY
-
293317-32493-00 ...BEARING...BEARING
-
390201-244A9-00 WASHER, PLATE (2.05T)WASHER, PLATE (2.05T)
-
490387-20018-00 COLLARCOLLAR
-
559C-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
690170-48003-00 NUTNUT
-
759C-16511-10-00 HOUSING, CLUTCHHOUSING, CLUTCH
-
85GJ-16540-00-00 ROLLER WEIGHT ASSYROLLER WEIGHT ASSY
-
95GJ-16520-00-00 PLATE, THRUST WEIGHTPLATE, THRUST WEIGHT
-
105GJ-16533-00-00 SPRING, CLUTCHSPRING, CLUTCH
-
1159C-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
1259C-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
1359C-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
1459C-16539-00-00 SPRINGSPRING
-
155GJ-16550-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
165GJ-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
175GJ-16537-10-00 PLATE, SPRING STOPPER (OPT) (HOLE 1)PLATE, SPRING STOPPER (OPT) (HOLE 1)
-
175GJ-16537-00-00 PLATE, SPRING STOPPER (OPT) (HOLE 0)PLATE, SPRING STOPPER (OPT) (HOLE 0)
-
175GJ-16537-30-00 PLATE, SPRING STOPPER (OPT) (HOLE 3)PLATE, SPRING STOPPER (OPT) (HOLE 3)
-
175GJ-16537-20-00 PLATE, SPRING STOPPER (OPT) (HOLE 2)PLATE, SPRING STOPPER (OPT) (HOLE 2)
-
185GJ-16529-00-00 CLIPCLIP
-
1990201-24017-00 WASHER, PLATEWASHER, PLATE
-
2090170-16326-00 NUTNUT
