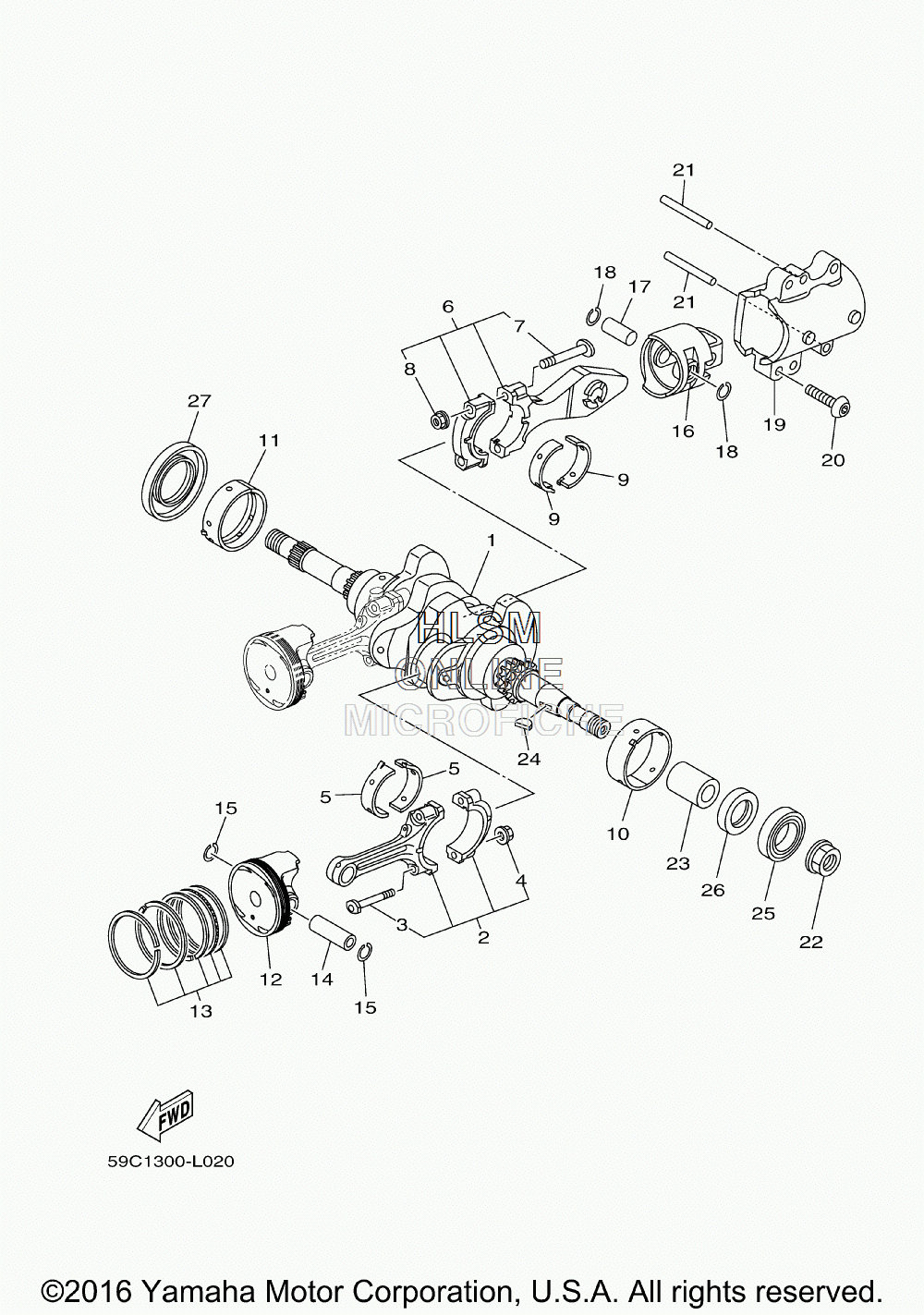

CRANKSHAFT W/ PISTON ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
259C-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35VU-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-07652-00 ...NUT...NUT
-
55GJ-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
55GJ-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
55GJ-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
55GJ-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
659C-11660-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
74X7-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
890179-09379-00 ...NUT...NUT
-
95GJ-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
95GJ-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
95GJ-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
95GJ-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
105GJ-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
105GJ-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
105GJ-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
-
105GJ-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
-
105GJ-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
105GJ-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
115GJ-11417-30-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 2 (OPT) (GREEN)
-
115GJ-11417-A0-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 2 (OPT) (WHITE)
-
115GJ-11417-20-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 2 (OPT) (BROWN)
-
115GJ-11417-40-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 2 (OPT) (YELLOW)
-
115GJ-11417-10-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 2 (OPT) (BLACK)
-
115GJ-11417-00-00 PLANE BEARING, CRANKSHAFT 2 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 2 (OPT) (BLUE)
-
1259C-11631-00-00 PISTON (STD)PISTON (STD)
-
1339P-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
145SL-11633-00-00 PIN, PISTONPIN, PISTON
-
1593450-17129-00 CIRCLIPCIRCLIP
-
1659C-11642-00-A0 PISTON 2 (STD)PISTON 2 (STD)
-
175GJ-11455-10-00 SHAFT 1SHAFT 1
-
1893450-16068-00 CIRCLIPCIRCLIP
-
1959C-11312-00-00 SLEEVE, CYLINDERSLEEVE, CYLINDER
-
2090111-10026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2193608-60001-00 PIN, DOWELPIN, DOWEL
-
2290179-18007-00 NUTNUT
-
2390387-18001-00 COLLARCOLLAR
-
2490280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
2593306-90602-00 BEARINGBEARING
-
2693101-30001-00 OIL SEALOIL SEAL
-
2793102-44008-00 OIL SEALOIL SEAL
