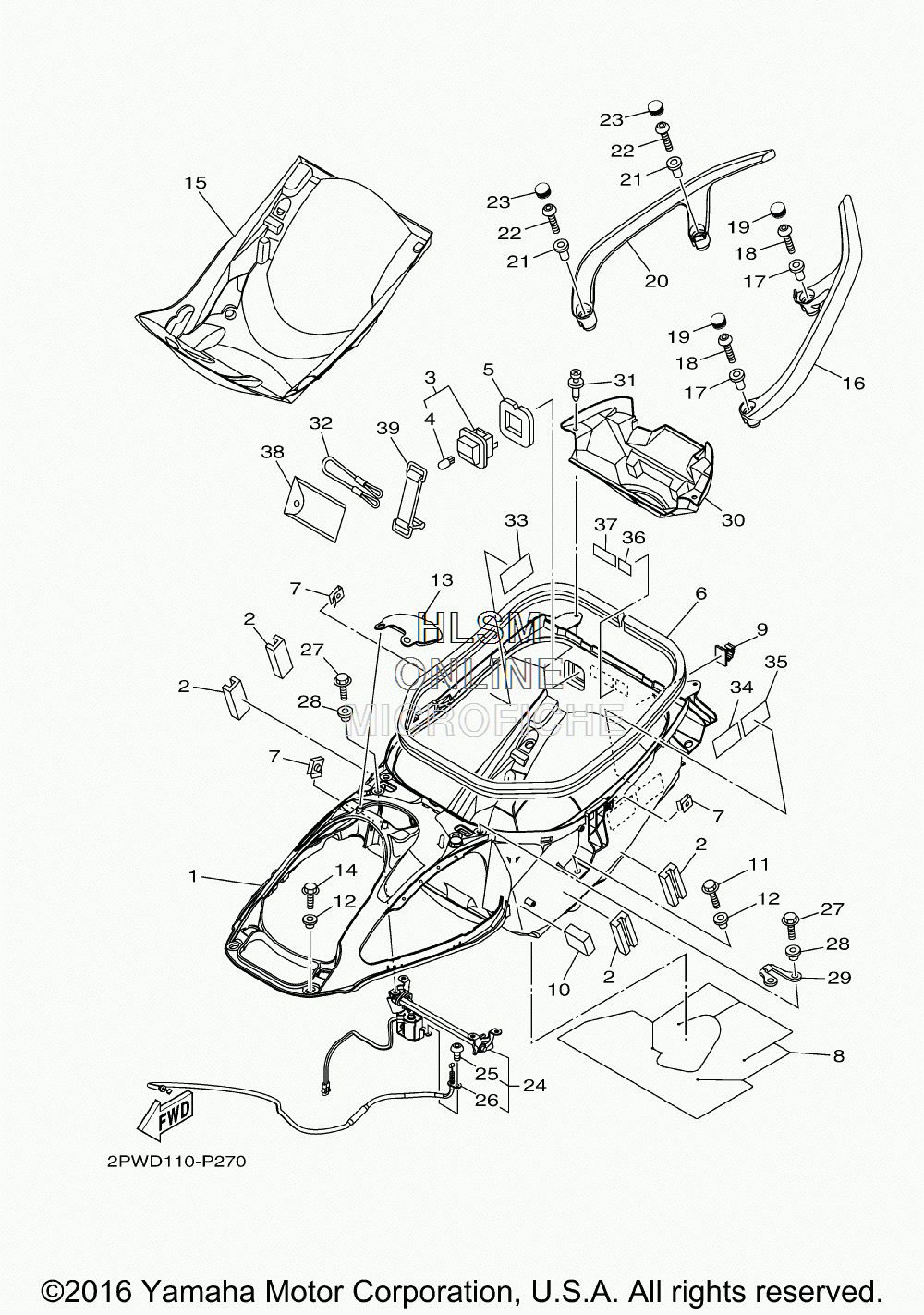

TRUNK - REAR для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-2473R-01-00 BOX 1BOX 1
-
24B5-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
34HC-84770-00-00 LIGHT, ACCESSORYLIGHT, ACCESSORY
-
44HC-84347-00-00 ...BULB (12V-2W)...BULB (12V-2W)
-
55GJ-2839M-00-00 SEAL, BOX 2SEAL, BOX 2
-
659C-2173M-00-00 SEAL 3SEAL 3
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
859C-28217-00-00 DAMPER 1DAMPER 1
-
990464-13185-00 CLAMPCLAMP
-
104C8-28416-00-00 DAMPER 2DAMPER 2
-
1195822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-06170-00 COLLARCOLLAR
-
134B5-2482H-00-00 CAPCAP
-
1495022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1559C-24747-01-00 DAMPER, SEATDAMPER, SEAT
-
164B5-2474A-01-PF ASSIST, GRIP (MLNM3)ASSIST, GRIP (MLNM3)
-
1790387-08068-00 COLLARCOLLAR
-
1895022-08035-00 BOLT, FLANGEBOLT, FLANGE
-
194B5-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
204B5-2474W-01-PE ASSIST, GRIP 2 (MLNM3)ASSIST, GRIP 2 (MLNM3)
-
2190387-08068-00 COLLARCOLLAR
-
2295022-08035-00 BOLT, FLANGEBOLT, FLANGE
-
234B5-2476U-00-00 PROTECTOR 1PROTECTOR 1
-
242PW-24780-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
2590110-05003-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
262PW-2478D-00-00 ...SEAT LOCK CABLE ASSY...SEAT LOCK CABLE ASSY
-
2795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2890387-06170-00 COLLARCOLLAR
-
2959C-2475K-00-00 BRACKET 3BRACKET 3
-
302PW-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3190269-06081-00 RIVETRIVET
-
324B5-21398-10-00 HANGER, HELMETHANGER, HELMET
-
335VU-21668-00-00 LABEL, TIRELABEL, TIRE
-
344B5-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
3534B-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
363LD-24877-A0-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
-
373JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
382PW-28100-10-00 TOOL KITTOOL KIT
-
393TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
