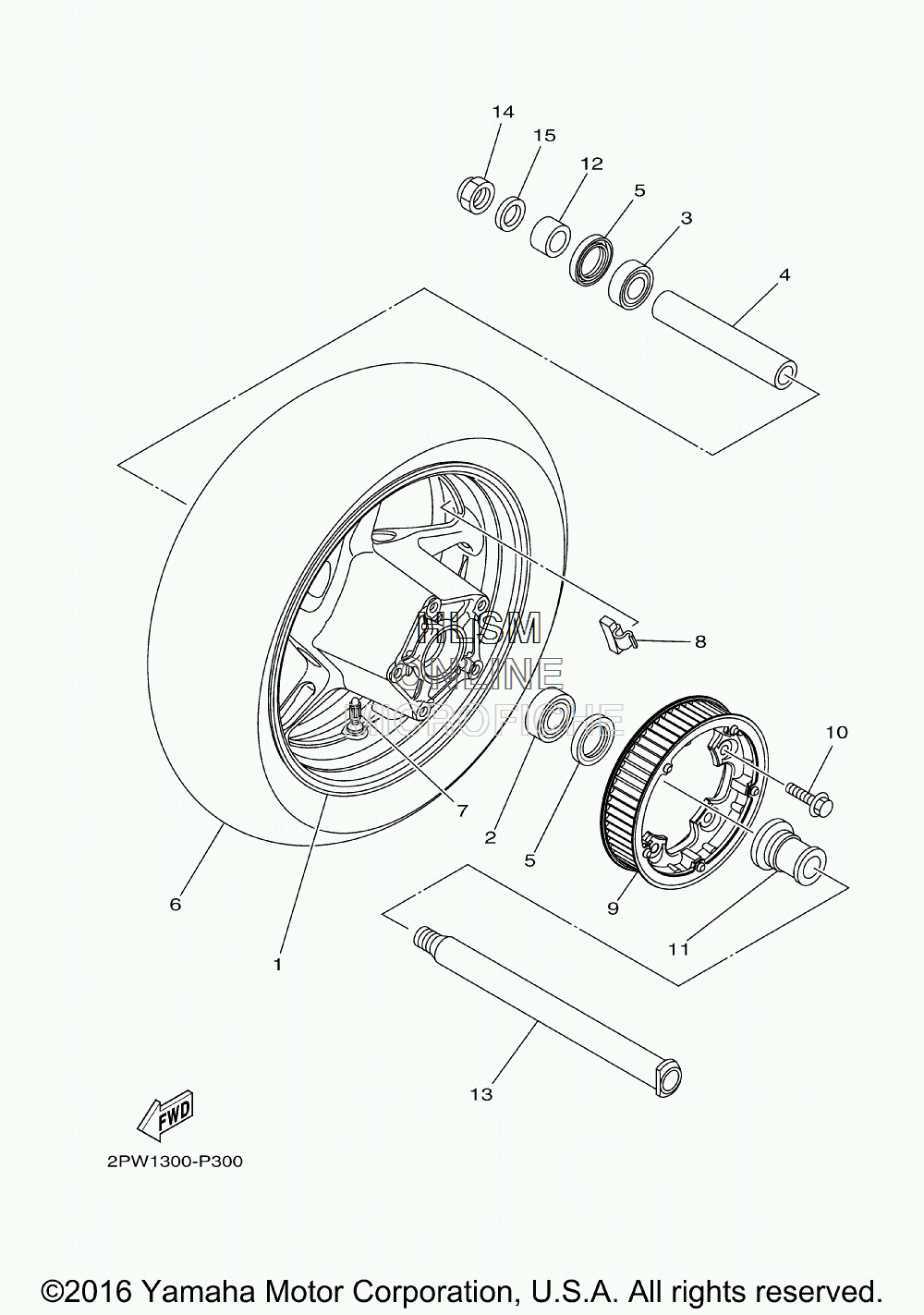

WHEEL - REAR для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
12PW-25338-00-P1 CAST WHEEL, REAR (MBL2 FOR MLNM3)CAST WHEEL, REAR (MBL2 FOR MLNM3)
-
293306-205B5-00 BEARINGBEARING
-
393306-07809-00 BEARINGBEARING
-
459C-25317-01-00 SPACER, BEARINGSPACER, BEARING
-
593106-40013-00 OIL SEALOIL SEAL
-
694116-15015-00 TIRE (160/60R15M/C 67H GPR-100) (DUNLOP)TIRE (160/60R15M/C 67H GPR-100) (DUNLOP)
-
793900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
85MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
85MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
85MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
92PW-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
1090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1159C-2530S-00-00 COLLAR ASSYCOLLAR ASSY
-
1259C-25377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
132PW-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
1490185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590201-25020-00 WASHER, PLATEWASHER, PLATE
