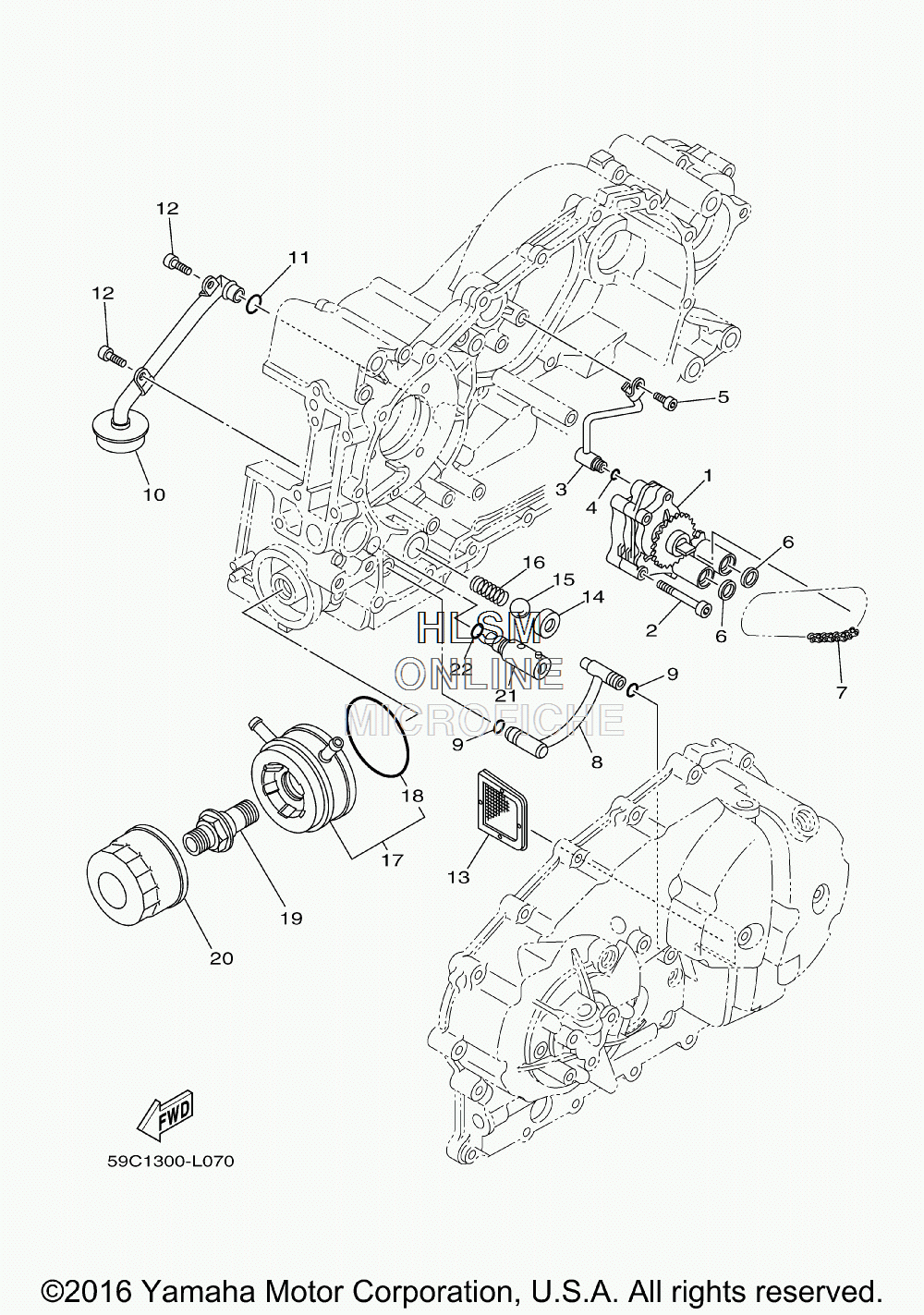

OIL PUMP для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
292012-06050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
35GJ-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
493210-06422-00 O-RINGO-RING
-
590110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
65GJ-13475-00-00 GASKETGASKET
-
794580-25058-00 CHAIN (DID25 58L)CHAIN (DID25 58L)
-
85GJ-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
993210-09525-00 O-RINGO-RING
-
105GJ-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
1193210-14579-00 O-RINGO-RING
-
1290110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1322F-13411-01-00 STRAINER, OILSTRAINER, OIL
-
143LD-13113-00-00 SEAT, CHECK BALLSEAT, CHECK BALL
-
1593505-08030-00 BALLBALL
-
1690501-104F9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
175GJ-13470-10-00 OIL COOLER ASSYOIL COOLER ASSY
-
185JW-13473-00-00 ...O-RING...O-RING
-
1990401-20170-00 BOLT, UNIONBOLT, UNION
-
205DM-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
214G0-13490-01-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
2293210-10096-00 O-RINGO-RING
