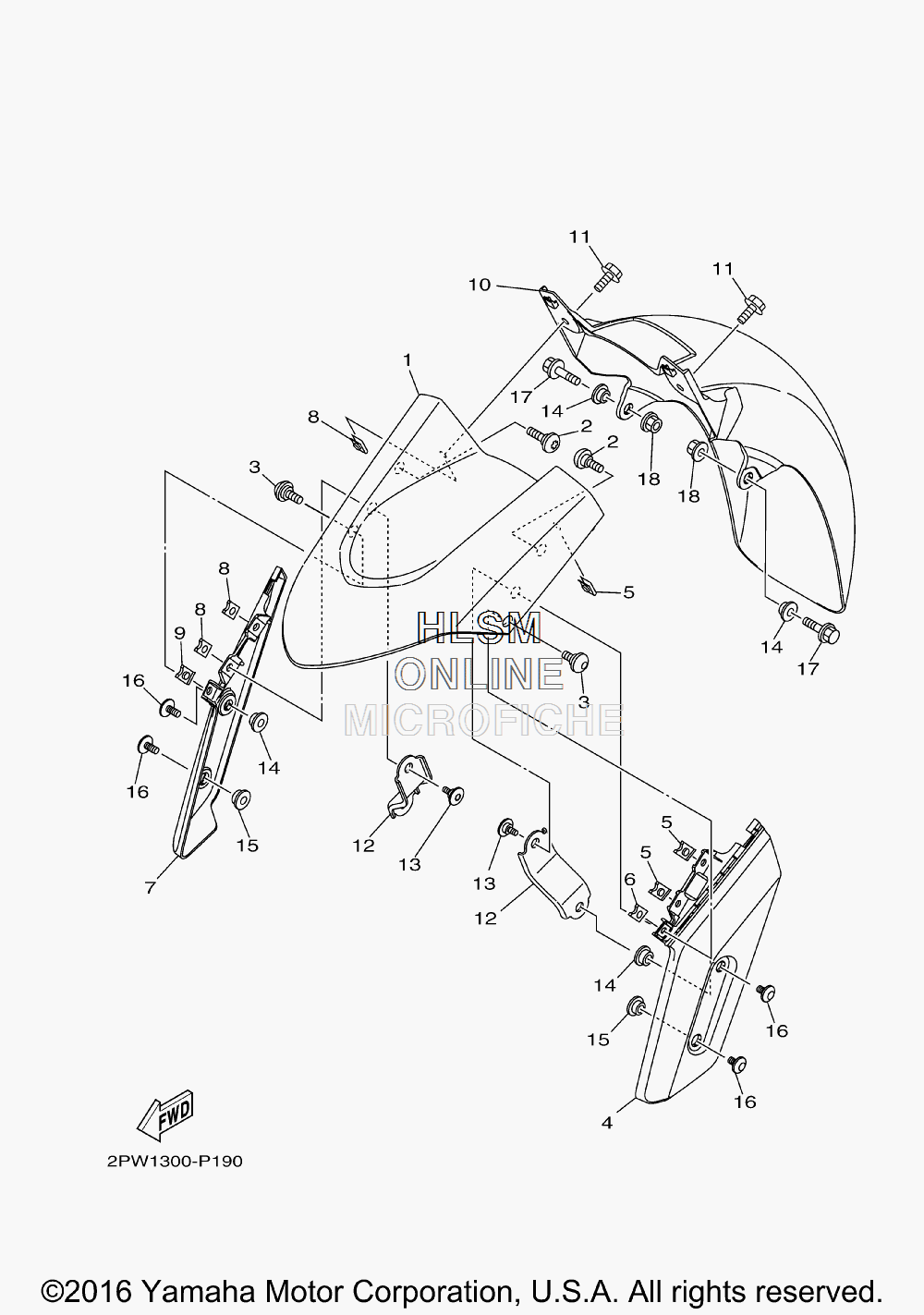

FENDER - FRONT / REAR для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
12PW-21511-00-P4 FENDER, FRONT (MLNM3)FENDER, FRONT (MLNM3)
-
290149-06117-00 SCREWSCREW
-
390111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
42PW-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
590183-060A6-00 NUT, SPRINGNUT, SPRING
-
690183-050A6-00 NUT, SPRINGNUT, SPRING
-
72PW-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
890183-060A6-00 NUT, SPRINGNUT, SPRING
-
990183-050A6-00 NUT, SPRINGNUT, SPRING
-
102PW-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
1190119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
122PW-21586-00-00 BRACKETBRACKET
-
1390154-06024-00 SCREW, BINDINGSCREW, BINDING
-
1490387-06153-00 COLLARCOLLAR
-
1590387-08079-00 COLLARCOLLAR
-
1690111-06140-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1795822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1895702-06500-00 NUT, FLANGENUT, FLANGE
