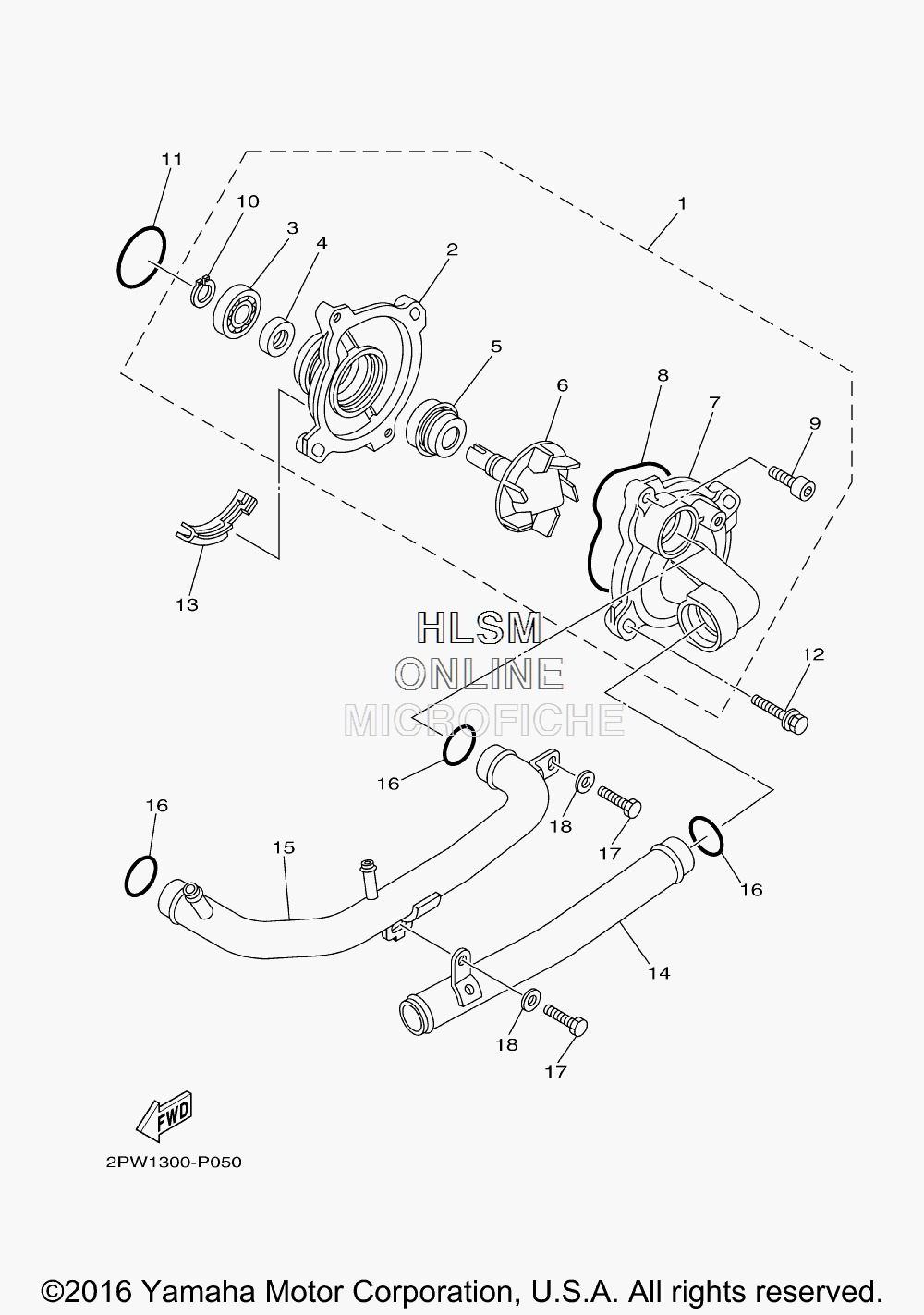

WATER PUMP ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-12420-10-00 WATER PUMP ASSYWATER PUMP ASSY
-
25VU-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
393306-00106-00 ...BEARING...BEARING
-
493102-12442-00 ...OIL SEAL...OIL SEAL
-
55VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
620S-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
75GJ-12422-02-00 ...COVER, HOUSING...COVER, HOUSING
-
81WG-12439-00-00 ...O-RING...O-RING
-
991312-06020-00 ...BOLT...BOLT
-
1099009-12400-00 ...CIRCLIP...CIRCLIP
-
1193210-33133-00 O-RINGO-RING
-
1290119-06M83-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1359C-12437-00-00 STOPPERSTOPPER
-
144B5-12481-00-00 PIPE 1PIPE 1
-
1559C-12482-00-00 PIPE 2PIPE 2
-
1693210-21190-00 O-RINGO-RING
-
1797022-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1892902-06600-00 WASHER, PLATEWASHER, PLATE
