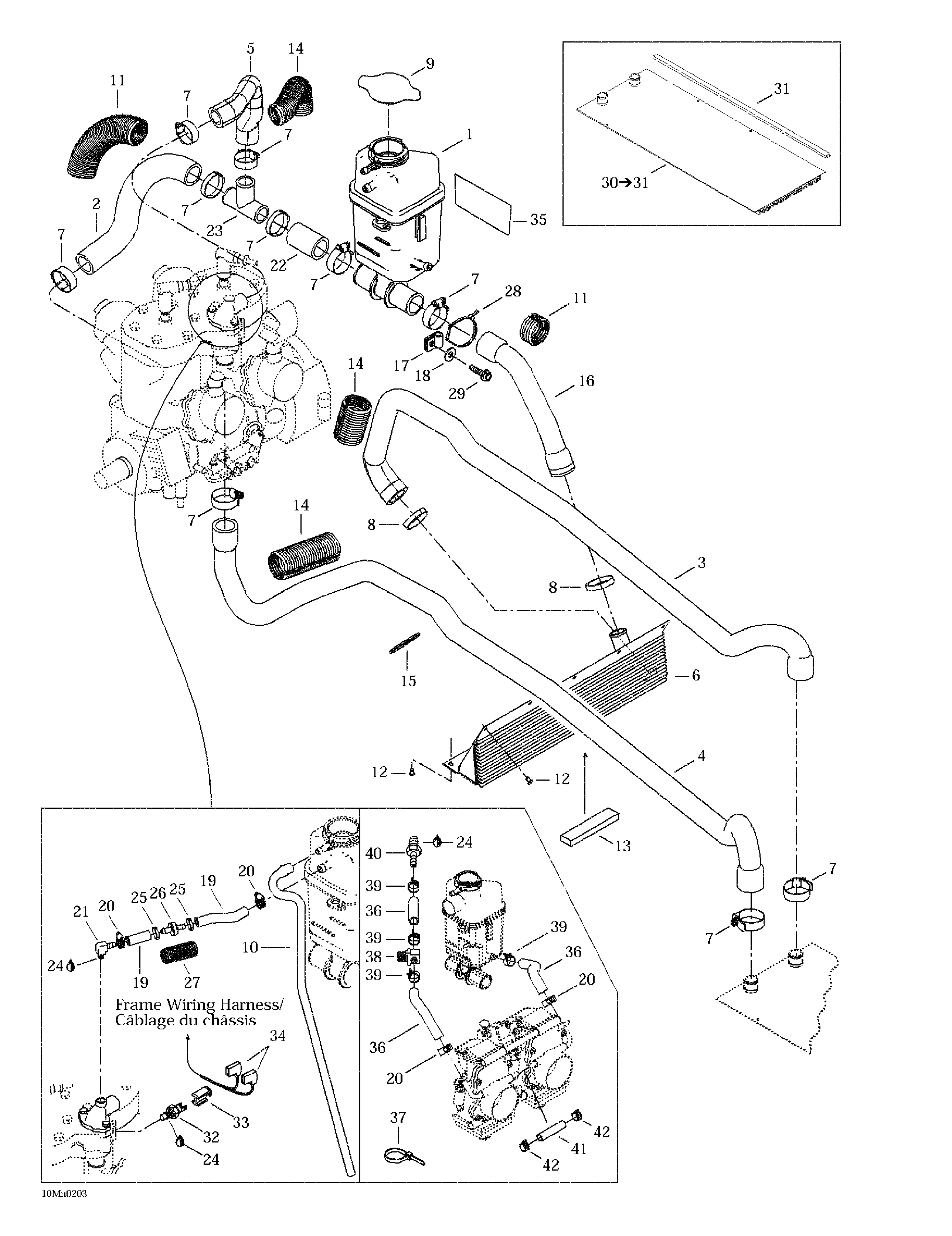

01- Cooling System для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1509000167 Tank CoolantTank Coolant
-
2509000141 Engine Inlet HoseEngine Inlet Hose
-
3509000003 Radiator Inlet HoseRadiator Inlet Hose
-
4509000145 Radiator Outlet HoseRadiator Outlet Hose
-
5509000142 HoseHose
-
6509000150 Front RadiatorFront Radiator
-
7408800400 Tridon ClampTridon Clamp
-
8509000045 Oetiker ClampOetiker Clamp
-
9414684700 Pressure CapPressure Cap
-
10415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
11415084700 Protective ShieldProtective Shield
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293200003 SealSeal
-
14409902200 TubingTubing
-
15293750008 Tie Rap 350 mmTie Rap 350 mm
-
16509000144 Radiator Outlet HoseRadiator Outlet Hose
-
17415052400 AttacheAttache
-
18391301600 WasherWasher
-
19509000093 Hose 8 mmHose 8 mm
-
20293650128 Tridon ClampTridon Clamp
-
21293700020 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
22509000143 HoseHose
-
23414619900 T-FittingT-Fitting
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25293650053 Crimp ClampCrimp Clamp
-
26509000153 Check ValveCheck Valve
-
27415080000 Tubing 16 mmTubing 16 mm
-
28509000165 Tie RapTie Rap
-
29210252040 Hex. Flanged Screw M5Hex. Flanged Screw M5
-
30518322903 Rear Radiator. Includes 30 - 31.Rear Radiator. Includes 30 - 31.
-
518322907 Rear Radiator (HM, HMX). Summit 800.Rear Radiator (HM, HMX). Summit 800.
-
31518322360 Radiator ProtectorRadiator Protector
-
32512047000 Temperature SensorTemperature Sensor
-
33515175297 Connector PlugConnector Plug
-
34409010300 Female TerminalFemale Terminal
-
35514053399 Reflective SheetReflective Sheet
-
36509000093 Hose 8 mmHose 8 mm
-
37414115200 Tie Rap (With >)Tie Rap (With >)
-
38512059324 Valve 5/16''Valve 5/16''
-
39414655700 Spring ClampSpring Clamp
-
40293710082 Straight FittingStraight Fitting
-
41404161956 HoseHose
-
42404161957 ClipClip
