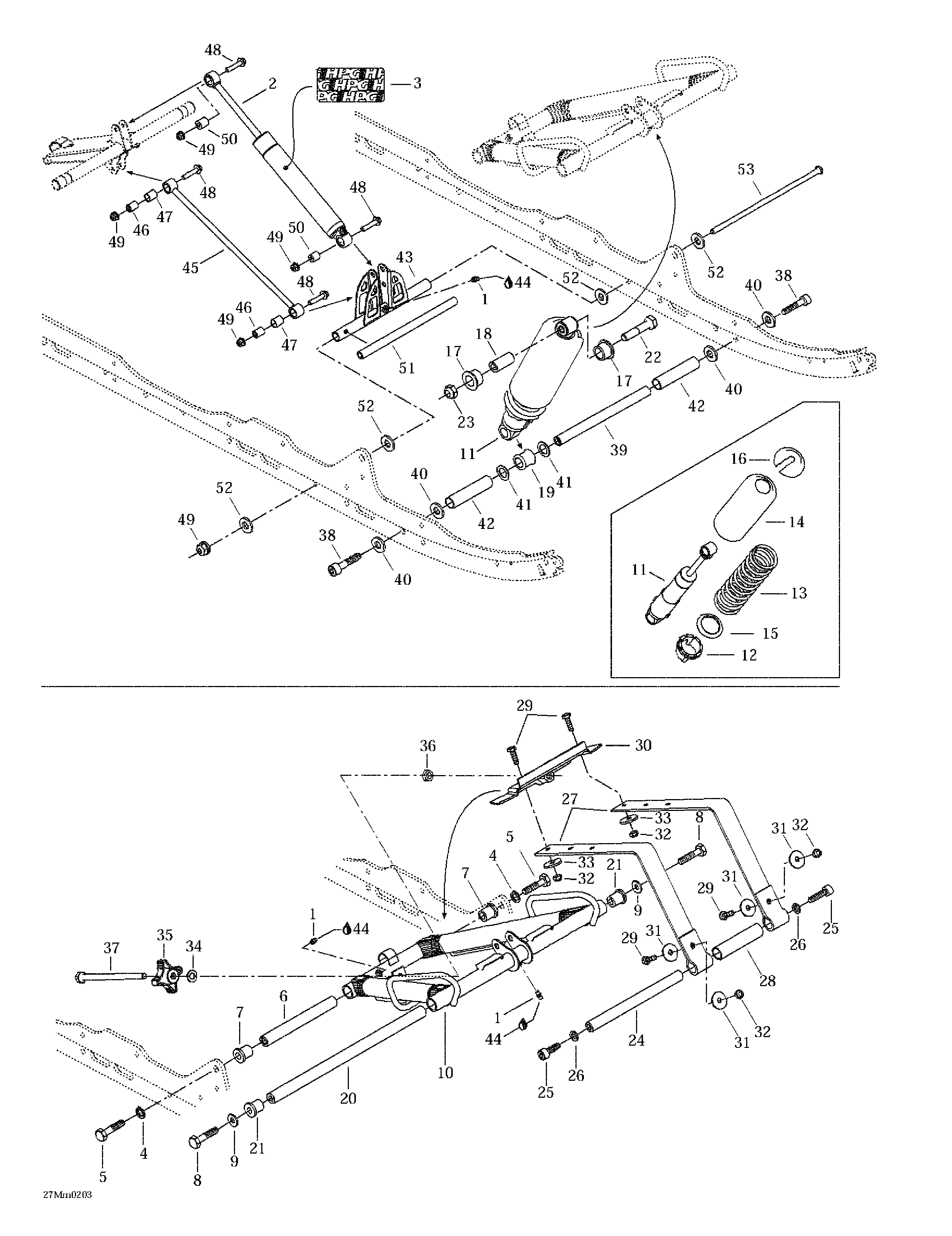

08- Front Arm And Shock для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1408200700 Grease Fitting M6Grease Fitting M6
-
2503189897 Rear ShockRear Shock
-
503189895 Rear Shock (X, HMX). Summit 800.Rear Shock (X, HMX). Summit 800.
-
503189669 Rear Shock. (Summit 600 R (Sport)) (Europe) Summit 600.Rear Shock. (Summit 600 R (Sport)) (Europe) Summit 600.
-
503189896 Rear Shock. (Summit 800 R (X)) (Europe) Summit 800.Rear Shock. (Summit 800 R (X)) (Europe) Summit 800.
-
3516000182 Decal >Decal >
-
4503189276 WasherWasher
-
5207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
6503189313 ShaftShaft
-
7503189323 CushionCushion
-
8207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
9732900049 WasherWasher
-
10503189797 Front ArmFront Arm
-
11503189893 Center ShockCenter Shock
-
503189891 Center Shock (X, HMX). Summit 800.Center Shock (X, HMX). Summit 800.
-
503189178 Center Shock (Europe). (Summit 600 R (Sport)) (Europe) Summit 600.Center Shock (Europe). (Summit 600 R (Sport)) (Europe) Summit 600.
-
503189892 Center Shock. (Summit 800 R (X)) (Europe) Summit 800.Center Shock. (Summit 800 R (X)) (Europe) Summit 800.
-
12503183700 CamCam
-
505070150 Cam 45 Deg. (X, HMX). Summit 800.Cam 45 Deg. (X, HMX). Summit 800.
-
503183700 Cam (Summit 600 R (Sport)) (Europe). Summit 600.Cam (Summit 600 R (Sport)) (Europe). Summit 600.
-
505070150 Cam 45 Deg. (Summit 800 R (X)) (Europe). Summit 800.Cam 45 Deg. (Summit 800 R (X)) (Europe). Summit 800.
-
13415070500 SpringSpring
-
415070500 Spring (X, HMX). Summit 800.Spring (X, HMX). Summit 800.
-
503189325 Spring (Summit 600 R (Sport)) (Europe). Summit 600.Spring (Summit 600 R (Sport)) (Europe). Summit 600.
-
503189686 Spring (Summit 800 R (X)) (Europe). Summit 800.Spring (Summit 800 R (X)) (Europe). Summit 800.
-
14503188930 ProtectorProtector
-
15517187500 Spring GuideSpring Guide
-
517184300 Spring Guide (X, HMX). Summit 800.Spring Guide (X, HMX). Summit 800.
-
503187500 Spring Guide. (Summit 600 R (Sport)) (Europe) Summit 600.Spring Guide. (Summit 600 R (Sport)) (Europe) Summit 600.
-
503184300 Spring Guide. (Summit 800 R (X)) (Europe) Summit 800.Spring Guide. (Summit 800 R (X)) (Europe) Summit 800.
-
16503140600 Spring StopperSpring Stopper
-
17503189117 CushionCushion
-
18503189282 BushingBushing
-
19503189271 CushionCushion
-
20503188938 ShaftShaft
-
21503189324 BushingBushing
-
22207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
23233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
24503189562 AxleAxle
-
25205503544 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
26503189564 WasherWasher
-
27503189450 Stopper StrapStopper Strap
-
28503189936 SpacerSpacer
-
29207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
30503189806 Belt BracketBelt Bracket
-
31224081301 Flat WasherFlat Washer
-
32232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
33503183100 WasherWasher
-
34503183800 WasherWasher
-
35572034000 Adjuster KnobAdjuster Knob
-
36232006414 Hex. Nut M10Hex. Nut M10
-
37250000062 Long Bolt M10Long Bolt M10
-
38205523544 Socket Head Screw M12 x 35 (Scotch Grip)Socket Head Screw M12 x 35 (Scotch Grip)
-
39503189272 Center Shock ShaftCenter Shock Shaft
-
40503189276 WasherWasher
-
41503189273 WasherWasher
-
42503189274 SpacerSpacer
-
43503189545 Pivot ArmPivot Arm
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
45503189547 Throttle RodThrottle Rod
-
46503189133 Rod AxleRod Axle
-
47503189625 CushionCushion
-
48207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
49250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
50414936000 CushionCushion
-
51503189156 Axle PivotAxle Pivot
-
52503189157 WasherWasher
-
53732601198 Long Bolt M8Long Bolt M8
