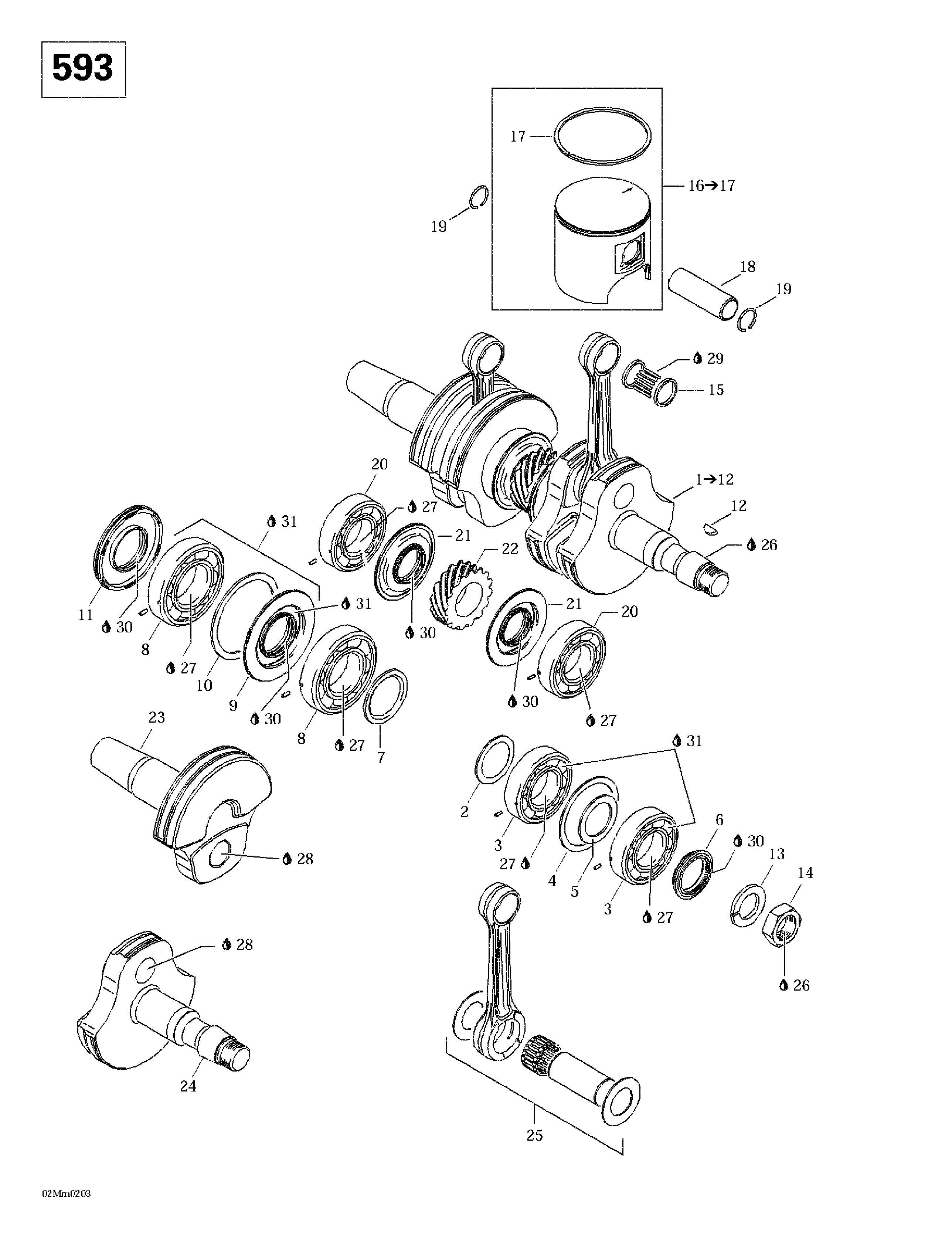

01- Crankshaft And Pistons (593) для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1420888751 Crankshaft Ass'y. Includes 1 - 12. Summit 600.Crankshaft Ass'y. Includes 1 - 12. Summit 600.
-
2420827445 Distance Ring. Summit 600.Distance Ring. Summit 600.
-
3420832590 Ball Bearing 6206. Summit 600.Ball Bearing 6206. Summit 600.
-
4420827050 Retaining Disk. Summit 600.Retaining Disk. Summit 600.
-
5420427684 Adjustment Washer. Summit 600.Adjustment Washer. Summit 600.
-
6420931790 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
7420827760 Distance Ring. Summit 600.Distance Ring. Summit 600.
-
8420832575 Ball Bearing 6207. Summit 600.Ball Bearing 6207. Summit 600.
-
9420931455 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
10420927710 Retaining Disk. Summit 600.Retaining Disk. Summit 600.
-
11290831952 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
12420246015 Woodfuff Key. Summit 600.Woodfuff Key. Summit 600.
-
13420945759 Lock Washer 22 mm. Summit 600.Lock Washer 22 mm. Summit 600.
-
14420842230 Hex. Nut M22. Summit 600.Hex. Nut M22. Summit 600.
-
15420832425 Needle Bearing. Summit 600.Needle Bearing. Summit 600.
-
16420889170 Piston Ass'y (75.88 mm). Includes 16 - 17. Summit 600.Piston Ass'y (75.88 mm). Includes 16 - 17. Summit 600.
-
420889171 Oversize Piston Ass'y (76.13 mm). Summit 600.Oversize Piston Ass'y (76.13 mm). Summit 600.
-
17420815155 Semi-Trapez Ring (76.00 mm). Summit 600.Semi-Trapez Ring (76.00 mm). Summit 600.
-
420815156 Oversize Semi-Trapez Ring (76.25 mm). Summit 600.Oversize Semi-Trapez Ring (76.25 mm). Summit 600.
-
18420916410 Gudgeon Pin. Summit 600.Gudgeon Pin. Summit 600.
-
19420845106 Piston Circlip. Summit 600.Piston Circlip. Summit 600.
-
20420832590 Ball Bearing 6206. Summit 600.Ball Bearing 6206. Summit 600.
-
21420931940 Oil Seal. Summit 600.Oil Seal. Summit 600.
-
22420834350 Central Gear (15 Teeth). Summit 600.Central Gear (15 Teeth). Summit 600.
-
23420818664 Crankshaft (PTO side). Summit 600.Crankshaft (PTO side). Summit 600.
-
24420818693 Crankshaft (MAG side). Summit 600.Crankshaft (MAG side). Summit 600.
-
25420888753 Rod Repair Kit (MAG). Summit 600.Rod Repair Kit (MAG). Summit 600.
-
420888754 Rod Repair Kit (PTO). Summit 600.Rod Repair Kit (PTO). Summit 600.
-
26293800060 Loctite 243, 10 ml. Summit 600.Loctite 243, 10 ml. Summit 600.
-
27293800070 Loctite 767, Antiseize Lubricant, 8 oz. Summit 600.Loctite 767, Antiseize Lubricant, 8 oz. Summit 600.
-
28413711400 Loctite 648, 10 ml. Summit 600.Loctite 648, 10 ml. Summit 600.
-
29413802900 Injection Oil (12 x 1 Liter). Summit 600.Injection Oil (12 x 1 Liter). Summit 600.
-
30420899271 Petamo Grease, GHY133N, 400 g. Summit 600.Petamo Grease, GHY133N, 400 g. Summit 600.
-
31293550021 Isoflex Grease, 45 g. Summit 600.Isoflex Grease, 45 g. Summit 600.
