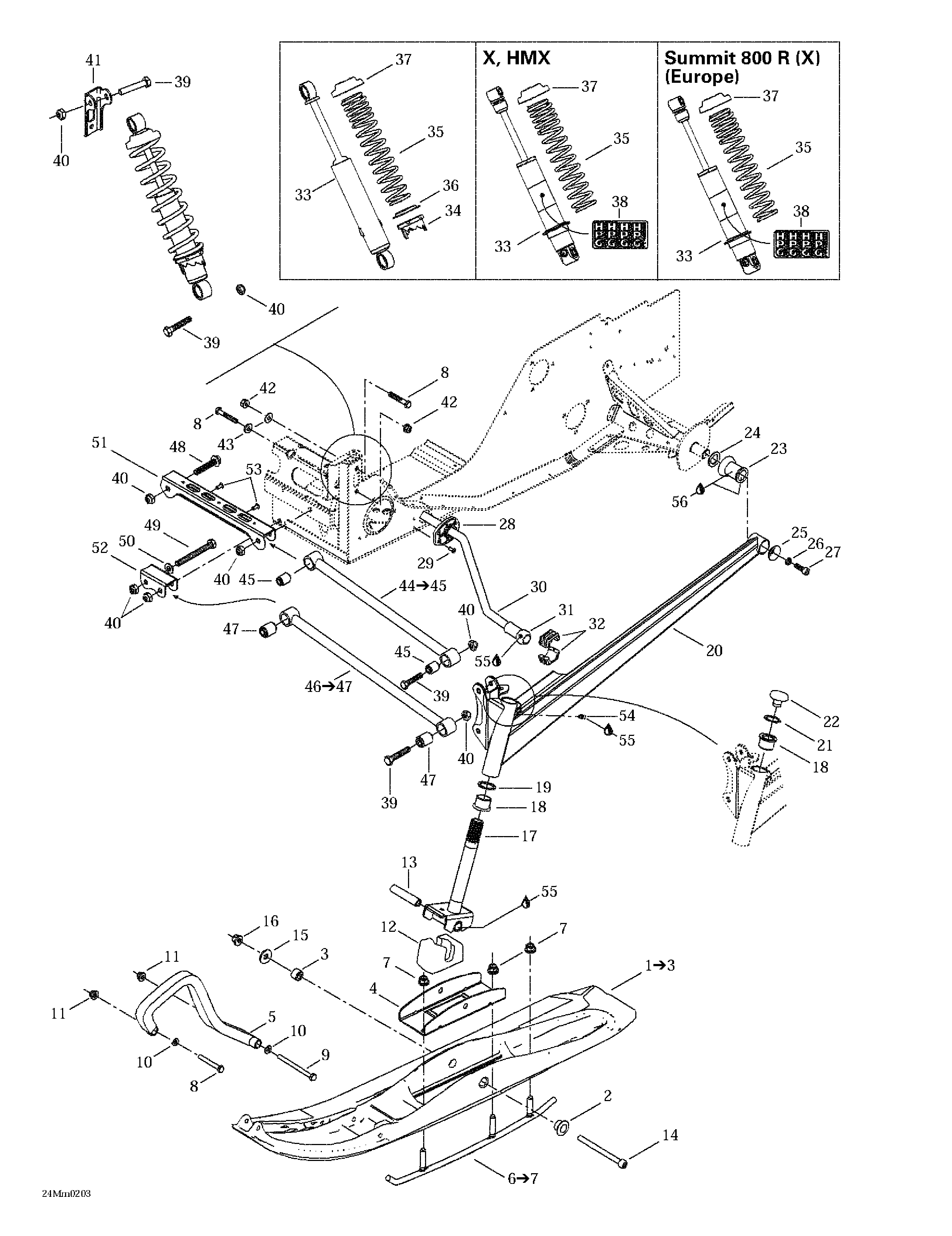

07- Front Suspension And Ski для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1505070739 R.H. Ski Ass'y. Includes 1 - 3.R.H. Ski Ass'y. Includes 1 - 3.
-
1505070862 R.H. Ski Ass'y (Yellow). Includes 1 - 3. (Olympic E, Heritage E) Summit 700.R.H. Ski Ass'y (Yellow). Includes 1 - 3. (Olympic E, Heritage E) Summit 700.
-
505070741 L.H. Ski Ass'yL.H. Ski Ass'y
-
505070861 L.H. Ski Ass'y (Yellow). (Olympic E, Heritage E) Summit 700.L.H. Ski Ass'y (Yellow). (Olympic E, Heritage E) Summit 700.
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505070745 Ski ReinforcementSki Reinforcement
-
5572101000 Plastic HandlePlastic Handle
-
860506400 Ski Handle Kit (Yellow). (Olympic E, Heritage E, X, HMX) Summit 700. Summit 800.Ski Handle Kit (Yellow). (Olympic E, Heritage E, X, HMX) Summit 700. Summit 800.
-
6860504800 Carbide Runner Kit. Includes 6 - 7.Carbide Runner Kit. Includes 6 - 7.
-
6860506300 Carbide Runner Kit. Includes 6 - 7. (600, 700, 800 RER)Carbide Runner Kit. Includes 6 - 7. (600, 700, 800 RER)
-
7233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
8207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
9230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000069 Socket Head Screw M10 x 125Socket Head Screw M10 x 125
-
15234002410 Flat Washer M10Flat Washer M10
-
16732610084 Flanged Nut M10Flanged Nut M10
-
17505070672 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 R.H. Swing ArmR.H. Swing Arm
-
505070646 L.H. Swing ArmL.H. Swing Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506079600 CupCup
-
26234181401 Lock Washer 8 mmLock Washer 8 mm
-
27205582544 Socket Head Screw M8 x 25. (Scotch Grip)Socket Head Screw M8 x 25. (Scotch Grip)
-
28505070191 BushingBushing
-
29390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
30505070774 StabilisatorStabilisator
-
31505070816 Ball JointBall Joint
-
32505070817 Sliding BlockSliding Block
-
33505070752 Front ShockFront Shock
-
505070753 Front Shock (X, HMX). Summit 800.Front Shock (X, HMX). Summit 800.
-
505070894 Front Shock. (Summit 800 R (X)) (Europe) Summit 800.Front Shock. (Summit 800 R (X)) (Europe) Summit 800.
-
34503183700 CamCam
-
35505070762 SpringSpring
-
505070760 Spring (X, HMX). Summit 800.Spring (X, HMX). Summit 800.
-
505070760 Spring. (Summit 800 R (X)) (Europe) Summit 800.Spring. (Summit 800 R (X)) (Europe) Summit 800.
-
36503187500 Spring GuideSpring Guide
-
37503140600 Spring StopperSpring Stopper
-
38516000183 Shock Decal (X, HMX). Summit 800.Shock Decal (X, HMX). Summit 800.
-
516000183 Shock Decal. (Summit 800 R (X)) (Europe) Summit 800.Shock Decal. (Summit 800 R (X)) (Europe) Summit 800.
-
39207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
40233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
41518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
42233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
43506151245 WasherWasher
-
44505070746 Upper Arm Ass'y. Includes 44 - 45.Upper Arm Ass'y. Includes 44 - 45.
-
45505070025 BushingBushing
-
46505070748 Lower Arm Ass'y. Includes 46 - 47.Lower Arm Ass'y. Includes 46 - 47.
-
47505070025 BushingBushing
-
48207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
49207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
50234001410 Flat Washer 10 mmFlat Washer 10 mm
-
51505070010 Upper Arm BracketUpper Arm Bracket
-
52505070011 Lower Arm BracketLower Arm Bracket
-
53390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
54408200700 Grease FittingGrease Fitting
-
55219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
56293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
