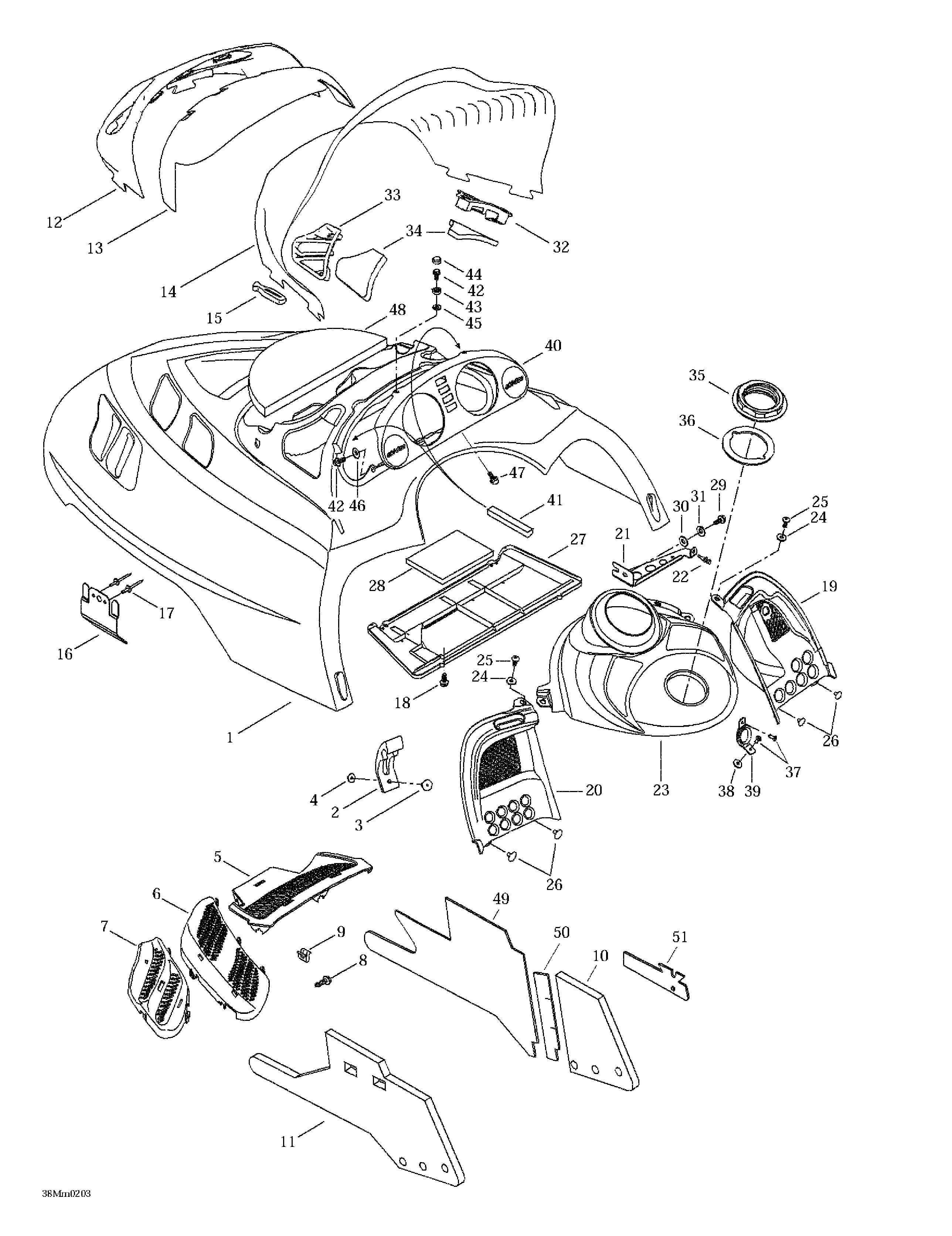

09- Cab, Console для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1517302527 Hood (Black) B-160Hood (Black) B-160
-
517302531 Hood (Red) B-215Hood (Red) B-215
-
517302532 Hood (Blue) B-225. Summit 800.Hood (Blue) B-225. Summit 800.
-
517302612 Hood (Black/Yellow) B-160/B-190. Summit 800.Hood (Black/Yellow) B-160/B-190. Summit 800.
-
517302683 Hood (Orange/Yellow) B-228/B-190. Summit 700.Hood (Orange/Yellow) B-228/B-190. Summit 700.
-
2570027100 Hood LatchHood Latch
-
3390907700 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302671 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
517302672 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302183 ClipClip
-
10517302675 R.H. Side FoamR.H. Side Foam
-
11517302630 L.H. Side FoamL.H. Side Foam
-
12517302582 Headlamp Moulding (Black) B-160Headlamp Moulding (Black) B-160
-
517302648 Headlamp Moulding (Yellow) B-190. Summit 700. Summit 800.Headlamp Moulding (Yellow) B-190. Summit 700. Summit 800.
-
517302649 Headlamp Moulding (Red) B-215. Summit 800.Headlamp Moulding (Red) B-215. Summit 800.
-
13517302003 Windshield SupportWindshield Support
-
14517302022 Medium WindshieldMedium Windshield
-
15570023800 Windshield LatchWindshield Latch
-
16517302615 Hood GuideHood Guide
-
17390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
18243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
19517302005 R.H. ConsoleR.H. Console
-
517302561 R.H. Console (RER)R.H. Console (RER)
-
20517302006 L.H. ConsoleL.H. Console
-
21517302621 R.H. Console SupportR.H. Console Support
-
22517302624 Rubber StopperRubber Stopper
-
23517302635 Center Console (Black) B-160Center Console (Black) B-160
-
517302684 Center Console (Yellow) B-190. (Olympic Edition, Heritage Edition) Summit 700.Center Console (Yellow) B-190. (Olympic Edition, Heritage Edition) Summit 700.
-
24391301600 WasherWasher
-
25732600030 ScrewScrew
-
26390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517302578 Air Intake PlateAir Intake Plate
-
28517302425 Secondary FoamSecondary Foam
-
29210261280 Hex. Forming Screw M6 x 12Hex. Forming Screw M6 x 12
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31234161471 Lock Washer 6 mmLock Washer 6 mm
-
32517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
33517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
34517302151 Air Intake FoamAir Intake Foam
-
35517302043 Console NutConsole Nut
-
36293250029 GasketGasket
-
37390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
38517302286 Rubber StopperRubber Stopper
-
39517302129 Rope GuideRope Guide
-
40572098604 Indicator SupportIndicator Support
-
41517302420 FoamFoam
-
42241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
43414436800 Retainer CapRetainer Cap
-
44414436900 Snap Cap (Black)Snap Cap (Black)
-
45234042600 Flat Washer 4 mmFlat Washer 4 mm
-
46517124300 WasherWasher
-
47732601210 Hex. Tapping ScrewHex. Tapping Screw
-
48517302317 Center Foam (Can./US Only)Center Foam (Can./US Only)
-
49514053428 Reflective SheetReflective Sheet
-
51514053391 Reflective SheetReflective Sheet
