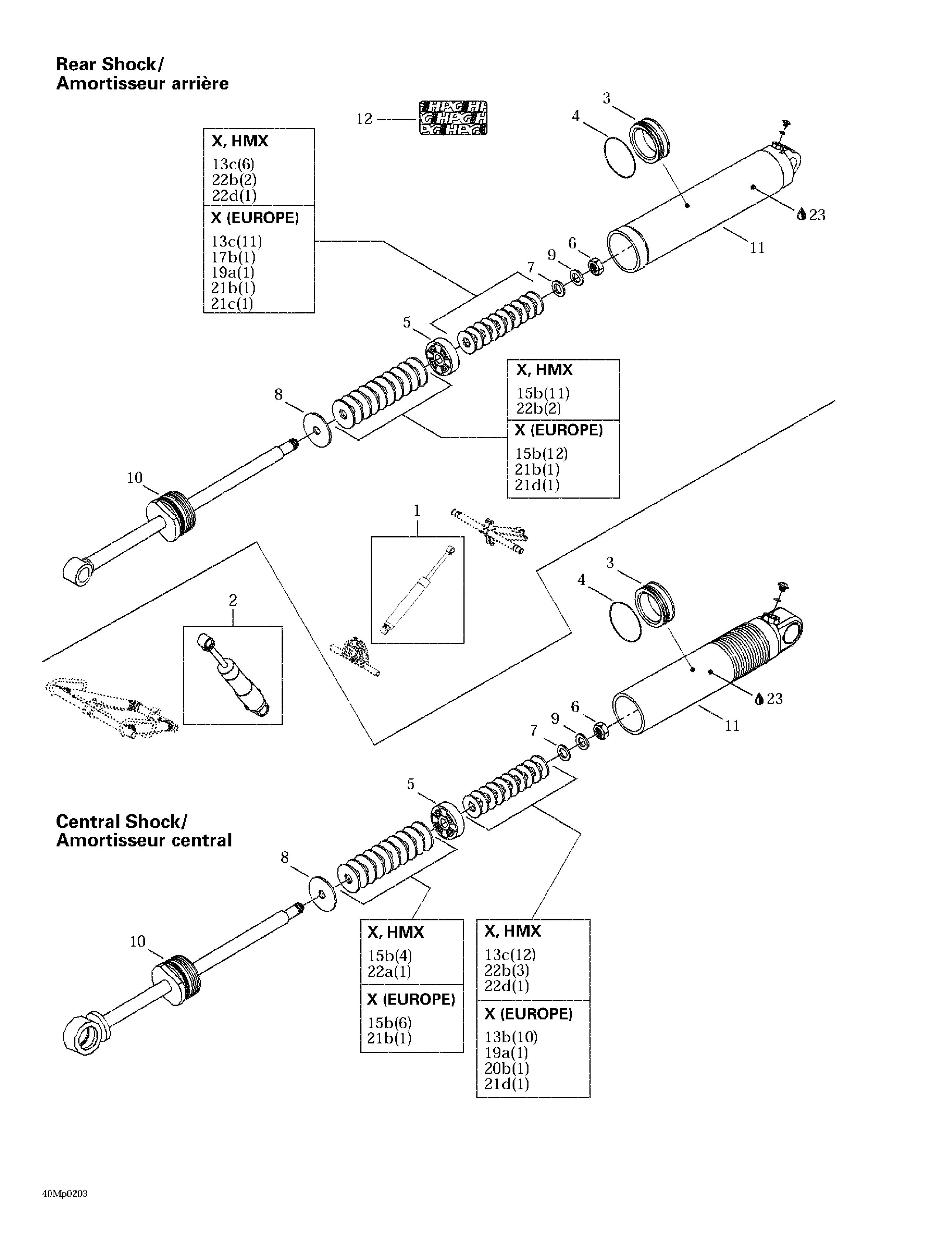

08- Rear Take Apart Shocks для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1503189895 Rear Shock. (X, HMX) Summit 800.Rear Shock. (X, HMX) Summit 800.
-
503189896 Rear Shock. (Summit 800 R (X)) (Europe) Summit 800.Rear Shock. (Summit 800 R (X)) (Europe) Summit 800.
-
2503189891 Central Shock. (X, HMX) Summit 800.Central Shock. (X, HMX) Summit 800.
-
503189892 Central Shock. (Summit 800 R (X)) (Europe) Summit 800.Central Shock. (Summit 800 R (X)) (Europe) Summit 800.
-
3415097900 Free Piston. Summit 800.Free Piston. Summit 800.
-
4414888312 O-Ring. Summit 800.O-Ring. Summit 800.
-
12516000182 Decal >. Summit 800.Decal >. Summit 800.
-
13a415039100 (C36) Leaf Valve O30 x 0.254. Summit 800.(C36) Leaf Valve O30 x 0.254. Summit 800.
-
13b414888318 (C36) Leaf Valve O30 x 0.203. Summit 800.(C36) Leaf Valve O30 x 0.203. Summit 800.
-
13c414888319 (C36) Leaf Valve O30 x 0.152. Summit 800.(C36) Leaf Valve O30 x 0.152. Summit 800.
-
14a414888320 (C36) Leaf Valve O28 x 0.203. Summit 800.(C36) Leaf Valve O28 x 0.203. Summit 800.
-
14b414888321 (C36) Leaf Valve O28 x 0.152. Summit 800.(C36) Leaf Valve O28 x 0.152. Summit 800.
-
15a415039000 (C36) Leaf Valve O26 x 0.254. Summit 800.(C36) Leaf Valve O26 x 0.254. Summit 800.
-
15b414888322 (C36) Leaf Valve O26 x 0.203. Summit 800.(C36) Leaf Valve O26 x 0.203. Summit 800.
-
15c414888323 (C36) Leaf Valve O26 x 0.152. Summit 800.(C36) Leaf Valve O26 x 0.152. Summit 800.
-
16a414888324 (C36) Leaf Valve O22 x 0.203. Summit 800.(C36) Leaf Valve O22 x 0.203. Summit 800.
-
16b414888325 (C36) Leaf Valve O22 x 0.152. Summit 800.(C36) Leaf Valve O22 x 0.152. Summit 800.
-
17a414888340 (C36) Leaf Valve O21 x 0.114. Summit 800.(C36) Leaf Valve O21 x 0.114. Summit 800.
-
18a414888326 (C36) Leaf Valve O20 x 0.203. Summit 800.(C36) Leaf Valve O20 x 0.203. Summit 800.
-
18b414888327 (C36) Leaf Valve O20 x 0.152. Summit 800.(C36) Leaf Valve O20 x 0.152. Summit 800.
-
18c414888328 (C36) Leaf Valve O20 x 0.114. Summit 800.(C36) Leaf Valve O20 x 0.114. Summit 800.
-
19a414888329 (C36) Leaf Valve O18 x 0.203. Summit 800.(C36) Leaf Valve O18 x 0.203. Summit 800.
-
19b414888330 (C36) Leaf Valve O18 x 0.152. Summit 800.(C36) Leaf Valve O18 x 0.152. Summit 800.
-
20a414888331 (C36) Leaf Valve O16 x 0.254. Summit 800.(C36) Leaf Valve O16 x 0.254. Summit 800.
-
20b414888332 (C36) Leaf Valve O16 x 0.203. Summit 800.(C36) Leaf Valve O16 x 0.203. Summit 800.
-
20c414888333 (C36) Leaf Valve O16 x 0.152. Summit 800.(C36) Leaf Valve O16 x 0.152. Summit 800.
-
20d415038900 (C36) Leaf Valve O16 x 0.114. Summit 800.(C36) Leaf Valve O16 x 0.114. Summit 800.
-
21a414888334 (C36) Leaf Valve O15 x 0.254. Summit 800.(C36) Leaf Valve O15 x 0.254. Summit 800.
-
21b414888335 (C36) Leaf Valve O15 x 0.203. Summit 800.(C36) Leaf Valve O15 x 0.203. Summit 800.
-
21c414888336 (C36) Leaf Valve O15 x 0.152. Summit 800.(C36) Leaf Valve O15 x 0.152. Summit 800.
-
21d414888337 (C36) Leaf Valve O15 x 0.114. Summit 800.(C36) Leaf Valve O15 x 0.114. Summit 800.
-
22a503189538 (C36) Leaf Valve O12 x 0.254. Summit 800.(C36) Leaf Valve O12 x 0.254. Summit 800.
-
22b414888339 (C36) Leaf Valve O12 x 0.203. Summit 800.(C36) Leaf Valve O12 x 0.203. Summit 800.
-
22c414888338 (C36) Leaf Valve O12 x 0.152. Summit 800.(C36) Leaf Valve O12 x 0.152. Summit 800.
-
22d415038800 (C36) Leaf Valve O12 x 0.114. Summit 800.(C36) Leaf Valve O12 x 0.114. Summit 800.
-
23293600035 Shock Oil. Summit 800.Shock Oil. Summit 800.
