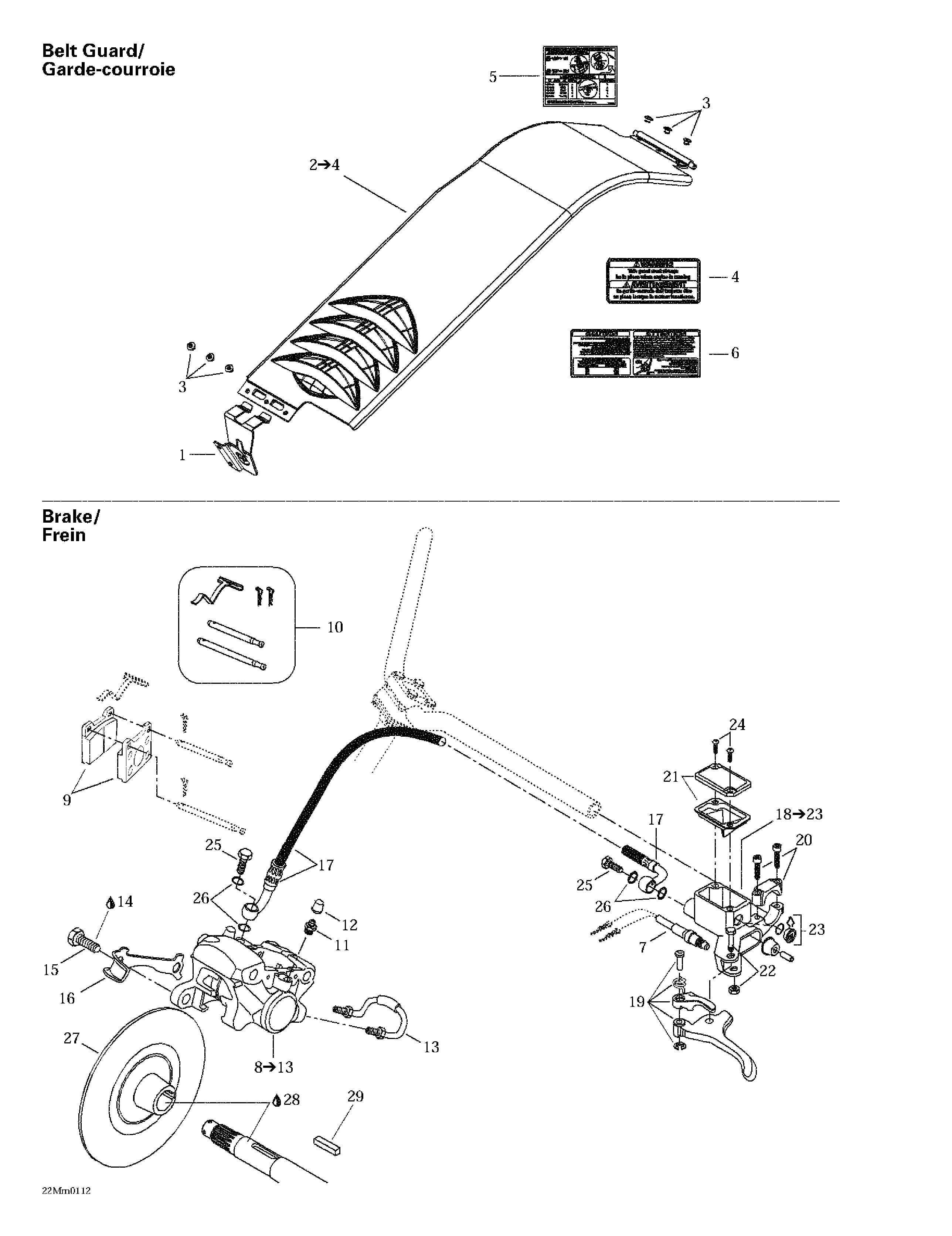

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4516001190 Label SecurityLabel Security
-
5418001706 Suspension Adjustment DecalSuspension Adjustment Decal
-
516000955 Suspension Adjustment Decal. (X, HMX) Summit 800.Suspension Adjustment Decal. (X, HMX) Summit 800.
-
6516001232 Label InstructionLabel Instruction
-
7507032334 MicroswitchMicroswitch
-
8507032321 Caliper. Includes 8 - 13.Caliper. Includes 8 - 13.
-
8507032204 Caliper (X, HMX). Includes 8 - 13. Summit 800.Caliper (X, HMX). Includes 8 - 13. Summit 800.
-
9415084600 Brake Lining KitBrake Lining Kit
-
10414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
11414989800 Screw-BleederScrew-Bleeder
-
12414989700 BootBoot
-
13414989900 Rigid TubingRigid Tubing
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
16506032316 Locking TabLocking Tab
-
17507032237 HoseHose
-
507032329 Hose (X, HMX). Summit 800.Hose (X, HMX). Summit 800.
-
18507032293 Master Cylinder. Includes 18 - 23.Master Cylinder. Includes 18 - 23.
-
19507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
20415029800 Clamp Ass'yClamp Ass'y
-
21415029900 CapCap
-
22415030000 Pin Ass'yPin Ass'y
-
23414990600 WindowWindow
-
24216141260 Screw M4 x 12Screw M4 x 12
-
25414920500 Banjo BoltBanjo Bolt
-
26414920600 WasherWasher
-
27507031300 Brake DiskBrake Disk
-
507032301 Brake Disk (X, HMX). Summit 800.Brake Disk (X, HMX). Summit 800.
-
28293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
29507021300 KeyKey
