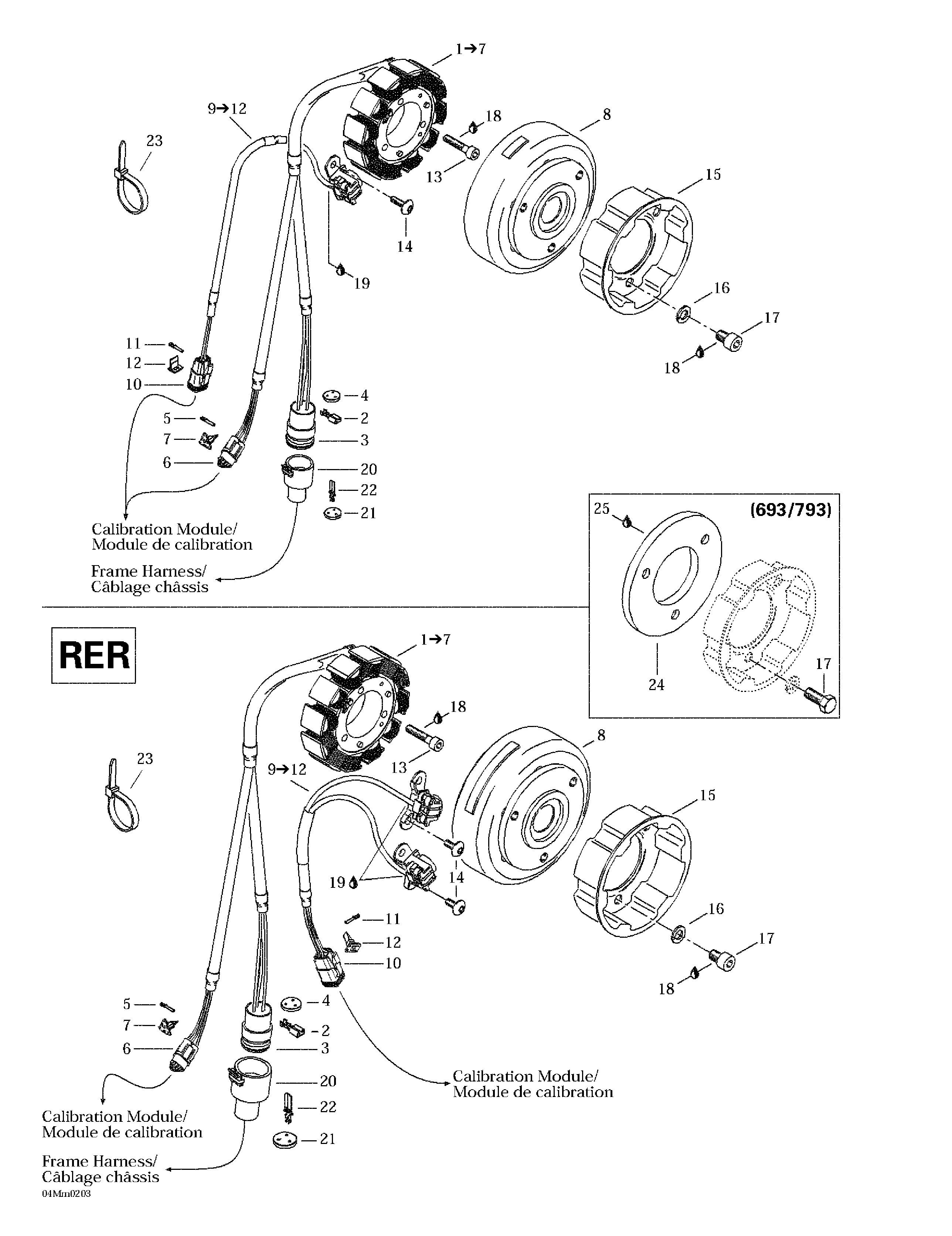

03- Magneto (12V, 290W) для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1410922936 Stator Plate. Includes 1 - 7.Stator Plate. Includes 1 - 7.
-
2409011900 Female TerminalFemale Terminal
-
3409208200 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
4409208500 SealSeal
-
5278000632 Female TerminalFemale Terminal
-
6409207400 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
7409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
8410922937 FlywheelFlywheel
-
410922939 Flywheel (RER)Flywheel (RER)
-
9410922938 Pick-up Ass'y. Includes 9 - 12.Pick-up Ass'y. Includes 9 - 12.
-
410922940 Pick-up Ass'y (RER)Pick-up Ass'y (RER)
-
10409207300 Female Terminal Housing. (2 circuits)Female Terminal Housing. (2 circuits)
-
278000739 Female Terminal Housing. (4 circuits) (RER)Female Terminal Housing. (4 circuits) (RER)
-
11278000632 Female TerminalFemale Terminal
-
278000632 Female Terminal (RER)Female Terminal (RER)
-
12515175708 Female Lock (2 circuits)Female Lock (2 circuits)
-
278000738 Female Lock (4 circuits) (RER)Female Lock (4 circuits) (RER)
-
13205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
14420640321 Screw M5 x 16Screw M5 x 16
-
420640321 Screw M5 x 16 (RER)Screw M5 x 16 (RER)
-
15420852419 Pulley Starting. Summit 600.Pulley Starting. Summit 600.
-
420852532 Pulley Starting. Summit 700. Summit 800.Pulley Starting. Summit 700. Summit 800.
-
16420945752 Lock Washer 8 mmLock Washer 8 mm
-
17420841520 Socket Head Screw M8 x 12. Summit 600.Socket Head Screw M8 x 12. Summit 600.
-
207182044 Hex. Screw M8 x 20. Summit 700. Summit 800.Hex. Screw M8 x 20. Summit 700. Summit 800.
-
18293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20409207900 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
21409208500 Seal (3 circuits)Seal (3 circuits)
-
22409011100 Male TerminalMale Terminal
-
23293750001 Tie Rap 94 mmTie Rap 94 mm
-
24420866756 Counter Weight. Summit 700. Summit 800.Counter Weight. Summit 700. Summit 800.
-
25413711400 Loctite 648, 10 ml. Summit 700. Summit 800.Loctite 648, 10 ml. Summit 700. Summit 800.
