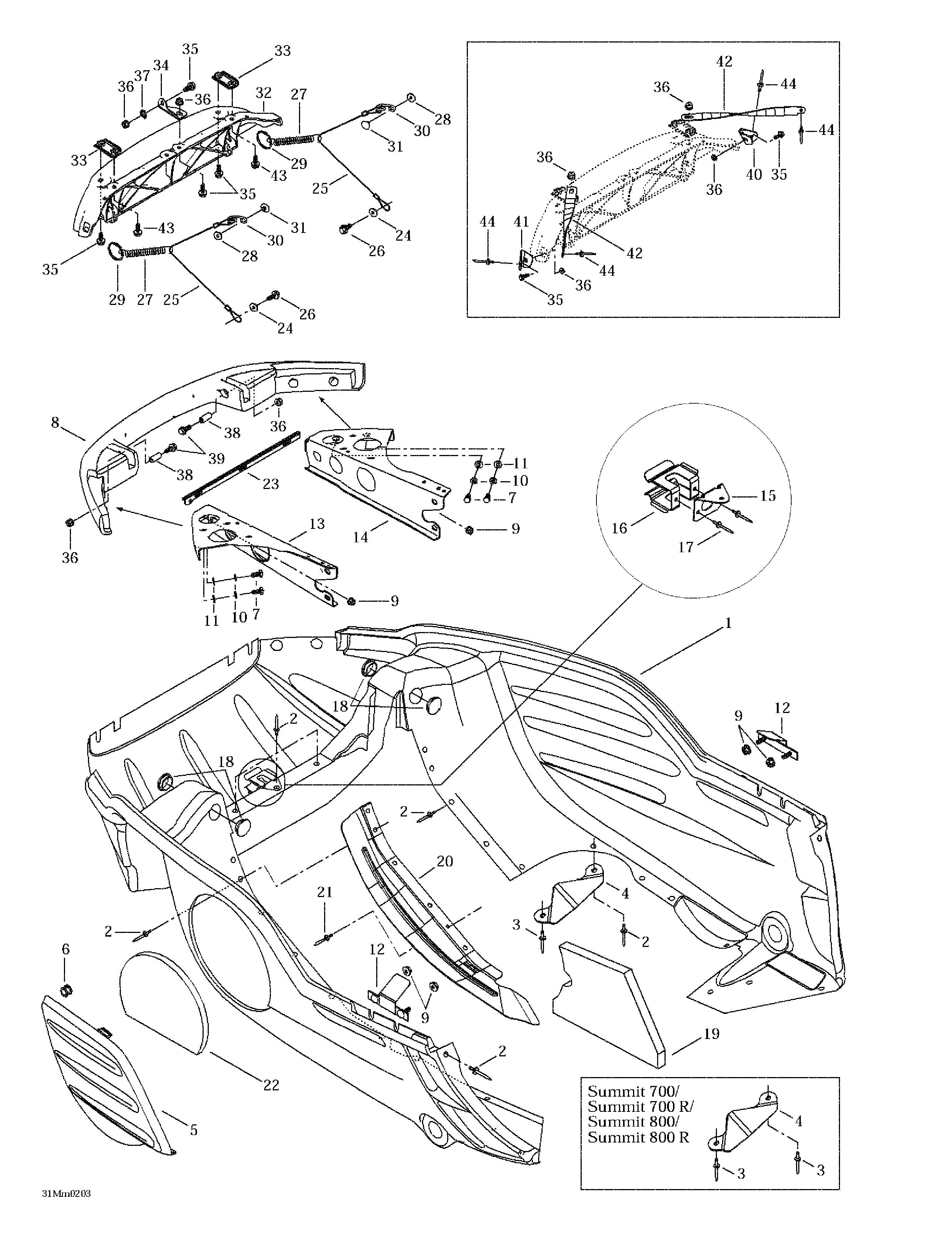

09- Bottom Pan для BRP Ski-Doo Summit 600/700/800 - 2002

№

Артикул

Название
1

502006633 Bottom Pan (Black, B-160)

Bottom Pan (Black, B-160)

33 350 ₽
502006632 Bottom Pan (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

Bottom Pan (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

10 ₽
502006635 Bottom Pan (Blue, B-226) (HMX, X). Summit 800.

Bottom Pan (Blue, B-226) (HMX, X). Summit 800.

0 ₽
2

390907700 Pop Rivet 3/16'' (Black, B-160)

Pop Rivet 3/16'' (Black, B-160)

0 ₽
390910200 Pop Rivet 3/16'' (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

Pop Rivet 3/16'' (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

0 ₽
293150083 Pop Rivet 3/16'' (Blue, B-226) (HMX, X). Summit 800.

Pop Rivet 3/16'' (Blue, B-226) (HMX, X). Summit 800.

0 ₽
3

390409600 Pop Rivet 3/16''

Pop Rivet 3/16''

0 ₽
4

502006637 Snow Deflector

Snow Deflector

0 ₽
5

502006506 Bottom Pan Door (Black, B-160)

Bottom Pan Door (Black, B-160)

1 990 ₽
502006511 Bottom Pan Door (Yellow) B-190. (Olympic Edition, Heritage Edition) Summit 700.

Bottom Pan Door (Yellow) B-190. (Olympic Edition, Heritage Edition) Summit 700.

2 260 ₽
502006641 Bottom Pan Door (Blue, B-226) (HMX, X). Summit 800.

Bottom Pan Door (Blue, B-226) (HMX, X). Summit 800.

1 710 ₽
6

414036300 Grommet

Grommet

1 470 ₽
7

207161444 Hex. Screw M6 x 14

Hex. Screw M6 x 14

60 ₽
8

502006536 Bumper (Black, B-160)

Bumper (Black, B-160)

0 ₽
502006535 Bumper (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

Bumper (Yellow, B-190). (Olympic Edition, Heritage Edition) Summit 700.

7 120 ₽
502006642 Bumper (Blue, B-226) (HMX, X). Summit 800.

Bumper (Blue, B-226) (HMX, X). Summit 800.

7 220 ₽
9

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6

490 ₽
10

234161471 Lock Washer 6 mm

Lock Washer 6 mm

190 ₽
11

224061121 Flat Washer

Flat Washer

190 ₽
12

502006645 Bracket

Bracket

0 ₽
13

502006597 L.H. Support

L.H. Support

2 260 ₽
14

502006596 R.H. Support

R.H. Support

0 ₽
15

502006599 Belt Support

Belt Support

210 ₽
16

517281905 Bracket

Bracket

1 380 ₽
17

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
18

414916600 Nylon Cap

Nylon Cap

1 590 ₽
19

502006558 Bottom Foam

Bottom Foam

0 ₽
20

502006593 Bottom Pan Protector. Summit 700. Summit 800.

Bottom Pan Protector. Summit 700. Summit 800.

0 ₽
21

390402200 Pop Rivet 3/16''. Summit 700. Summit 800.

Pop Rivet 3/16''. Summit 700. Summit 800.

120 ₽
22

502006559 Bottom Pan Door Foam

Bottom Pan Door Foam

670 ₽
23

502006647 Bottom Pan Reinforcement

Bottom Pan Reinforcement

570 ₽
24

391301600 Washer

Washer

50 ₽
25

415093900 Retainer Cable

Retainer Cable

1 200 ₽
27

415043300 Spring

Spring

550 ₽
28

517124300 Washer

Washer

70 ₽
29

415058300 Ring

Ring

310 ₽
30

517262800 Bracket

Bracket

860 ₽
31

390409600 Pop Rivet 3/16''

Pop Rivet 3/16''

0 ₽
32

517302631 Hinge

Hinge

16 700 ₽
33

517302176 Hinge Side Plate

Hinge Side Plate

800 ₽
34

517302045 Hinge Center Plate

Hinge Center Plate

240 ₽
35

207661684 Hex. Flanged Screw M6 x 16

Hex. Flanged Screw M6 x 16

290 ₽
36

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6

490 ₽
37

250200000 Serrated Lock Washer 6 mm

Serrated Lock Washer 6 mm

0 ₽
38

517302179 Bushing

Bushing

1 880 ₽
39

207663544 Hex. Flanged Screw M6 x 35

Hex. Flanged Screw M6 x 35

320 ₽
40

517302254 R.H. Corner Support

R.H. Corner Support

210 ₽
41

517302255 L.H. Corner Support

L.H. Corner Support

220 ₽
42

517302256 Hood Clamp

Hood Clamp

220 ₽
43

207662544 Hex. Flanged Screw M6 x 25

Hex. Flanged Screw M6 x 25

240 ₽
44

390406500 Pop Rivet 3/16''

Pop Rivet 3/16''

320 ₽
