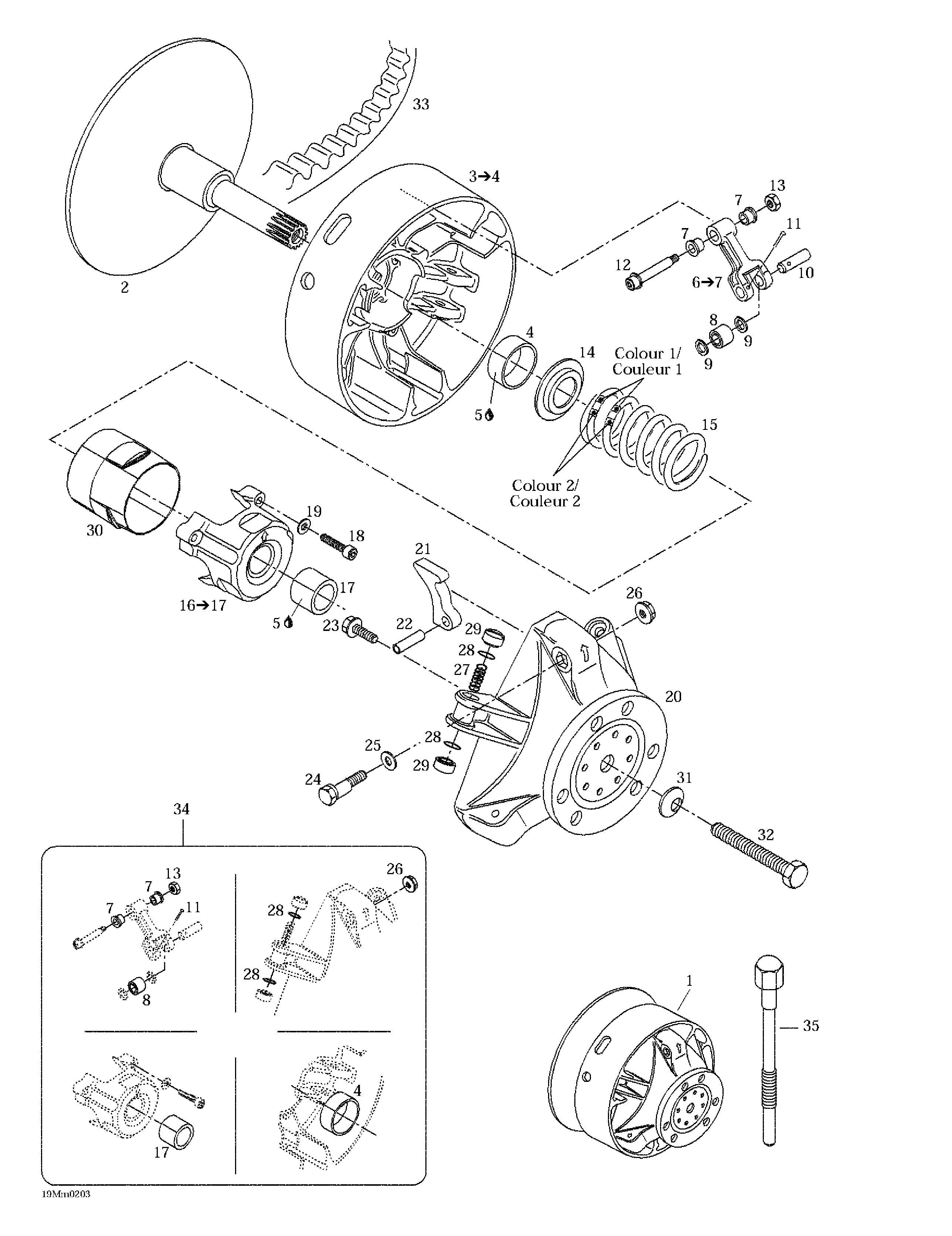

05- Drive Pulley для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
2417222411 Fixed Flange. Summit 600. Summit 700.Fixed Flange. Summit 600. Summit 700.
-
417222272 Fixed Flange. Summit 800.Fixed Flange. Summit 800.
-
3417222241 Sliding Flange Ass'y. Includes 3 - 4. Summit 600. Summit 700.Sliding Flange Ass'y. Includes 3 - 4. Summit 600. Summit 700.
-
417222027 Sliding Flange Ass'y. Summit 800.Sliding Flange Ass'y. Summit 800.
-
4417004201 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6417222383 Lever Ass'y. Includes 6 - 7.Lever Ass'y. Includes 6 - 7.
-
7417004305 BushingBushing
-
8417003900 Roller Ass'yRoller Ass'y
-
9417004302 Stopper WasherStopper Washer
-
10417222478 PinPin
-
417004308 Pin (Europe). Summit 600. Summit 800.Pin (Europe). Summit 600. Summit 800.
-
11732958001 Cotter PinCotter Pin
-
12417004800 Screw Ass'y. Summit 600. Summit 700.Screw Ass'y. Summit 600. Summit 700.
-
417222028 Screw Ass'y. Summit 800.Screw Ass'y. Summit 800.
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14417222044 Spring SeatSpring Seat
-
15415015400 Spring (Violet/Green). Summit 600.Spring (Violet/Green). Summit 600.
-
415034900 Spring (Violet/Blue) (Summit 600 R). Summit 600.Spring (Violet/Blue) (Summit 600 R). Summit 600.
-
415015300 Spring (Violet/Yellow). Summit 700.Spring (Violet/Yellow). Summit 700.
-
414639000 Spring (Blue/Orange). Summit 800.Spring (Blue/Orange). Summit 800.
-
414817900 Spring (Violet/Violet) (Europe). Summit 600.Spring (Violet/Violet) (Europe). Summit 600.
-
415015300 Spring (Violet/Yellow) (Europe). Summit 800.Spring (Violet/Yellow) (Europe). Summit 800.
-
16417222304 Spring Cover Ass'y. Includes 16 - 17.Spring Cover Ass'y. Includes 16 - 17.
-
17417004501 BushingBushing
-
18250000038 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
19420245370 WasherWasher
-
20417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
21417222381 Ramp 300. Summit 600.Ramp 300. Summit 600.
-
417222372 Ramp 299 (Summit 600 R). Summit 600.Ramp 299 (Summit 600 R). Summit 600.
-
417222372 Ramp 299. Summit 700.Ramp 299. Summit 700.
-
417222381 Ramp 300 (Summit 700 R). Summit 700.Ramp 300 (Summit 700 R). Summit 700.
-
417222381 Ramp 300. Summit 800.Ramp 300. Summit 800.
-
417222372 Ramp 299 (Europe). Summit 600.Ramp 299 (Europe). Summit 600.
-
417222474 Ramp 301 (Europe). Summit 800.Ramp 301 (Europe). Summit 800.
-
22732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
23210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
24417005500 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Slider Shoe. Summit 600. Summit 700.Slider Shoe. Summit 600. Summit 700.
-
417222362 Slider Shoe. Summit 800.Slider Shoe. Summit 800.
-
30417222176 GuardGuard
-
31250200006 Conical Spring WasherConical Spring Washer
-
32417120000 Drive Pulley BoltDrive Pulley Bolt
-
33417300127 Drive BeltDrive Belt
-
34417006100 Clutch Repair KitClutch Repair Kit
-
35529022400 Puller Inner HalfPuller Inner Half
