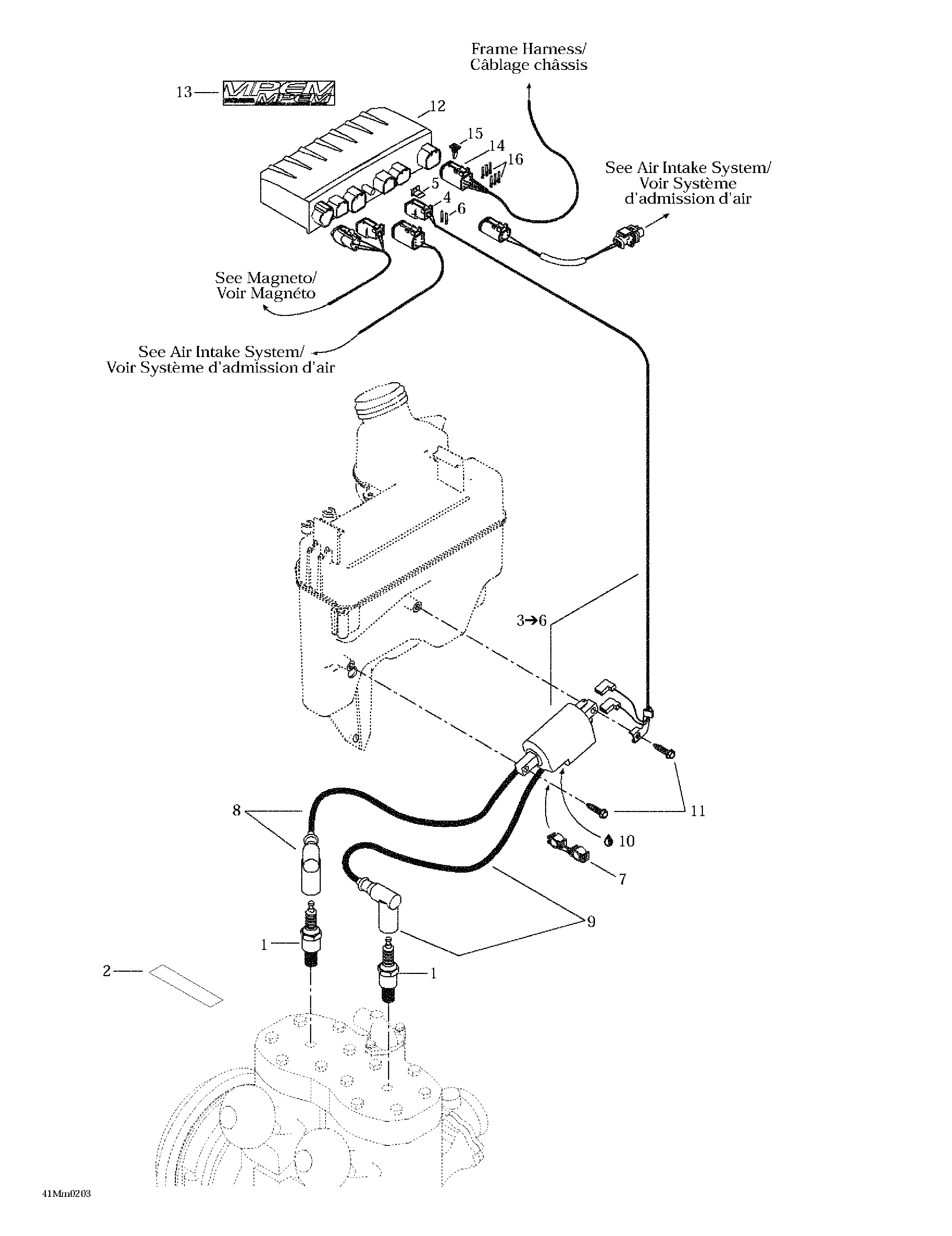

03- Ignition для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1512059552 Spark Plug NGK BR9ECS 0.5mmSpark Plug NGK BR9ECS 0.5mm
-
2516000986 Spark Plug DecalSpark Plug Decal
-
3512059512 Ignition Coil Ass'y. Includes 3 - 6.Ignition Coil Ass'y. Includes 3 - 6.
-
4515175670 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
5515175707 Female Lock (2 circuits)Female Lock (2 circuits)
-
6278000632 Female TerminalFemale Terminal
-
7410914600 Plastic ClipPlastic Clip
-
8512059485 Cable Ass'y 380 mmCable Ass'y 380 mm
-
9512059486 Cable Ass'y 455 mmCable Ass'y 455 mm
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11250000005 Hex. Tapping ScrewHex. Tapping Screw
-
12512059542 Calibration Module. Summit 600.Calibration Module. Summit 600.
-
512059543 Calibration Module (RER). Summit 600.Calibration Module (RER). Summit 600.
-
512059464 Calibration Module. Summit 700.Calibration Module. Summit 700.
-
512059531 Calibration Module (RER). Summit 700.Calibration Module (RER). Summit 700.
-
512059474 Calibration Module. Summit 800.Calibration Module. Summit 800.
-
512059616 Calibration Module (RER). Summit 800.Calibration Module (RER). Summit 800.
-
512059616 Calibration Module (RER). (X, HM, HMX) Summit 800.Calibration Module (RER). (X, HM, HMX) Summit 800.
-
13516000245 Electrical Box DecalElectrical Box Decal
-
14515175673 Female Terminal Housing (6 circuits)Female Terminal Housing (6 circuits)
-
15515175705 Female Lock (6 circuits)Female Lock (6 circuits)
-
16278000632 Female TerminalFemale Terminal
