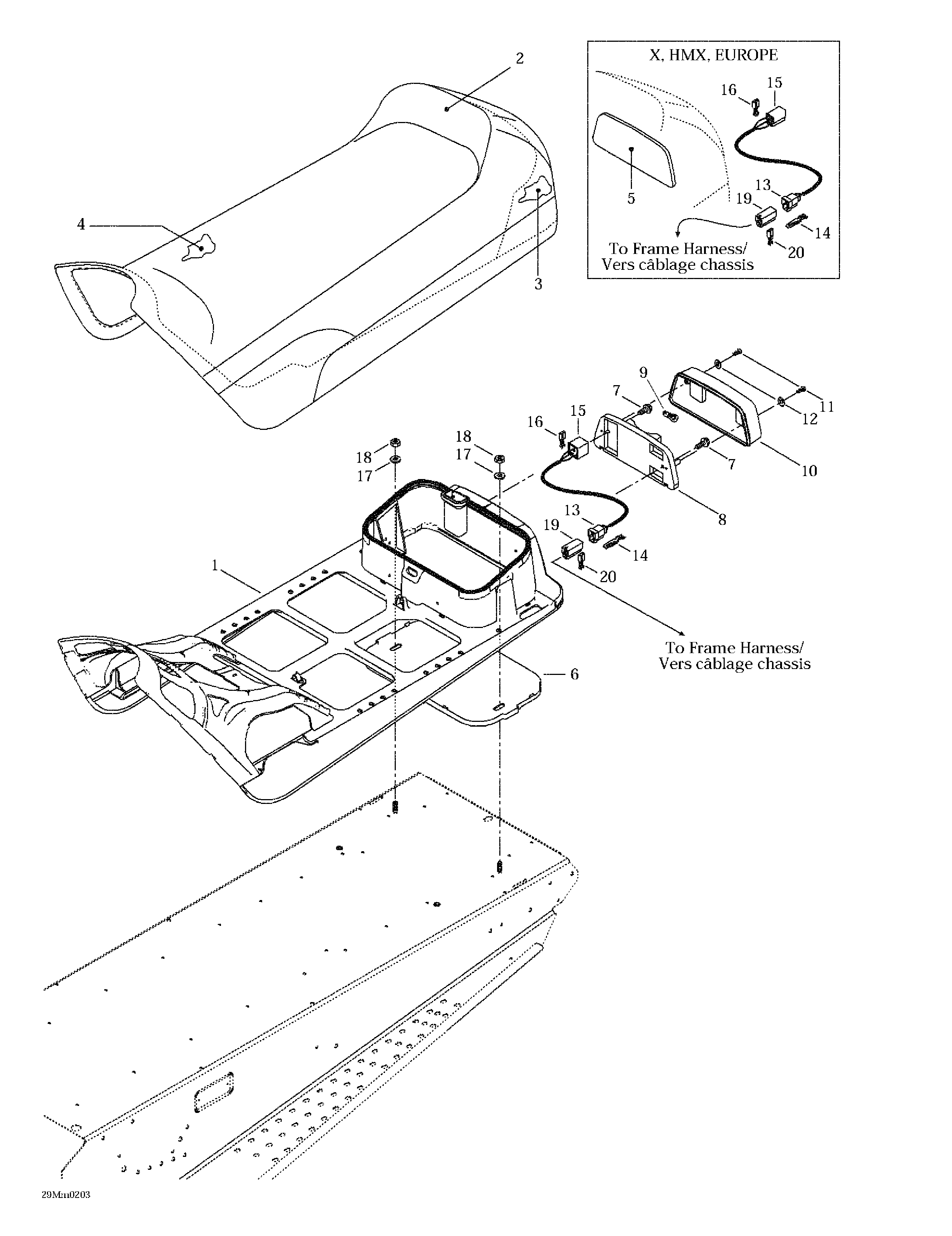

09- Seat для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1510003949 Seat BaseSeat Base
-
2510003947 Seat CoverSeat Cover
-
510003943 Seat Cover (X, HM, HMX). Summit 800.Seat Cover (X, HM, HMX). Summit 800.
-
510004046 Seat Cover (Olympic Edition). Summit 700.Seat Cover (Olympic Edition). Summit 700.
-
510004053 Seat Cover (Heritage Edition). Summit 700.Seat Cover (Heritage Edition). Summit 700.
-
510004048 Seat Cover (Europe). Summit 600. Summit 800.Seat Cover (Europe). Summit 600. Summit 800.
-
3510003945 Seat FoamSeat Foam
-
510003947 Seat Foam (HM). Summit 800.Seat Foam (HM). Summit 800.
-
4510003948 Seat FoamSeat Foam
-
5510003989 Tail Lamp Bulb Foam (X, HMX). Summit 800.Tail Lamp Bulb Foam (X, HMX). Summit 800.
-
510003989 Tail Lamp Bulb Foam (Europe). Summit 600. Summit 800.Tail Lamp Bulb Foam (Europe). Summit 600. Summit 800.
-
6572107601 Under ChestUnder Chest
-
7732603006 Hex. Screw (Plastite)Hex. Screw (Plastite)
-
8414513600 Light HousingLight Housing
-
9410504100 Tail Lamp BulbTail Lamp Bulb
-
10414513700 LensLens
-
11209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
12414516400 WasherWasher
-
13409204200 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
14409206100 Male TerminalMale Terminal
-
15515175250 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
409204300 Female Terminal Housing. (3 circuits) (X, HMX) Summit 800.Female Terminal Housing. (3 circuits) (X, HMX) Summit 800.
-
409204300 Female Terminal Housing. (3 circuits) (Europe) Summit 600. Summit 800.Female Terminal Housing. (3 circuits) (Europe) Summit 600. Summit 800.
-
16409205300 Female TerminalFemale Terminal
-
17234082410 Flat Washer 8 mmFlat Washer 8 mm
-
18232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
19409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
20561503100 Female TerminalFemale Terminal
