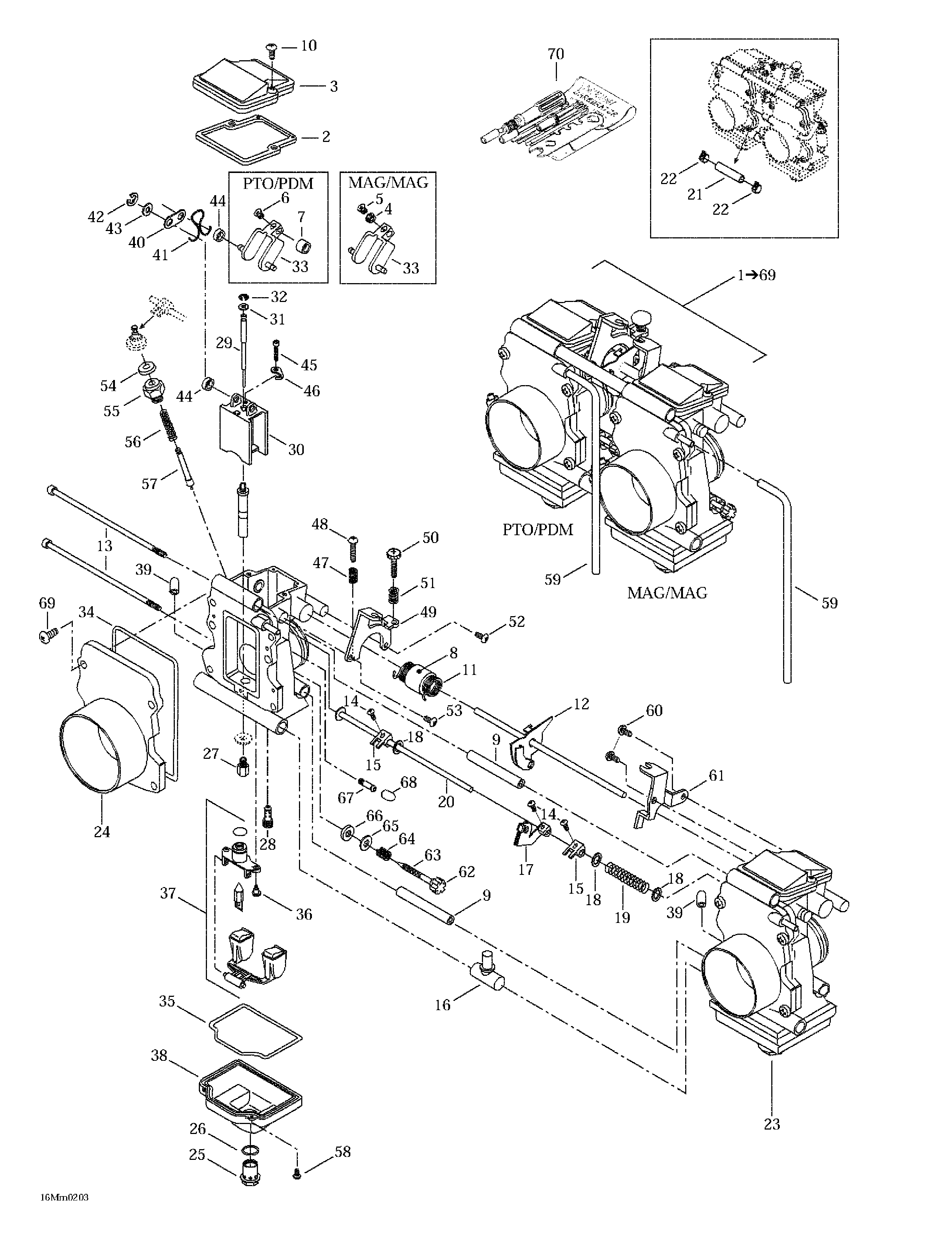

02- Carburetors для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1403138702 Carburetor Kit TM40-B157. Includes 1 - 69. Summit 600.Carburetor Kit TM40-B157. Includes 1 - 69. Summit 600.
-
403138704 Carburetor Kit TM40-B163. Summit 700.Carburetor Kit TM40-B163. Summit 700.
-
403138703 Carburetor Kit TM40-B175. Summit 800.Carburetor Kit TM40-B175. Summit 800.
-
403138700 Carburetor Kit TM40-B154. (Europe) Summit 600.Carburetor Kit TM40-B154. (Europe) Summit 600.
-
403138698 Carburetor Kit TM40-B166. (Europe) Summit 800.Carburetor Kit TM40-B166. (Europe) Summit 800.
-
2404161940 GasketGasket
-
3404161939 CoverCover
-
4404161937 Ring (MAG)Ring (MAG)
-
5404161936 Screw (MAG)Screw (MAG)
-
6404161928 Screw (PTO)Screw (PTO)
-
7404161926 Ring (PTO)Ring (PTO)
-
8404161925 RingRing
-
9404161924 RingRing
-
10404161923 ScrewScrew
-
11404161915 SpringSpring
-
12404161914 Throttle ShaftThrottle Shaft
-
13404161911 ScrewScrew
-
14404161910 ScrewScrew
-
15404161909 LeverLever
-
16404161905 NippleNipple
-
17404161901 Starter LeverStarter Lever
-
18404161894 PackingPacking
-
19404103500 SpringSpring
-
20404161981 ShaftShaft
-
21404161956 HoseHose
-
22404161957 ClipClip
-
24404161959 Funnel (PTO)Funnel (PTO)
-
404161958 Funnel (MAG)Funnel (MAG)
-
25404161955 Drain ScrewDrain Screw
-
26404161945 O-RingO-Ring
-
27404108200 Main Jet 500. Summit 600.Main Jet 500. Summit 600.
-
404161983 Main Jet 510N. Summit 700.Main Jet 510N. Summit 700.
-
404161984 Main Jet 520N. Summit 800.Main Jet 520N. Summit 800.
-
28404108600 Pilot Jet 20. Summit 600.Pilot Jet 20. Summit 600.
-
404161944 Pilot Jet 17.5. Summit 700. Summit 800.Pilot Jet 17.5. Summit 700. Summit 800.
-
29404161980 Needle J8-9hgy01-58. Summit 600.Needle J8-9hgy01-58. Summit 600.
-
404161953 Needle J8-9zly03-58. Summit 700.Needle J8-9zly03-58. Summit 700.
-
404161962 Needle J8-9zly02-58. Summit 800.Needle J8-9zly02-58. Summit 800.
-
30404161950 Valve Piston 2.0Valve Piston 2.0
-
31404137600 PackingPacking
-
32404152200 E-RingE-Ring
-
33404161927 Lever (PTO)Lever (PTO)
-
404161938 Lever (MAG)Lever (MAG)
-
34404161935 O-RingO-Ring
-
35404161961 O-RingO-Ring
-
36404161933 ScrewScrew
-
37404161932 FloatFloat
-
38404161960 Float Body Ass'yFloat Body Ass'y
-
39270500095 Cap. Summit 600. Summit 800.Cap. Summit 600. Summit 800.
-
40404161930 PlatePlate
-
41404161929 ClipClip
-
42404138300 E-RingE-Ring
-
43404161922 WasherWasher
-
44404161921 RingRing
-
45404161920 ScrewScrew
-
46404161919 PlatePlate
-
47404161918 Spring (PTO)Spring (PTO)
-
48404161917 Screw (PTO)Screw (PTO)
-
49404161916 Bracket (PTO)Bracket (PTO)
-
50404137500 Adjustment Screw (PTO)Adjustment Screw (PTO)
-
51404161913 Spring (PTO)Spring (PTO)
-
52404161912 Screw (PTO)Screw (PTO)
-
53404136100 Screw (PTO)Screw (PTO)
-
54404140000 CapCap
-
55404136900 Holder GuideHolder Guide
-
56404161908 SpringSpring
-
57404161907 Plunger Ass'yPlunger Ass'y
-
58404161906 ScrewScrew
-
59404161904 HoseHose
-
60404161903 Screw (MAG)Screw (MAG)
-
61404161902 Bracket (MAG)Bracket (MAG)
-
62404161899 CapCap
-
63404161898 AdjusterAdjuster
-
64404161897 SpringSpring
-
65404161896 WasherWasher
-
66404161895 PackingPacking
-
67404153400 NippleNipple
-
68404154900 CapCap
-
69404138800 ScrewScrew
-
70407112000 Tool KitTool Kit
