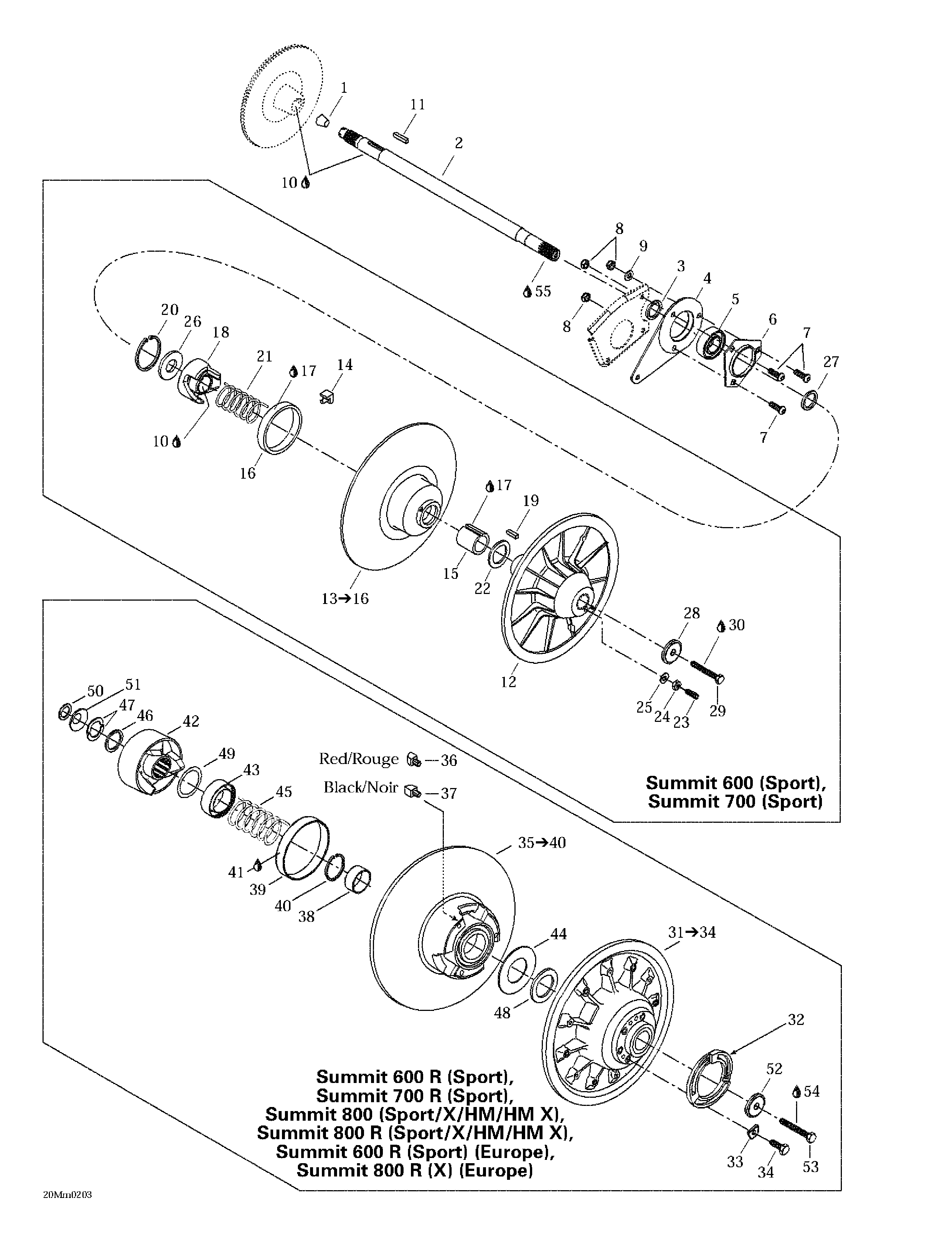

05- Driven Pulley для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1414784800 CorkCork
-
2501026300 CountershaftCountershaft
-
3504149100 SpacerSpacer
-
4080044200 Casting SpacerCasting Spacer
-
5504152026 Ball BearingBall Bearing
-
6501025000 FlangeFlange
-
7205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
8232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
11507021300 KeyKey
-
12417126477 Fixed Flange. Summit 600. Summit 700.Fixed Flange. Summit 600. Summit 700.
-
13417126486 Sliding Flange Ass'y. Includes 13 - 16. Summit 600. Summit 700.Sliding Flange Ass'y. Includes 13 - 16. Summit 600. Summit 700.
-
14414918000 Cam Slider Shoe. Summit 600. Summit 700.Cam Slider Shoe. Summit 600. Summit 700.
-
15415011200 Bushing. Summit 600. Summit 700.Bushing. Summit 600. Summit 700.
-
16414876600 Bushing Garlock. Summit 600. Summit 700.Bushing Garlock. Summit 600. Summit 700.
-
17413703100 Loctite 609, 10 ml. Summit 600. Summit 700.Loctite 609, 10 ml. Summit 600. Summit 700.
-
18417126333 Cam 44 Deg. (Summit 600 (Sport)). Summit 600.Cam 44 Deg. (Summit 600 (Sport)). Summit 600.
-
417126337 Cam 47 Deg. (Summit 700 (Sport)). Summit 700.Cam 47 Deg. (Summit 700 (Sport)). Summit 700.
-
19414820800 Key. Summit 600. Summit 700.Key. Summit 600. Summit 700.
-
20371903100 Circlip. Summit 600. Summit 700.Circlip. Summit 600. Summit 700.
-
21414558900 Release Spring (Beige). Summit 600. Summit 700.Release Spring (Beige). Summit 600. Summit 700.
-
22504141900 Thrust Washer. Summit 600. Summit 700.Thrust Washer. Summit 600. Summit 700.
-
23206263044 Socket Set Screw M6 x 30. Summit 600. Summit 700.Socket Set Screw M6 x 30. Summit 600. Summit 700.
-
24232061414 Hex. Nut M6. Summit 600. Summit 700.Hex. Nut M6. Summit 600. Summit 700.
-
25420245370 Washer. Summit 600. Summit 700.Washer. Summit 600. Summit 700.
-
26504141800 Washer. Summit 600. Summit 700.Washer. Summit 600. Summit 700.
-
27504149100 Spacer. Summit 600. Summit 700.Spacer. Summit 600. Summit 700.
-
28517302322 Strength Washer. Summit 600. Summit 700.Strength Washer. Summit 600. Summit 700.
-
29207087544 Hex. Screw M8 x 75. Summit 600. Summit 700.Hex. Screw M8 x 75. Summit 600. Summit 700.
-
30293800060 Loctite 243, 10 ml. Summit 600. Summit 700.Loctite 243, 10 ml. Summit 600. Summit 700.
-
31417126527 Fixed Flange Ass'y. Includes 31 - 34.Fixed Flange Ass'y. Includes 31 - 34.
-
32415005800 Adjustment RingAdjustment Ring
-
33415005900 Adjustment ShimAdjustment Shim
-
34207162544 Hex. Screw M6 x 25 (3)Hex. Screw M6 x 25 (3)
-
207162244 Hex. Screw M6 x 22 (3)Hex. Screw M6 x 22 (3)
-
35417126318 Sliding Flange Ass'y. Includes 35 - 40.Sliding Flange Ass'y. Includes 35 - 40.
-
36417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
37417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
39414978100 BushingBushing
-
40371911200 CirclipCirclip
-
41413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
42417126385 Cam Ass'y (Summit 600 R (Sport)). Summit 600.Cam Ass'y (Summit 600 R (Sport)). Summit 600.
-
417126385 Cam Ass'y. (Summit 600 R (Sport)) (Europe) Summit 600.Cam Ass'y. (Summit 600 R (Sport)) (Europe) Summit 600.
-
417126445 Cam Ass'y (Summit 700 R (Sport)). Summit 700.Cam Ass'y (Summit 700 R (Sport)). Summit 700.
-
417126445 Cam Ass'y. (Summit 800 (Sport, X, HM, HMX)) Summit 800.Cam Ass'y. (Summit 800 (Sport, X, HM, HMX)) Summit 800.
-
417126445 Cam Ass'y. (Summit 800 R (Sport, X, HM, HMX)) Summit 800.Cam Ass'y. (Summit 800 R (Sport, X, HM, HMX)) Summit 800.
-
417126385 Cam Ass'y (Summit800 R (X)) (Europe). Summit 800.Cam Ass'y (Summit800 R (X)) (Europe). Summit 800.
-
43417126381 GuardGuard
-
44504099600 Thrust WasherThrust Washer
-
45414978300 Release SpringRelease Spring
-
46417126375 SpacerSpacer
-
47371911000 Half KeyHalf Key
-
48504112300 ShimShim
-
49417126322 Swivel AbutmentSwivel Abutment
-
50417300054 SpacerSpacer
-
51417300055 ProtectorProtector
-
52517302322 Strength WasherStrength Washer
-
53207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
54293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
55293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
