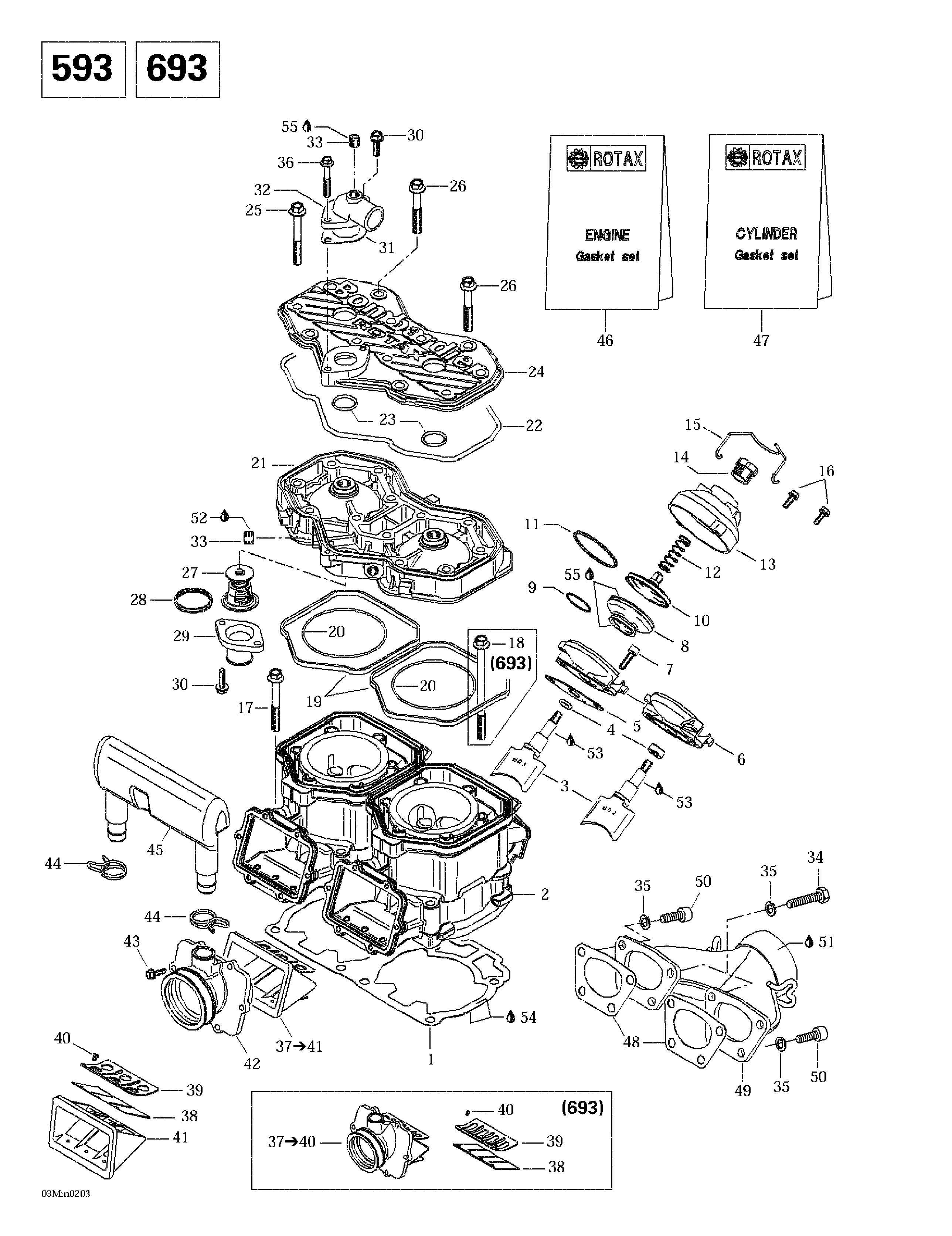

01- Cylinder, Exhaust Manifold, Reed Valve (593 для BRP Ski-Doo Summit 600/700/800 - 2002
-
№АртикулНазвание
-
1420931584 Gasket 0.8 mm. Summit 600.Gasket 0.8 mm. Summit 600.
-
420931895 Gasket 0.8 mm. Summit 700.Gasket 0.8 mm. Summit 700.
-
420931962 Gasket 0.7 mm. Summit 600.Gasket 0.7 mm. Summit 600.
-
420931894 Gasket 0.7 mm. Summit 700.Gasket 0.7 mm. Summit 700.
-
420931582 Gasket 0.6 mm. Summit 600.Gasket 0.6 mm. Summit 600.
-
420931892 Gasket 0.6 mm. Summit 700.Gasket 0.6 mm. Summit 700.
-
420931583 Gasket 0.5 mm. Summit 600.Gasket 0.5 mm. Summit 600.
-
420931893 Gasket 0.5 mm. Summit 700.Gasket 0.5 mm. Summit 700.
-
420931581 Gasket 0.4 mm. Summit 600.Gasket 0.4 mm. Summit 600.
-
2420613625 Cylinder with Sleeve. Summit 600.Cylinder with Sleeve. Summit 600.
-
420923695 Nicasil Cylinder. Summit 700.Nicasil Cylinder. Summit 700.
-
3420854370 Exhaust Valve. Summit 600.Exhaust Valve. Summit 600.
-
420854332 Exhaust Valve. Summit 700.Exhaust Valve. Summit 700.
-
4420430110 O-Ring. Summit 600.O-Ring. Summit 600.
-
420950730 Oil Seal. Summit 600. Summit 700.Oil Seal. Summit 600. Summit 700.
-
5420250239 Gasket. Summit 600. Summit 700.Gasket. Summit 600. Summit 700.
-
6420854267 Valve Housing. Summit 600.Valve Housing. Summit 600.
-
420854266 Valve Housing. Summit 600. Summit 700.Valve Housing. Summit 600. Summit 700.
-
7205062044 Socket Head Screw M6 x 20. Summit 600. Summit 700.Socket Head Screw M6 x 20. Summit 600. Summit 700.
-
8290260723 Bellows. Summit 600. Summit 700.Bellows. Summit 600. Summit 700.
-
9420838253 Spring Clamp. Summit 600. Summit 700.Spring Clamp. Summit 600. Summit 700.
-
10420854449 Exhaust Valve. Summit 600. Summit 700.Exhaust Valve. Summit 600. Summit 700.
-
11290239048 Hose Spring. Summit 600. Summit 700.Hose Spring. Summit 600. Summit 700.
-
12420239944 Spring. Summit 600. Summit 700.Spring. Summit 600. Summit 700.
-
13420911552 Valve Cover. Summit 600. Summit 700.Valve Cover. Summit 600. Summit 700.
-
14420241221 Adjuster Screw. Summit 600. Summit 700.Adjuster Screw. Summit 600. Summit 700.
-
15420838083 Spring Clip. Summit 600.Spring Clip. Summit 600.
-
16420841555 Tapping Screw M5 x 20. Summit 600. Summit 700.Tapping Screw M5 x 20. Summit 600. Summit 700.
-
17420640524 Hex Collar Screw M10 x 80. Summit 700.Hex Collar Screw M10 x 80. Summit 700.
-
420640951 Hex. Screw M8 x 68.5. Summit 600.Hex. Screw M8 x 68.5. Summit 600.
-
18420640534 Hex Collar Screw M10 x 120. Summit 700.Hex Collar Screw M10 x 120. Summit 700.
-
19420931590 Rubber Ring. Summit 600. Summit 700.Rubber Ring. Summit 600. Summit 700.
-
20293300026 O-Ring. Summit 600.O-Ring. Summit 600.
-
420931840 O-Ring. Summit 700.O-Ring. Summit 700.
-
21420923452 Cylinder Head (Silver). Summit 600.Cylinder Head (Silver). Summit 600.
-
420923457 Cylinder Head (Silver). Summit 700.Cylinder Head (Silver). Summit 700.
-
22290950320 O-Ring. Summit 600. Summit 700.O-Ring. Summit 600. Summit 700.
-
23420430782 O-Ring. Summit 600. Summit 700.O-Ring. Summit 600. Summit 700.
-
24420923460 Cylinder Head Cover (Silver). Summit 600. Summit 700.Cylinder Head Cover (Silver). Summit 600. Summit 700.
-
25420841306 Hex. Collar Screw M8 x 65. Summit 600. Summit 700.Hex. Collar Screw M8 x 65. Summit 600. Summit 700.
-
26420941621 Hex. Collar Screw M8 x 56.5. Summit 600. Summit 700.Hex. Collar Screw M8 x 56.5. Summit 600. Summit 700.
-
27420922515 Thermostat (42 Deg.). Summit 600. Summit 700.Thermostat (42 Deg.). Summit 600. Summit 700.
-
28420931270 Sealing Ring. Summit 600. Summit 700.Sealing Ring. Summit 600. Summit 700.
-
29420922025 Bent Outlet Socket. Summit 600. Summit 700.Bent Outlet Socket. Summit 600. Summit 700.
-
30420941250 Screw M6 x 20. Summit 600. Summit 700.Screw M6 x 20. Summit 600. Summit 700.
-
31420850338 Gasket. Summit 600. Summit 700.Gasket. Summit 600. Summit 700.
-
32420922062 Bent Outlet Socket. Summit 600. Summit 700.Bent Outlet Socket. Summit 600. Summit 700.
-
33420240480 Plug Screw 1/8-27 NPT. Summit 600. Summit 700.Plug Screw 1/8-27 NPT. Summit 600. Summit 700.
-
34207182044 Hex. Screw M8 x 20. Summit 600.Hex. Screw M8 x 20. Summit 600.
-
35234181401 Lock Washer 8 mm. Summit 600.Lock Washer 8 mm. Summit 600.
-
234161471 Lock Washer 6 mm. Summit 700.Lock Washer 6 mm. Summit 700.
-
36420941451 Hex. Collar Screw M6 x 40. Summit 600. Summit 700.Hex. Collar Screw M6 x 40. Summit 600. Summit 700.
-
37420924519 Reed Valve Ass'y. Includes 37 - 41. Summit 600.Reed Valve Ass'y. Includes 37 - 41. Summit 600.
-
37420867873 Carburetor Socket. Includes 37 - 40. Summit 700.Carburetor Socket. Includes 37 - 40. Summit 700.
-
38420924680 Pedal Reed. Summit 700.Pedal Reed. Summit 700.
-
420924532 Pedal Reed. Summit 600.Pedal Reed. Summit 600.
-
39420924539 Reed Pedal Stop. Summit 600.Reed Pedal Stop. Summit 600.
-
420924695 Reed Pedal Stop. Summit 700.Reed Pedal Stop. Summit 700.
-
40420941215 Screw M3 x 5. Summit 600. Summit 700.Screw M3 x 5. Summit 600. Summit 700.
-
42420867882 Carburetor Socket. Summit 600.Carburetor Socket. Summit 600.
-
43420941925 Screw M5 x 16. Summit 600. Summit 700.Screw M5 x 16. Summit 600. Summit 700.
-
44420851440 Clamp. Summit 600. Summit 700.Clamp. Summit 600. Summit 700.
-
45420867817 Intake Resonator. Summit 600. Summit 700.Intake Resonator. Summit 600. Summit 700.
-
46420888583 Engine Gasket Set. Summit 600.Engine Gasket Set. Summit 600.
-
420888603 Engine Gasket Set. Summit 700.Engine Gasket Set. Summit 700.
-
47420888588 Cylinder Gasket Set. Summit 600.Cylinder Gasket Set. Summit 600.
-
420888608 Cylinder Gasket Set. Summit 700.Cylinder Gasket Set. Summit 700.
-
48420931610 Gasket. Summit 600.Gasket. Summit 600.
-
420850552 Gasket. Summit 700.Gasket. Summit 700.
-
49420979543 Exhaust Manifold. Summit 600.Exhaust Manifold. Summit 600.
-
420973591 Exhaust Manifold. Summit 700.Exhaust Manifold. Summit 700.
-
50205082544 Socket Head Screw M8 x 25. Summit 600.Socket Head Screw M8 x 25. Summit 600.
-
205062044 Socket Head Screw M6 x 20. Summit 700.Socket Head Screw M6 x 20. Summit 700.
-
51293800090 Sealant, Loctite 30542, 80 ml. Summit 600. Summit 700.Sealant, Loctite 30542, 80 ml. Summit 600. Summit 700.
-
52293800060 Loctite 243, 10 ml. Summit 600. Summit 700.Loctite 243, 10 ml. Summit 600. Summit 700.
-
53711297433 Molykote G-n Paste, Dow Corning,. 88162-74, 50 g Summit 600. Summit 700.Molykote G-n Paste, Dow Corning,. 88162-74, 50 g Summit 600. Summit 700.
-
54293800038 Loctite 518, 50 ml. Summit 600. Summit 700.Loctite 518, 50 ml. Summit 600. Summit 700.
-
55420297906 Sealing Compound, 30 ml. Summit 600. Summit 700.Sealing Compound, 30 ml. Summit 600. Summit 700.
