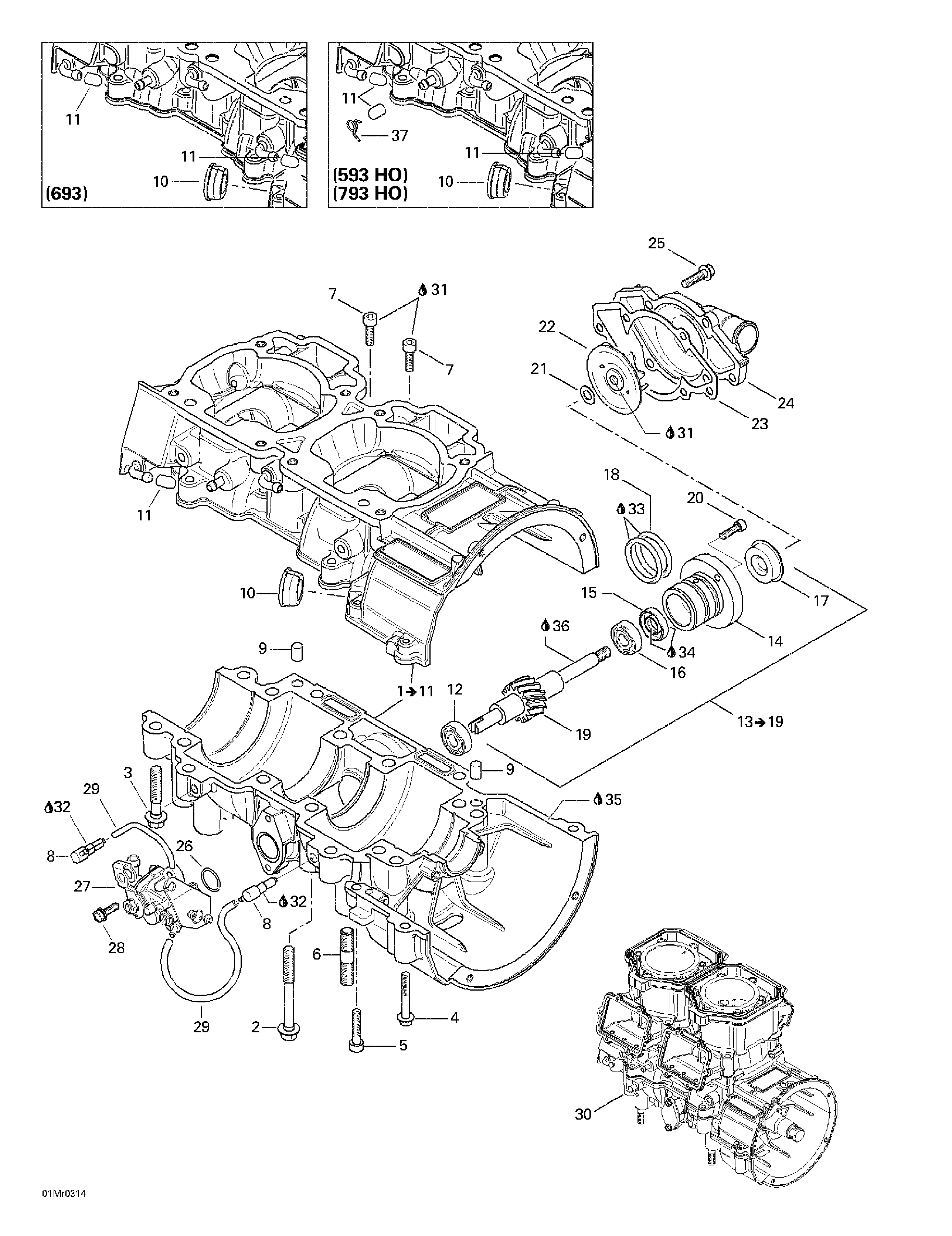

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003

№

Артикул

Название
1

420889083 Crankcase ass'y. Includes 1 - 11. Summit 600 HO. Summit 700.

Crankcase ass'y. Includes 1 - 11. Summit 600 HO. Summit 700.

0 ₽
1

420889681 Crankcase ass'y. Includes 1 - 11. Summit 800 HO.

Crankcase ass'y. Includes 1 - 11. Summit 800 HO.

0 ₽
2

420640836 Hex collar screw M8 x 75

Hex collar screw M8 x 75

990 ₽
3

420640431 Hex collar screw M8 x 45

Hex collar screw M8 x 45

0 ₽
4

420640311 Hex collar screw M6 x 45

Hex collar screw M6 x 45

370 ₽
5

205063044 Socket head screw M6 x 30

Socket head screw M6 x 30

550 ₽
6

420641834 Stud M10 x 29

Stud M10 x 29

800 ₽
7

420840401 Socket head screw M6 x 22

Socket head screw M6 x 22

140 ₽
8

420956510 Check valve

Check valve

3 130 ₽
9

290632010 Dowel pin

Dowel pin

0 ₽
10

420860965 Cable grommet

Cable grommet

1 150 ₽
11

420960770 Cap

Cap

380 ₽
420960777 Cap

Cap

170 ₽
12

420232100 Ball bearing

Ball bearing

10 030 ₽
13

420837421 Water pump/oil Pump ass'y. Includes 13 - 19.

Water pump/oil Pump ass'y. Includes 13 - 19.

112 000 ₽
15

420230195 Oil seal

Oil seal

5 600 ₽
16

420232100 Ball bearing

Ball bearing

10 030 ₽
17

420650370 Rotary Seal

Rotary Seal

25 480 ₽
18

420950890 O-ring

O-ring

1 540 ₽
20

420840511 Socket head screw M5 x 16

Socket head screw M5 x 16

670 ₽
21

420227945 Washer

Washer

1 450 ₽
22

420222505 Water impeller

Water impeller

6 480 ₽
23

420931810 Gasket

Gasket

4 520 ₽
24

420922630 Water pump housing

Water pump housing

5 020 ₽
25

420240031 Hex screw M6 x 25

Hex screw M6 x 25

280 ₽
26

420230400 O-ring

O-ring

0 ₽
27

420888780 Oil pump ass'y. Summit 600 HO.

Oil pump ass'y. Summit 600 HO.

124 250 ₽
420888770 Oil pump ass'y. Summit 700. Summit 800 HO.

Oil pump ass'y. Summit 700. Summit 800 HO.

31 630 ₽
28

420941925 Screw M5 x 16

Screw M5 x 16

180 ₽
29

414413800 Oil line

Oil line

300 ₽
30

420059340 Short block ass'y. Summit 600 HO.

Short block ass'y. Summit 600 HO.

0 ₽
420069308 Short block ass'y. Summit 700.

Short block ass'y. Summit 700.

0 ₽
420079340 Short block ass'y. Summit 800 HO.

Short block ass'y. Summit 800 HO.

0 ₽
31

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
32

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
33

413707000 Molykote 111

Molykote 111

7 550 ₽
34

420899271 Petamo grease, GHY133N, 400 g

Petamo grease, GHY133N, 400 g

8 190 ₽
35

420297906 Sealing compound, 30 ml

Sealing compound, 30 ml

3 950 ₽
36

413802900 Injection oil (12 x 1 Liter)

Injection oil (12 x 1 Liter)

1 050 ₽
37

420938190 Clamp (HO). Summit 600 HO. Summit 800 HO.

Clamp (HO). Summit 600 HO. Summit 800 HO.

200 ₽
