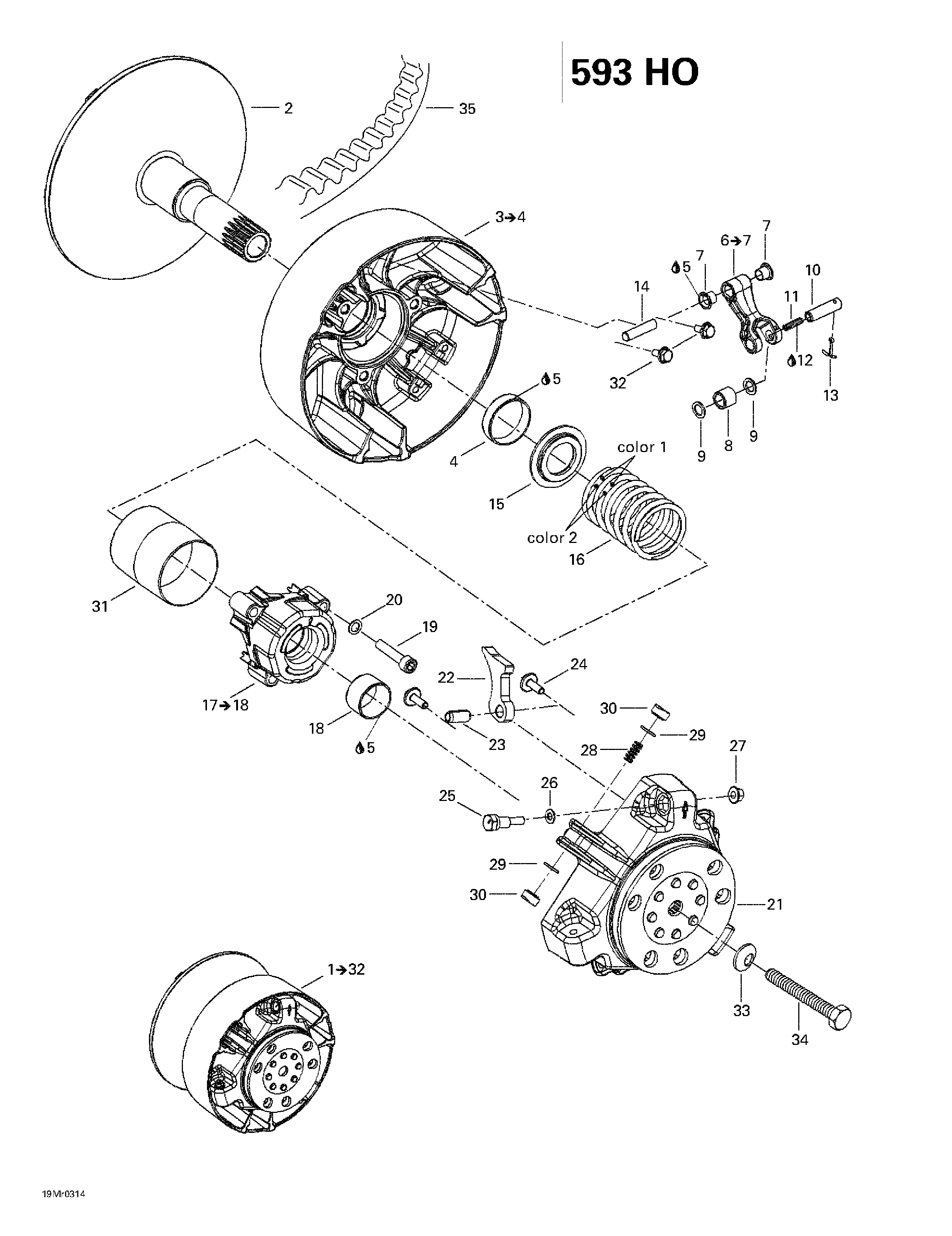

05- Drive Pulley (593 HO) для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003

№

Артикул

Название
2

417222294 Fixed flange ass'y. Summit 600 HO.

Fixed flange ass'y. Summit 600 HO.

0 ₽
3

417222181 Sliding flange ass'y. Includes 3 - 4. Summit 600 HO.

Sliding flange ass'y. Includes 3 - 4. Summit 600 HO.

70 700 ₽
4

417006900 Bushing. Summit 600 HO.

Bushing. Summit 600 HO.

0 ₽
5

413703100 Loctite 609, 10 ml. Summit 600 HO.

Loctite 609, 10 ml. Summit 600 HO.

2 760 ₽
6

417222306 Lever ass'y. Includes 6 - 7. Summit 600 HO.

Lever ass'y. Includes 6 - 7. Summit 600 HO.

0 ₽
7

417004305 Bushing. Summit 600 HO.

Bushing. Summit 600 HO.

3 180 ₽
8

417003900 Roller ass'y. Summit 600 HO.

Roller ass'y. Summit 600 HO.

0 ₽
9

417004302 Stopper washer. Summit 600 HO.

Stopper washer. Summit 600 HO.

3 010 ₽
10

417222477 Pin. STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

Pin. STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

2 340 ₽
417004308 Pin. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

Pin. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

5 010 ₽
11

206262099 Pressure screw M6 x 20. Summit 600 HO.

Pressure screw M6 x 20. Summit 600 HO.

300 ₽
12

293800060 Loctite 243, 10 ml. Summit 600 HO.

Loctite 243, 10 ml. Summit 600 HO.

2 760 ₽
13

732958001 Cotter pin. Summit 600 HO.

Cotter pin. Summit 600 HO.

80 ₽
14

417009202 Lever axle. Summit 600 HO.

Lever axle. Summit 600 HO.

220 ₽
15

417222312 Spring seat. Summit 600 HO.

Spring seat. Summit 600 HO.

2 970 ₽
16

417222371 Spring (green/white). STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

Spring (green/white). STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

3 680 ₽
415034900 Spring (violet/blue). RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

Spring (violet/blue). RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

3 680 ₽
17

417007500 Spring cover ass'y. Includes 17 - 18. Summit 600 HO.

Spring cover ass'y. Includes 17 - 18. Summit 600 HO.

16 100 ₽
18

417009204 Bushing. Summit 600 HO.

Bushing. Summit 600 HO.

6 060 ₽
19

205084044 Socket screw M8 x 40. Summit 600 HO.

Socket screw M8 x 40. Summit 600 HO.

1 050 ₽
20

250200009 Self stop spring washer M8. Summit 600 HO.

Self stop spring washer M8. Summit 600 HO.

890 ₽
21

417222213 Regulator cup. Summit 600 HO.

Regulator cup. Summit 600 HO.

0 ₽
22

417222552 Ramp 417. STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

Ramp 417. STD 600 HO ADRENALINE. RER 600 HO ADRENALINE Summit 600 HO.

3 180 ₽
417222596 Ramp 410. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

Ramp 410. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO.

3 120 ₽
23

250400009 Rolled pin. Summit 600 HO.

Rolled pin. Summit 600 HO.

0 ₽
24

250000059 Hex flanged screw M6 x 18. Summit 600 HO.

Hex flanged screw M6 x 18. Summit 600 HO.

0 ₽
25

417005500 Calibration screw. Summit 600 HO.

Calibration screw. Summit 600 HO.

0 ₽
26

417005600 Washer. Summit 600 HO.

Washer. Summit 600 HO.

1 540 ₽
27

233061414 Hex flanged nut M6. Summit 600 HO.

Hex flanged nut M6. Summit 600 HO.

600 ₽
28

417005700 Spring. Summit 600 HO.

Spring. Summit 600 HO.

1 560 ₽
29

732401030 O-ring. Summit 600 HO.

O-ring. Summit 600 HO.

330 ₽
30

417005800 Slider shoe. Summit 600 HO.

Slider shoe. Summit 600 HO.

0 ₽
31

417009205 Guard. Summit 600 HO.

Guard. Summit 600 HO.

5 880 ₽
32

210361296 Hex forming screw M6 x 12. Summit 600 HO.

Hex forming screw M6 x 12. Summit 600 HO.

0 ₽
33

250200006 Conical spring washer. Summit 600 HO.

Conical spring washer. Summit 600 HO.

2 570 ₽
34

417120000 Drive pulley bolt. Summit 600 HO.

Drive pulley bolt. Summit 600 HO.

21 980 ₽
35

417300197 Courroie. Summit 600 HO.

Courroie. Summit 600 HO.

74 410 ₽
