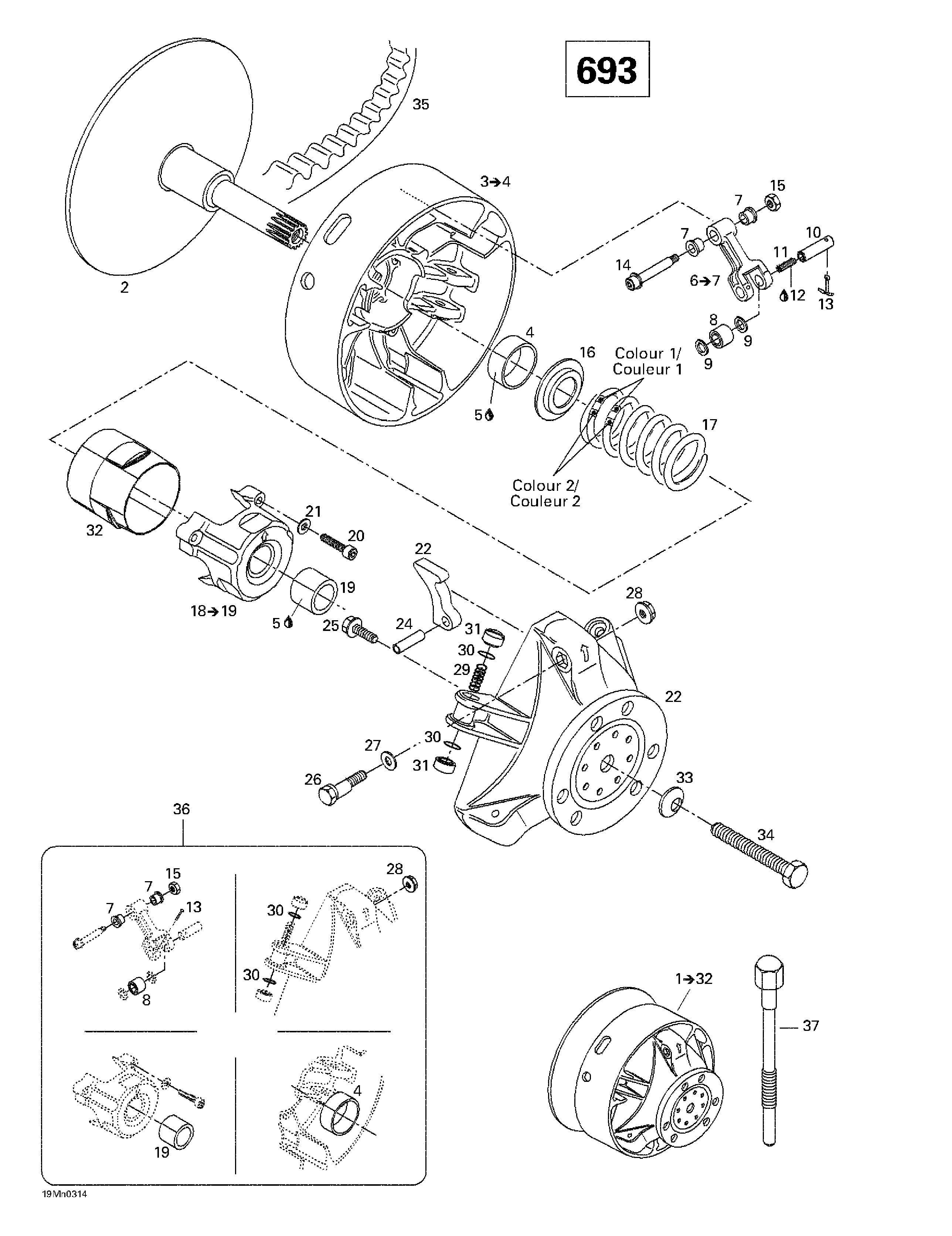

05- Drive Pulley (693) для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
2417222411 Fixed flange ass'y. Summit 700.Fixed flange ass'y. Summit 700.
-
3417222241 Sliding flange ass'y. Includes 3 - 4. Summit 700.Sliding flange ass'y. Includes 3 - 4. Summit 700.
-
4417004201 Bushing. Summit 700.Bushing. Summit 700.
-
5413703100 Loctite 609, 10 ml. Summit 700.Loctite 609, 10 ml. Summit 700.
-
6417222383 Lever ass'y. Includes 6 - 7. Summit 700.Lever ass'y. Includes 6 - 7. Summit 700.
-
7417004305 Bushing. Summit 700.Bushing. Summit 700.
-
8417003900 Roller ass'y. Summit 700.Roller ass'y. Summit 700.
-
9417004302 Stopper washer. Summit 700.Stopper washer. Summit 700.
-
10417222477 Pin. Summit 700.Pin. Summit 700.
-
11206262099 Pressure screw M6 x 20. Summit 700.Pressure screw M6 x 20. Summit 700.
-
12293800060 Loctite 243, 10 ml. Summit 700.Loctite 243, 10 ml. Summit 700.
-
13732958001 Cotter pin. Summit 700.Cotter pin. Summit 700.
-
14417004800 Screw ass'y. Summit 700.Screw ass'y. Summit 700.
-
15232561414 Hex elastic flanged nut M6. Summit 700.Hex elastic flanged nut M6. Summit 700.
-
16417222044 Spring seat. Summit 700.Spring seat. Summit 700.
-
17415015300 Spring (violet/yellow). Summit 700.Spring (violet/yellow). Summit 700.
-
18417222304 Spring cover ass'y. Includes 18 - 19. Summit 700.Spring cover ass'y. Includes 18 - 19. Summit 700.
-
19417004501 Bushing. Summit 700.Bushing. Summit 700.
-
20250000038 Socket screw M6 x 40. Summit 700.Socket screw M6 x 40. Summit 700.
-
21420245370 Washer. Summit 700.Washer. Summit 700.
-
22417222081 Governor cup ass'y. Summit 700.Governor cup ass'y. Summit 700.
-
23417222372 Ramp 299. STD 700 ADRENALINE. STD 700 X. STD 700 HIGHMARK Summit 700.Ramp 299. STD 700 ADRENALINE. STD 700 X. STD 700 HIGHMARK Summit 700.
-
417222381 Ramp 300. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.Ramp 300. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
-
24732804009 Spring pin. Summit 700.Spring pin. Summit 700.
-
25210361890 Hex forming screw M6 x 18. Summit 700.Hex forming screw M6 x 18. Summit 700.
-
26417005500 Calibration screw. Summit 700.Calibration screw. Summit 700.
-
27417005600 Washer. Summit 700.Washer. Summit 700.
-
28233061414 Hex flanged nut M6. Summit 700.Hex flanged nut M6. Summit 700.
-
29417005700 Spring. Summit 700.Spring. Summit 700.
-
30732401030 O-ring. Summit 700.O-ring. Summit 700.
-
31417005800 Slider shoe. Summit 700.Slider shoe. Summit 700.
-
32417222176 Guard. Summit 700.Guard. Summit 700.
-
33250200006 Conical spring washer. Summit 700.Conical spring washer. Summit 700.
-
34417120000 Drive pulley bolt. Summit 700.Drive pulley bolt. Summit 700.
-
35417300127 Drive Belt. Summit 700.Drive Belt. Summit 700.
-
36417006100 Clutch repair kit. Summit 700.Clutch repair kit. Summit 700.
-
37529022400 Puller inner half. Summit 700.Puller inner half. Summit 700.
