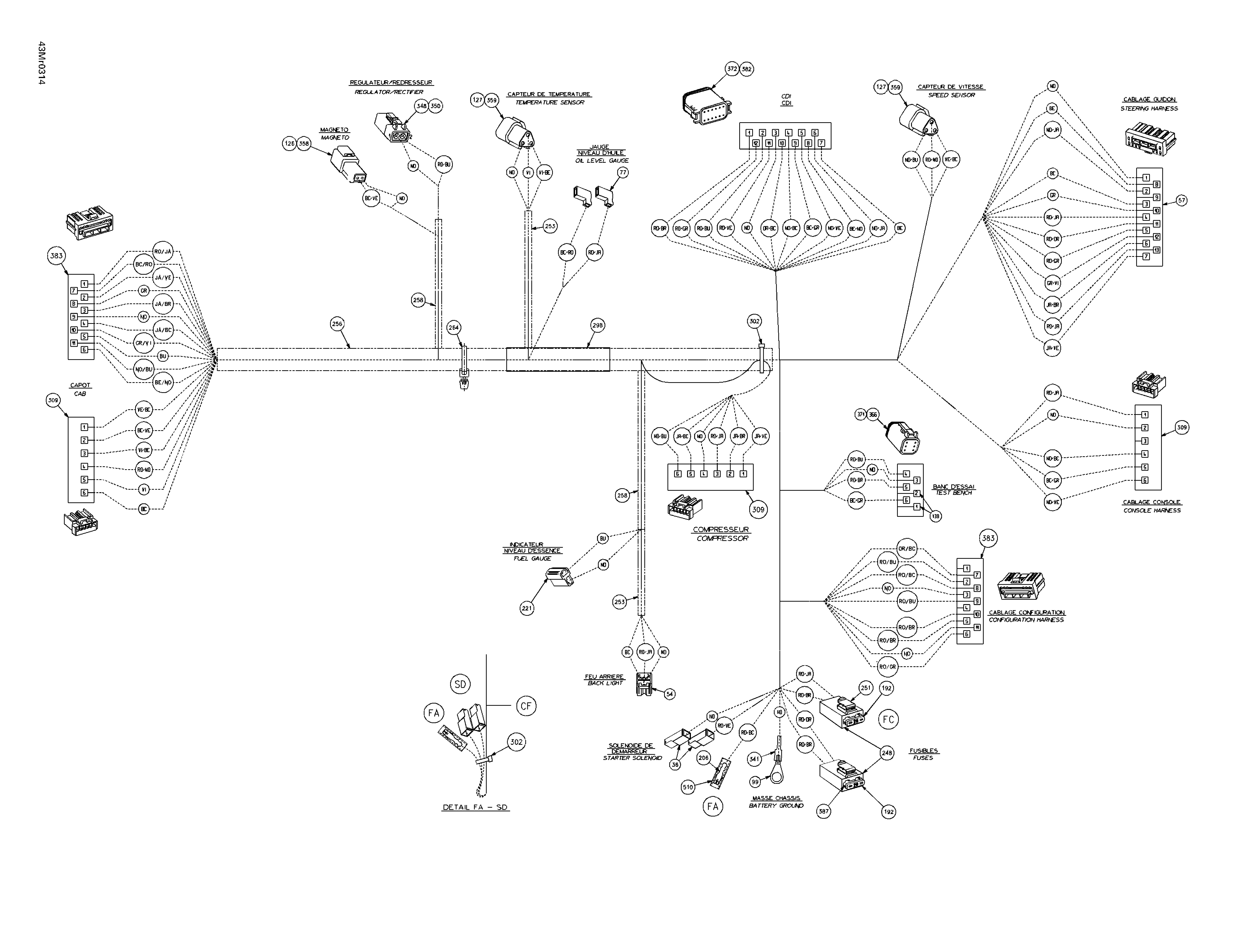

10- Frame Harness для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
34515175825 Frame harness. Includes 34 - 510.Frame harness. Includes 34 - 510.
-
34409010100 Female terminalFemale terminal
-
36515175350 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
44515175231 Female terminalFemale terminal
-
46515175282 Female terminalFemale terminal
-
54515175495 Female terminal housing (3 Circuits)Female terminal housing (3 Circuits)
-
57515175350 Female terminal housing (13 Circuits)Female terminal housing (13 Circuits)
-
77409010300 Female terminalFemale terminal
-
99278000992 Open barrelOpen barrel
-
110278000631 Male terminalMale terminal
-
111515175823 Male terminalMale terminal
-
112278000632 Female terminalFemale terminal
-
113278001661 Female terminalFemale terminal
-
126409207500 Male lockMale lock
-
127409207600 Male lockMale lock
-
138293000052 Sealing capSealing cap
-
172561503100 Female terminalFemale terminal
-
192409003900 Fuse (20 amperes)Fuse (20 amperes)
-
221409204600 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
248409004000 Fuse holderFuse holder
-
251409014200 ClipClip
-
253515175442 Housing (6 mm)Housing (6 mm)
-
256415080000 Tubing (16 mm)Tubing (16 mm)
-
258415079900 Tubing (10 mm)Tubing (10 mm)
-
264515175220 Tie rapTie rap
-
298293740005 Vinyl tape 3/4''Vinyl tape 3/4''
-
302293750001 Tie rap 94 mmTie rap 94 mm
-
309515175543 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
320515175567 Female terminalFemale terminal
-
348278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
350278001671 Male lock (4 circuits)Male lock (4 circuits)
-
358515175665 Male housingMale housing
-
359515175666 Male housingMale housing
-
366515175673 Male housing (6 circuits)Male housing (6 circuits)
-
383515175719 Female terminal housing (11 circuits)Female terminal housing (11 circuits)
-
510415079200 HoseHose
