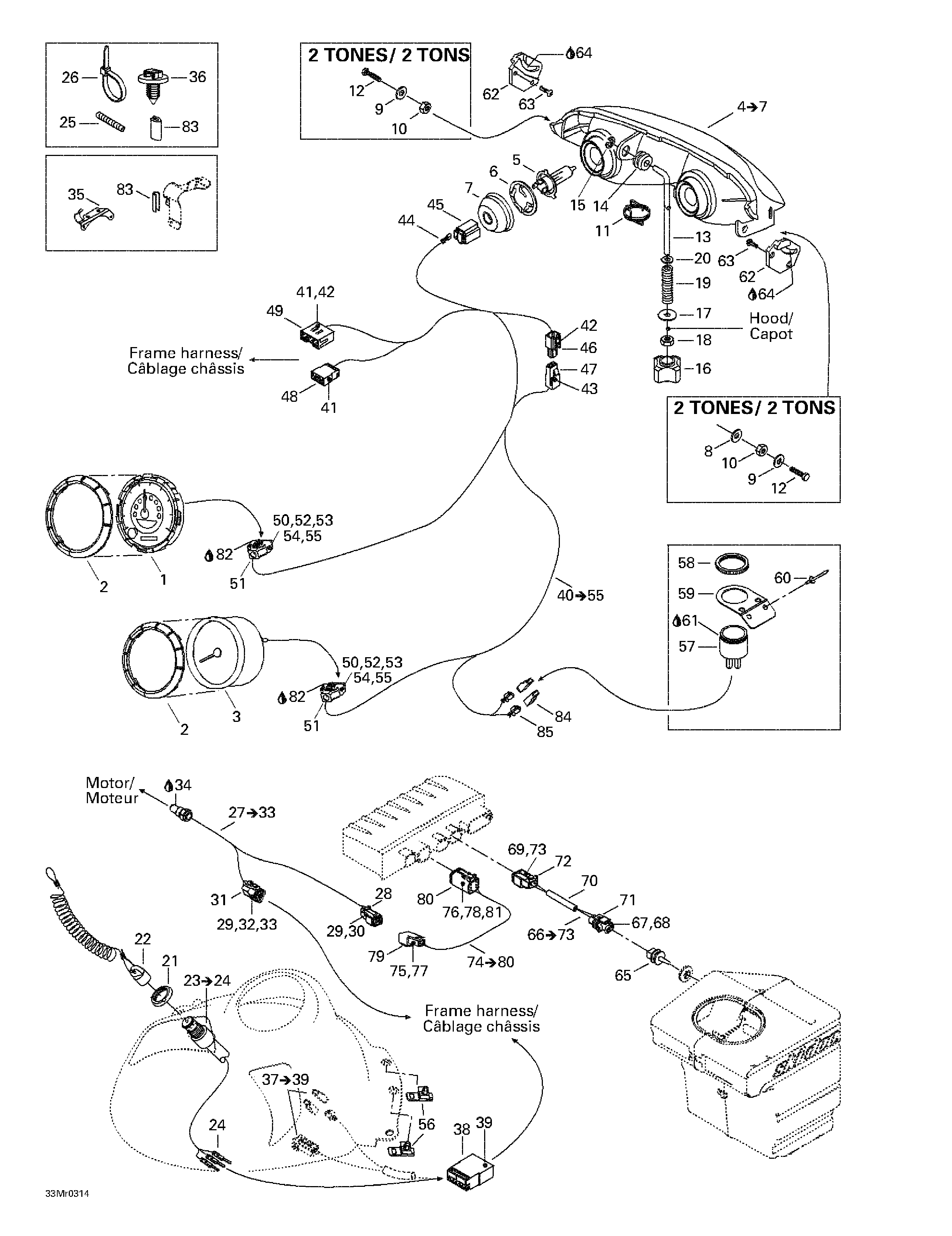

10- Electrical System для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1515175942 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515175943 TachometerTachometer
-
4515175909 Halogen headlamp. Includes 4 - 7.Halogen headlamp. Includes 4 - 7.
-
5410504401 Halogen bulbHalogen bulb
-
6515175910 Bulb holderBulb holder
-
7515175911 CoverCover
-
8234001410 Flat washer M10. 2 TONESFlat washer M10. 2 TONES
-
9234051410 Flat washer M5. 2 TONESFlat washer M5. 2 TONES
-
10250100018 Cushion nut M5 x 0.8mm. 2 TONESCushion nut M5 x 0.8mm. 2 TONES
-
11515175324 Spring. EUROPE 1 TONESpring. EUROPE 1 TONE
-
12207053544 Hex screw M5 x 35. 2 TONESHex screw M5 x 35. 2 TONES
-
13517295800 Adjuster rodAdjuster rod
-
14415100800 GrommetGrommet
-
15732610072 Push NutPush Nut
-
16515175548 HandleHandle
-
17224060251 WasherWasher
-
18232561414 Hex elastic nut M6Hex elastic nut M6
-
19415100600 SpringSpring
-
20234061410 Flat washer M6Flat washer M6
-
21278000508 Safety nutSafety nut
-
22515166900 D.E.S.S. capD.E.S.S. cap
-
23515175145 D.E.S.S. switch. Includes 23 - 24.D.E.S.S. switch. Includes 23 - 24.
-
24515175232 Male terminalMale terminal
-
25409901800 TubingTubing
-
415079900 Tubing 10 mmTubing 10 mm
-
26293750002 Tie-rap 130 mmTie-rap 130 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
414115200 Tie-rapTie-rap
-
293750009 Tie-rap 160 mmTie-rap 160 mm
-
27515175930 Temperature sensor. Includes 27 - 33.Temperature sensor. Includes 27 - 33.
-
28515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
29278000632 Female terminalFemale terminal
-
30515175675 Female lock (2 circuits)Female lock (2 circuits)
-
31515175671 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
32515175676 Female lock (3 circuits)Female lock (3 circuits)
-
33293000052 PlugPlug
-
34293800018 Loctite 592, pipe sealant, 50 gLoctite 592, pipe sealant, 50 g
-
35515175254 Cable supportCable support
-
36293730018 Mount dartMount dart
-
37515175826 Console Harness. Includes 37 - 39.Console Harness. Includes 37 - 39.
-
38515175662 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
39515175232 Male terminalMale terminal
-
40515175827 Hood harness. Includes 40 - 55.Hood harness. Includes 40 - 55.
-
41515175232 Male terminalMale terminal
-
42515175273 Male terminalMale terminal
-
43515175282 Male terminalMale terminal
-
44515175321 Female terminalFemale terminal
-
45409202700 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
46515175509 Male terminal housing (1 circuit)Male terminal housing (1 circuit)
-
47515175510 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
48515175662 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
49515175720 Male terminal housing (11 circuits)Male terminal housing (11 circuits)
-
50515175812 PlugPlug
-
51515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
52515175802 Housing supportHousing support
-
53515175803 SealSeal
-
54515175804 HousingHousing
-
55515175806 Female terminalFemale terminal
-
56515175283 Housing supportHousing support
-
57415060900 Horn. RERHorn. RER
-
58414805101 Plastic nut. RERPlastic nut. RER
-
59515175688 Plate. RERPlate. RER
-
60390402200 Pop rivet 3/16''. RERPop rivet 3/16''. RER
-
61296000309 Sealant Silicone, Clear. RERSealant Silicone, Clear. RER
-
62517289300 R.h. support. 1 TONER.h. support. 1 TONE
-
517289400 L.h. support. 1 TONEL.h. support. 1 TONE
-
63732601315 Headlamp screw. 1 TONEHeadlamp screw. 1 TONE
-
64413707500 Grease tube LMZ, 400 g. 1 TONEGrease tube LMZ, 400 g. 1 TONE
-
65270600000 Air sensor. DPM & DPM HOAir sensor. DPM & DPM HO
-
66515175703 Air temperature harness. Includes 66 - 73. DPM & DPM HOAir temperature harness. Includes 66 - 73. DPM & DPM HO
-
67278000998 Female terminalFemale terminal
-
68278000999 SealSeal
-
69278000632 Female terminalFemale terminal
-
70515175332 Low temperatue tubingLow temperatue tubing
-
71515175588 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
72515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
73515175706 Female lock (2 circuits)Female lock (2 circuits)
-
74515175898 Sensor harness. Includes 74 - 80.Sensor harness. Includes 74 - 80.
-
75278000631 Male terminalMale terminal
-
76278000632 Female terminalFemale terminal
-
77409207500 Male lock (2 circuits)Male lock (2 circuits)
-
78293000052 PlugPlug
-
79517175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
80515175673 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
81515175678 Male wedge (6 circuits)Male wedge (6 circuits)
-
82293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
83271000110 Protection trimProtection trim
-
84409010400 Female terminal housing (1 circuits)Female terminal housing (1 circuits)
-
85409010100 Female terminalFemale terminal
