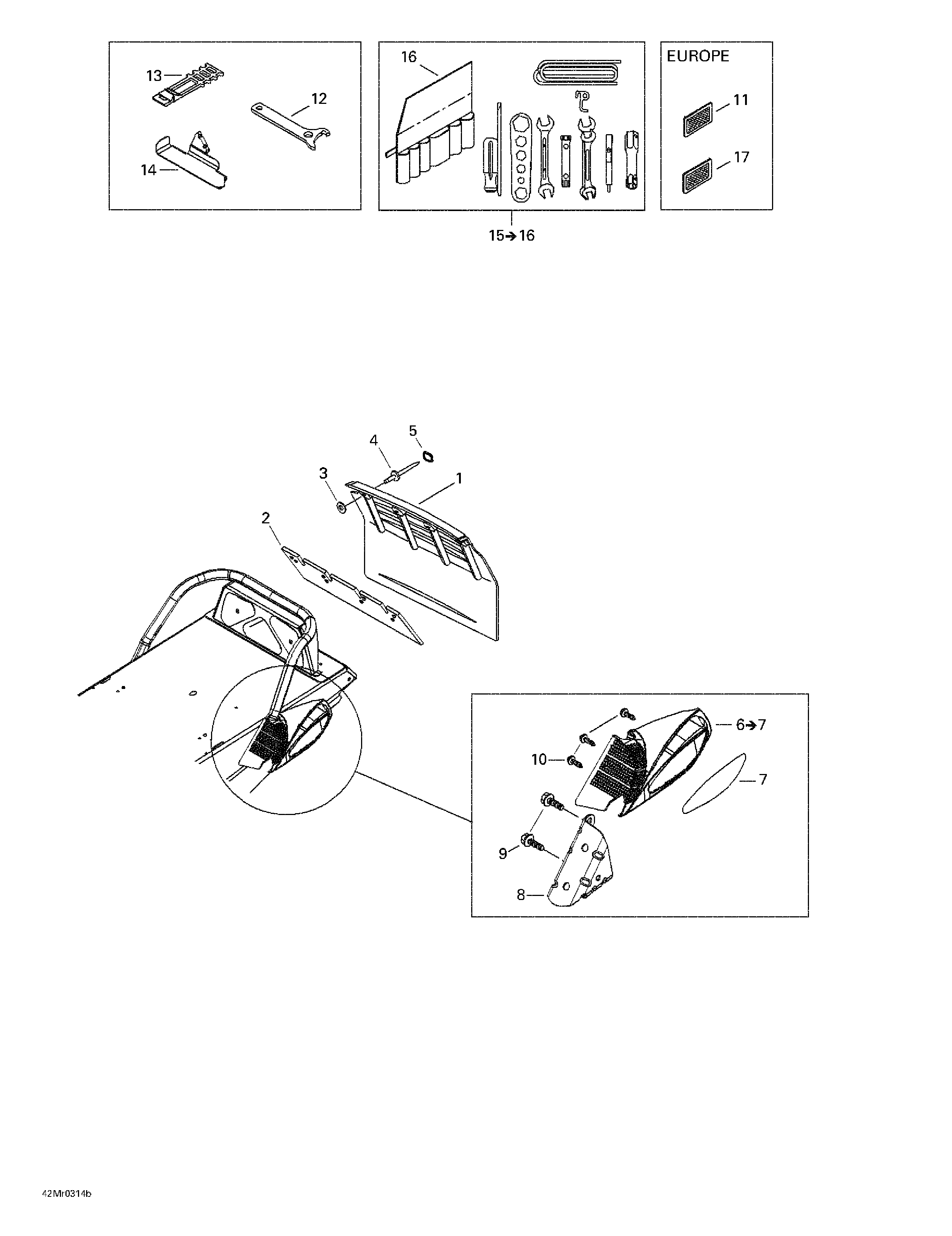

09- Snow Guard And Moulding для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1520000292 Snow guard. EUROPE Summit 600. Summit 800.Snow guard. EUROPE Summit 600. Summit 800.
-
572103803 Snow guardSnow guard
-
2572108200 ReinforcementReinforcement
-
3517225900 Flat washerFlat washer
-
4293150087 Pop rivet 3/16''Pop rivet 3/16''
-
5415073300 CapCap
-
6861779900 RH moulding kit. Includes 6 - 7.RH moulding kit. Includes 6 - 7.
-
861780000 L.h. moulding kitL.h. moulding kit
-
7516000237 R.h. reflector. C/UR.h. reflector. C/U
-
516000241 R.h. reflector. EUROPE Summit 600. Summit 800.R.h. reflector. EUROPE Summit 600. Summit 800.
-
516000238 LH reflector. C/ULH reflector. C/U
-
516000242 L.h. reflector. EUROPE Summit 600. Summit 800.L.h. reflector. EUROPE Summit 600. Summit 800.
-
8520000281 R.h. supportR.h. support
-
520000282 L.h. supportL.h. support
-
9207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
10243141640 Hex flanged pastite screw M4.8 x 16Hex flanged pastite screw M4.8 x 16
-
11520000271 Reflector (amber). EUROPE Summit 600. Summit 800.Reflector (amber). EUROPE Summit 600. Summit 800.
-
12529032900 Adjustment wrenchAdjustment wrench
-
13570069700 LatchLatch
-
14518321999 Tool kit supportTool kit support
-
15529035596 Tool kit. Includes 15 - 16.Tool kit. Includes 15 - 16.
-
16520000047 Tool bagTool bag
-
17415037900 Reflector (white). EUROPE Summit 600. Summit 800.Reflector (white). EUROPE Summit 600. Summit 800.
