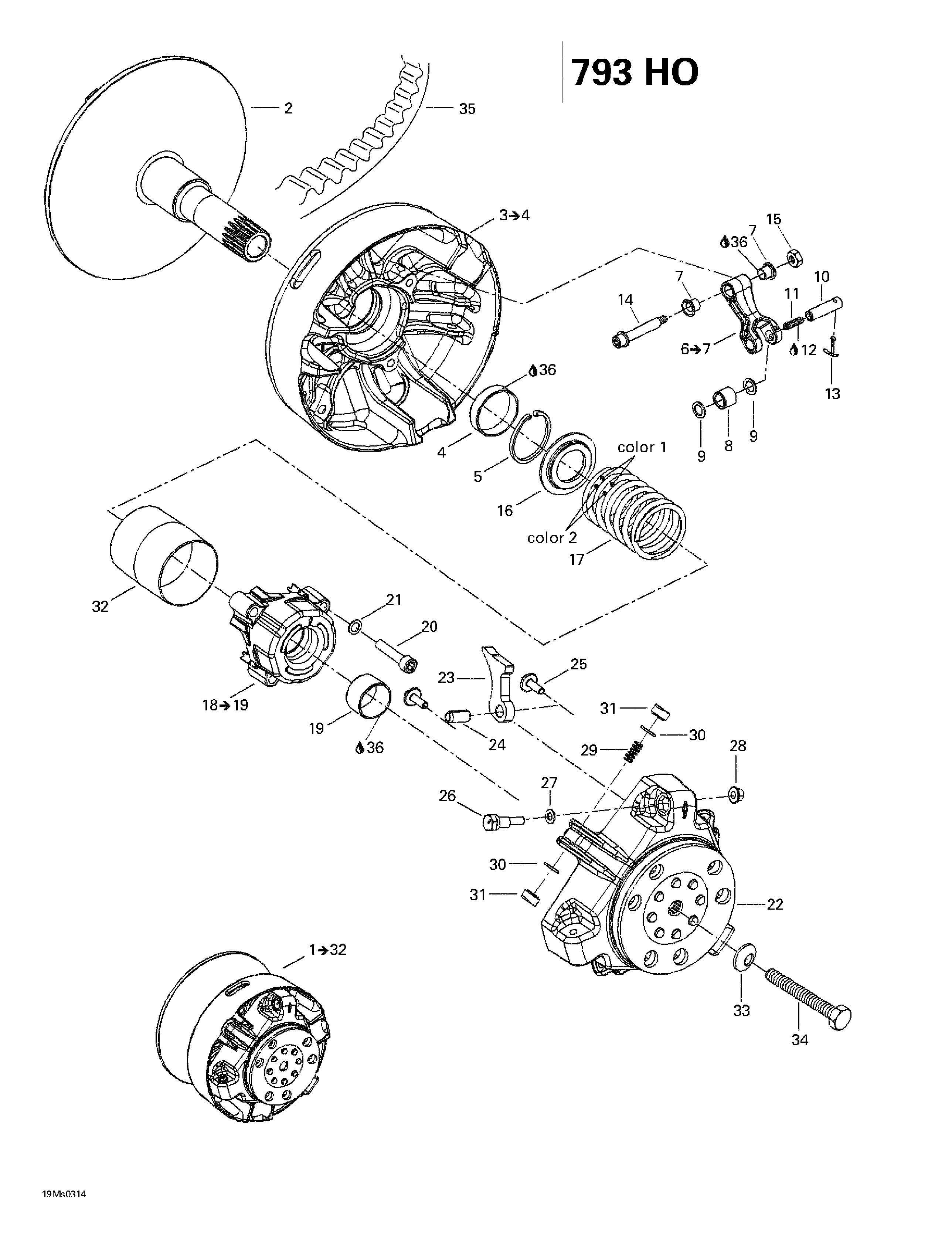

05- Drive Pulley (793 HO) для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
2417222167 Fixed flange ass'y. Summit 800 HO.Fixed flange ass'y. Summit 800 HO.
-
3417222171 Sliding flange ass'y. Includes 3 - 4. Summit 800 HO.Sliding flange ass'y. Includes 3 - 4. Summit 800 HO.
-
4417006900 Bushing. Summit 800 HO.Bushing. Summit 800 HO.
-
5293370037 Circlip. Summit 800 HO.Circlip. Summit 800 HO.
-
6417222306 Lever ass'y. Includes 6 - 7. Summit 800 HO.Lever ass'y. Includes 6 - 7. Summit 800 HO.
-
7417004305 Bushing. Summit 800 HO.Bushing. Summit 800 HO.
-
8417003900 Roller ass'y. Summit 800 HO.Roller ass'y. Summit 800 HO.
-
9417004302 Stopper washer. Summit 800 HO.Stopper washer. Summit 800 HO.
-
10417222477 Dowel pin. 800 HO Summit 800 HO.Dowel pin. 800 HO Summit 800 HO.
-
417222594 Pin. 800 HO (EUROPE) Summit 800 HO.Pin. 800 HO (EUROPE) Summit 800 HO.
-
11206262099 Pressure screw M6 x 20. 800 HO Summit 800 HO.Pressure screw M6 x 20. 800 HO Summit 800 HO.
-
12293800060 Loctite 243, 10 ml. 800 HO Summit 800 HO.Loctite 243, 10 ml. 800 HO Summit 800 HO.
-
13732958001 Cotter pin. Summit 800 HO.Cotter pin. Summit 800 HO.
-
14417222028 Srew ass'y. Summit 800 HO.Srew ass'y. Summit 800 HO.
-
15232561414 Hex stop nut M6. Summit 800 HO.Hex stop nut M6. Summit 800 HO.
-
16417222312 Spring seat. Summit 800 HO.Spring seat. Summit 800 HO.
-
17415015300 Spring (violet/yellow). Summit 800 HO.Spring (violet/yellow). Summit 800 HO.
-
18417007500 Spring cover ass'y. Includes 18 - 19. Summit 800 HO.Spring cover ass'y. Includes 18 - 19. Summit 800 HO.
-
19417009204 Bushing. Summit 800 HO.Bushing. Summit 800 HO.
-
20205084044 Socket screw M8 x 40. Summit 800 HO.Socket screw M8 x 40. Summit 800 HO.
-
21250200009 Self stop spring washer M8. Summit 800 HO.Self stop spring washer M8. Summit 800 HO.
-
22417222213 Regulator cup. Summit 800 HO.Regulator cup. Summit 800 HO.
-
23417222548 Ramp 415. Summit 800 HO.Ramp 415. Summit 800 HO.
-
24250400009 Rolled pin. Summit 800 HO.Rolled pin. Summit 800 HO.
-
25250000059 Hex flanged screw M6 x 18. Summit 800 HO.Hex flanged screw M6 x 18. Summit 800 HO.
-
26417005500 Calibration screw. Summit 800 HO.Calibration screw. Summit 800 HO.
-
27417005600 Washer. Summit 800 HO.Washer. Summit 800 HO.
-
28233061414 Hex flanged nut M6. Summit 800 HO.Hex flanged nut M6. Summit 800 HO.
-
29417005700 Spring. Summit 800 HO.Spring. Summit 800 HO.
-
30732401030 O-ring. Summit 800 HO.O-ring. Summit 800 HO.
-
31417222362 Slider shoe. Summit 800 HO.Slider shoe. Summit 800 HO.
-
32417009205 Guard. Summit 800 HO.Guard. Summit 800 HO.
-
33250200006 Conical spring washer. Summit 800 HO.Conical spring washer. Summit 800 HO.
-
34417120000 Drive pulley bolt. Summit 800 HO.Drive pulley bolt. Summit 800 HO.
-
35417300166 Courroie. Summit 800 HO.Courroie. Summit 800 HO.
-
36413703100 Loctite 609, 10 ml. Summit 800 HO.Loctite 609, 10 ml. Summit 800 HO.
