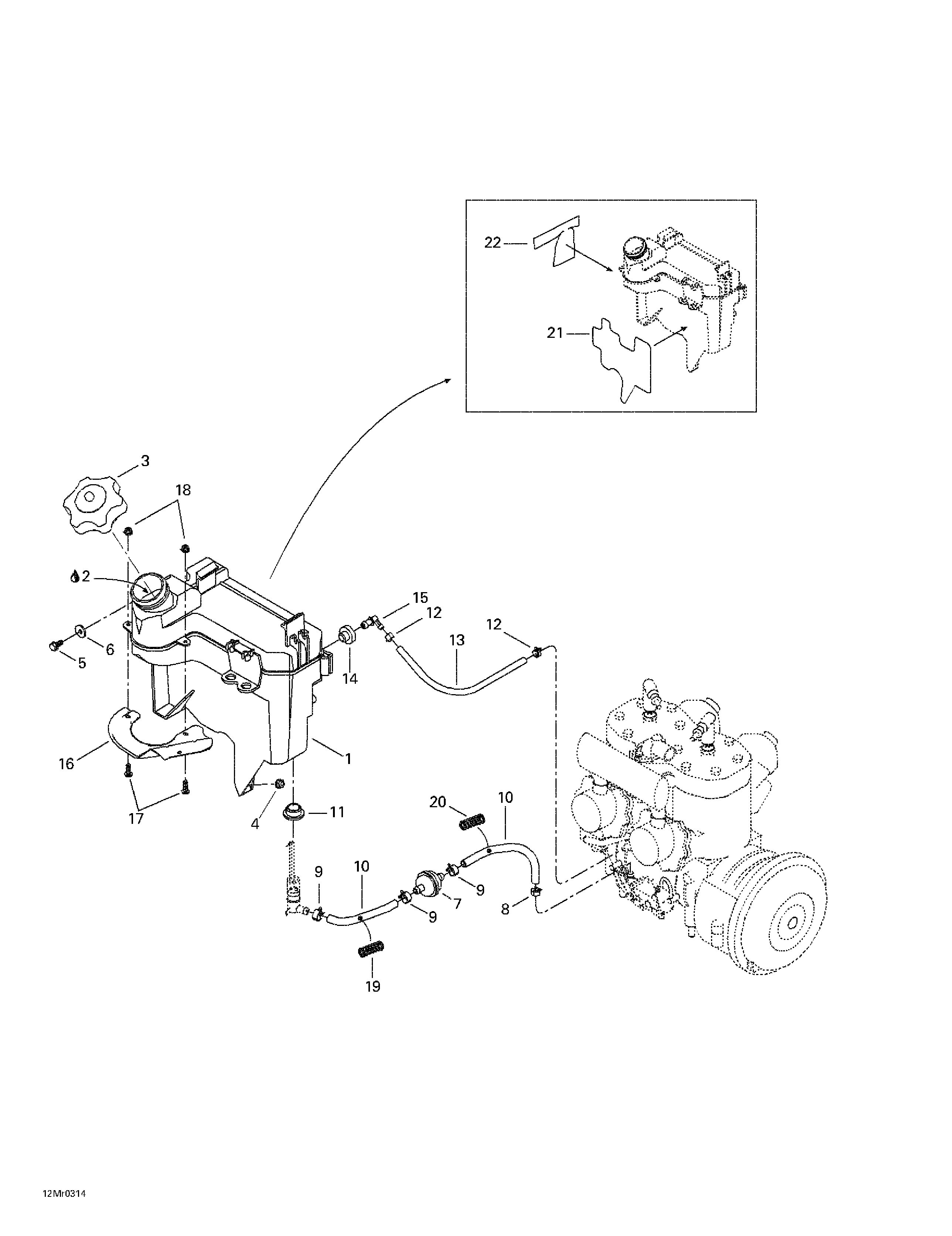

02- Oil Tank для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1519000049 Oil tankOil tank
-
2413803100 Blizzard oil (12 x 500 ml)Blizzard oil (12 x 500 ml)
-
413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
-
413803000 Injection oil (3 x 4 Liter)Injection oil (3 x 4 Liter)
-
413803200 Injection oil (205 Liter)Injection oil (205 Liter)
-
413711000 Synthetic injection Oil (3 x 4 Liter)Synthetic injection Oil (3 x 4 Liter)
-
413710700 Synthetic injection Oil (205 Liter)Synthetic injection Oil (205 Liter)
-
293600045 Synthetic injection Oil (12 x 1 Liter). Formula XP-S-llSynthetic injection Oil (12 x 1 Liter). Formula XP-S-ll
-
3519000042 CapCap
-
4233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
5210261280 Hex flanged forming screw M6 x 12Hex flanged forming screw M6 x 12
-
6250200000 Washer M6Washer M6
-
7414536500 FilterFilter
-
8414420700 Spring clampSpring clamp
-
9414415200 Spring clampSpring clamp
-
10415080700 Polyurethane hosePolyurethane hose
-
11570023000 Insulated ringInsulated ring
-
12414554800 Spring clampSpring clamp
-
13415080200 Polyurethane hosePolyurethane hose
-
14570135100 GrommetGrommet
-
15414580700 Elbow Male ConnectorElbow Male Connector
-
16519000043 DeflectorDeflector
-
17208651641 Screw M5 x 16Screw M5 x 16
-
18233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
19519000062 SpringSpring
-
20519000063 SpringSpring
-
21519000059 Reflective sheetReflective sheet
-
22519000051 Reflective sheetReflective sheet
