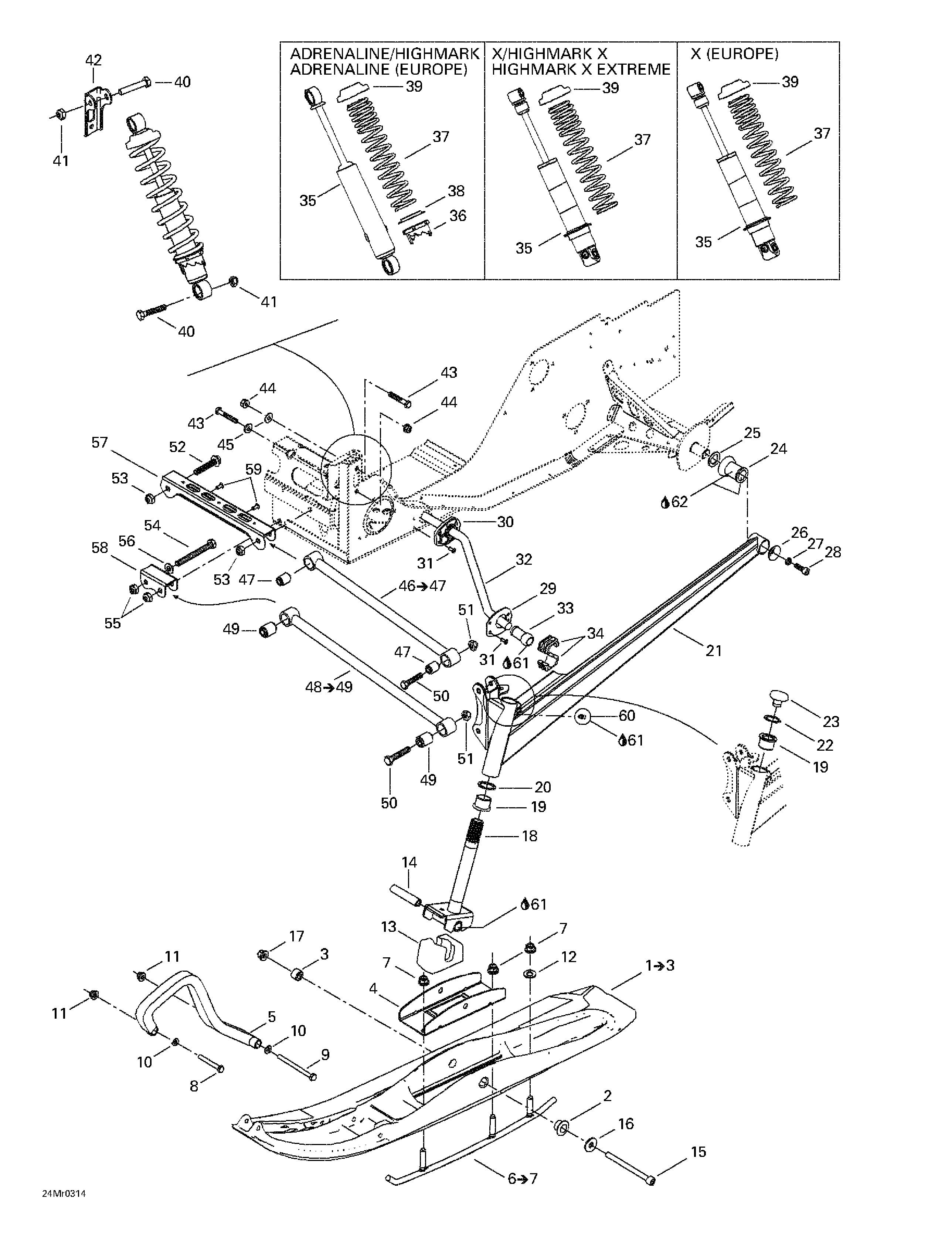

07- Front Suspension And Ski для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1505071046 R.h. ski ass'y (black). Includes 1 - 3.R.h. ski ass'y (black). Includes 1 - 3.
-
505071047 L.h. ski ass'y (black)L.h. ski ass'y (black)
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505070745 Ski reinforcementSki reinforcement
-
5505070917 Handle (yellow)Handle (yellow)
-
505070963 Handle (black)Handle (black)
-
6860504800 Carbide runner. Includes 6 - 7.Carbide runner. Includes 6 - 7.
-
7233201414 Elastic flanged nut M10Elastic flanged nut M10
-
8207085044 Hex screw M8 x 50Hex screw M8 x 50
-
9230080044 Hex screw M8 x 100Hex screw M8 x 100
-
10234081410 Flat washer M8Flat washer M8
-
11233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
12399910100 Flat washerFlat washer
-
13506151233 Ski stopperSki stopper
-
14506133300 SpacerSpacer
-
15250000069 Socket head screw M10 x 125Socket head screw M10 x 125
-
16234002410 Flat washer M10Flat washer M10
-
17732610084 Flanged nut M10Flanged nut M10
-
18505070672 Ski legSki leg
-
19505070003 CushionCushion
-
20505070004 WasherWasher
-
21505070645 R.h. armR.h. arm
-
505070646 L.h. armL.h. arm
-
22371910400 CirclipCirclip
-
23572091300 CapCap
-
24570062200 Rubber damperRubber damper
-
25503146700 WasherWasher
-
26506079600 CupCup
-
27234181401 Stop washerStop washer
-
28205582544 Socket screw M8 x 25 (scotch grip)Socket screw M8 x 25 (scotch grip)
-
29505070542 PlatePlate
-
30505070191 BushingBushing
-
31390407200 Pop rivet 3/16''Pop rivet 3/16''
-
32505070774 StabilisatorStabilisator
-
33505070816 Ball jointBall joint
-
34505070817 Sliding blockSliding block
-
35505070752 Front shock. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.Front shock. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.
-
505070894 Front shock. X (EUROPE) Summit 800 HO.Front shock. X (EUROPE) Summit 800 HO.
-
505070753 Front shock. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Front shock. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
36503183700 Cam. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.Cam. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.
-
37505070762 Spring. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.Spring. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.
-
505070760 Spring. X Summit 700. X (EUROPE). HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Spring. X Summit 700. X (EUROPE). HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
38503187500 Spring guide. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.Spring guide. ADRENALINE. ADRENALINE (EUROPE) Summit 600 HO. HIGHMARK Summit 700. Summit 800 HO.
-
39503140600 Spring stopperSpring stopper
-
40207005544 Hex screw M10 x 55Hex screw M10 x 55
-
41233601416 Self locking elastic nut M10Self locking elastic nut M10
-
42518317518 R.h. shock bracketR.h. shock bracket
-
518317519 L.h. shock bracketL.h. shock bracket
-
43207085044 Hex screw M8 x 50Hex screw M8 x 50
-
44233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
45506151245 WasherWasher
-
46505070746 Upper arm ass'y. Includes 46 - 47.Upper arm ass'y. Includes 46 - 47.
-
47505070025 BushingBushing
-
48505070748 Lower arm ass'y. Includes 48 - 49.Lower arm ass'y. Includes 48 - 49.
-
49505070025 BushingBushing
-
50207005544 Hex screw M10 x 55Hex screw M10 x 55
-
51233601416 Self locking elastic nut M10Self locking elastic nut M10
-
52207605544 Hex screw M10 x 95Hex screw M10 x 95
-
53233601416 Self locking elastic nut M10Self locking elastic nut M10
-
54207009544 Hex screw M10 x 95Hex screw M10 x 95
-
55233601416 Self locking elastic nut M10Self locking elastic nut M10
-
56234001410 Flat washer M10Flat washer M10
-
57505070010 Upper arm bracketUpper arm bracket
-
58505070011 Lower arm bracketLower arm bracket
-
59390402200 Pop rivet 3/16''Pop rivet 3/16''
-
60408200700 Grease fittingGrease fitting
-
61219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
62293550014 Grease, Super lubeGrease, Super lube
