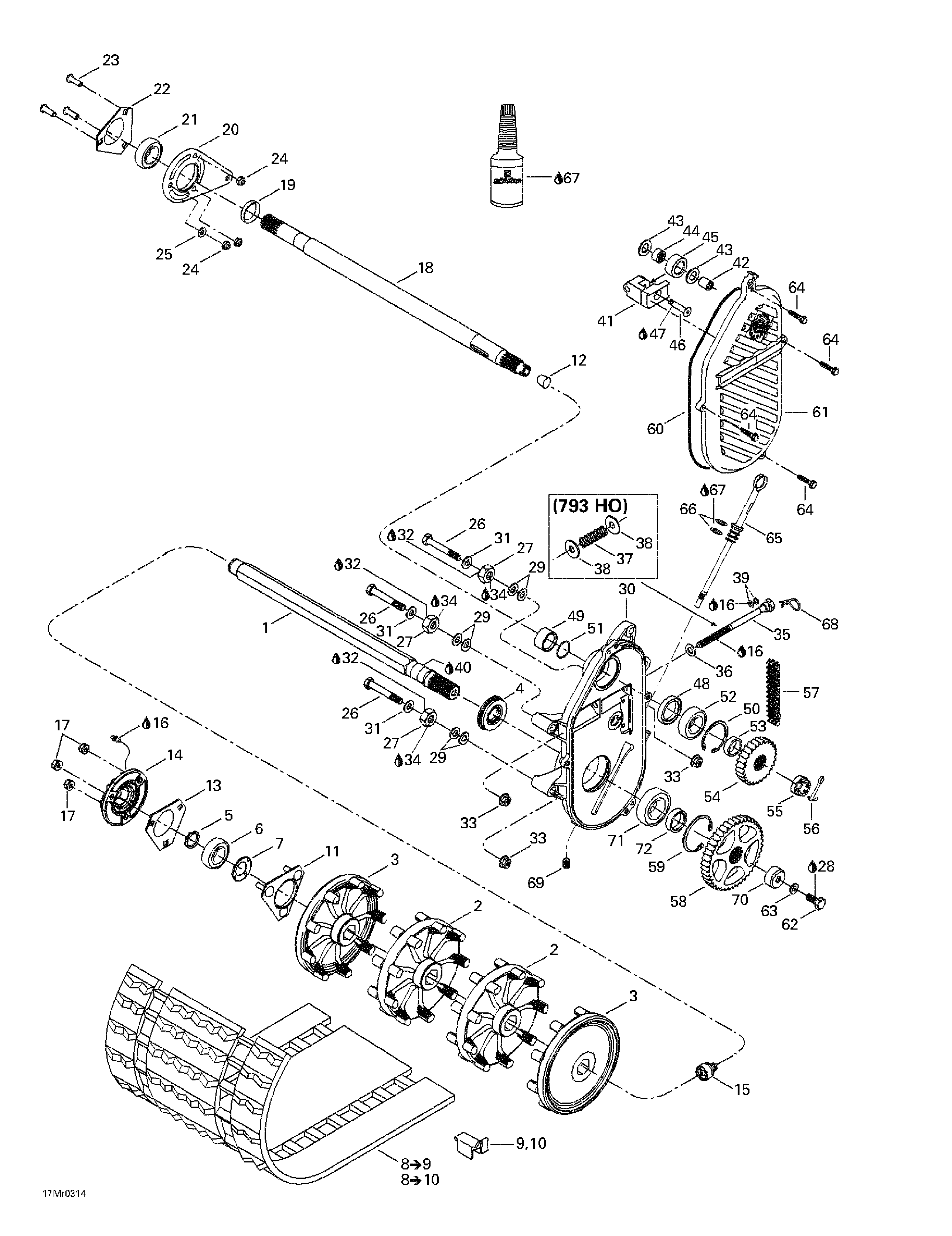

05- Drive System для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket (9 teeth)Sprocket (9 teeth)
-
3504151782 Half sprocket (9 theeth)Half sprocket (9 theeth)
-
4504151918 Oil seal ass'yOil seal ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Bearing protectorBearing protector
-
8504152188 Track ass'y (15 x 144 x 2). Includes 8 - 10. TRACK 144 ADRENALINE 600 HO Summit 600 HO. TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.Track ass'y (15 x 144 x 2). Includes 8 - 10. TRACK 144 ADRENALINE 600 HO Summit 600 HO. TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.
-
8504152110 Track ass'y (15 x 144 x 2). Includes 8 - 9. FINGER TRACK 144 ADRERNALINE 600 HO Summit 600 HO. FINGER TRACK 144 ADRENALINE & X 700 Summit 700.Track ass'y (15 x 144 x 2). Includes 8 - 9. FINGER TRACK 144 ADRERNALINE 600 HO Summit 600 HO. FINGER TRACK 144 ADRENALINE & X 700 Summit 700.
-
8504151973 Track ass'y (15 x 144 x 2). Includes 8 - 9. TRACK 144 ADRERNALINE & X 700 Summit 700.Track ass'y (15 x 144 x 2). Includes 8 - 9. TRACK 144 ADRERNALINE & X 700 Summit 700.
-
8504152179 Track ass'y (15 x 144 x 2). Includes 8 - 10. FINGER TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.Track ass'y (15 x 144 x 2). Includes 8 - 10. FINGER TRACK 144 ADRENALINE & X 800 HO Summit 800 HO.
-
8504152111 Track ass'y (15 x 151 x 2). Includes 8 - 9. FINGER TRACK 151 HIGHMARK 700 Summit 700.Track ass'y (15 x 151 x 2). Includes 8 - 9. FINGER TRACK 151 HIGHMARK 700 Summit 700.
-
8504152181 Track ass'y (15 x 151 x 2). Includes 8 - 10. FINGER TRACK 151 HIGHMARK 800 HO. FINGER TRACK 151 HIGHMARK X 800 HO. FINGER TRACK 151 HIGHMARK X EXTREME 800 HO Summit 800 HO.Track ass'y (15 x 151 x 2). Includes 8 - 10. FINGER TRACK 151 HIGHMARK 800 HO. FINGER TRACK 151 HIGHMARK X 800 HO. FINGER TRACK 151 HIGHMARK X EXTREME 800 HO Summit 800 HO.
-
8504152189 Track ass'y (15 x 159 x FC). Includes 8 - 10. TRACK 159 HIGHMARK Summit 700. TRACK 159 HIGHMARK X. TRACK 159 HIGHMARK X EXTREME Summit 800 HO.Track ass'y (15 x 159 x FC). Includes 8 - 10. TRACK 159 HIGHMARK Summit 700. TRACK 159 HIGHMARK X. TRACK 159 HIGHMARK X EXTREME Summit 800 HO.
-
8504152190 Track ass'y (15 x 151 x FC). Includes 8 - 10. TRACK 151 HIGHMARK Summit 700. TRACK 151 HIGHMARK X. TRACK 151 HIGHMARK X EXTREME Summit 800 HO.Track ass'y (15 x 151 x FC). Includes 8 - 10. TRACK 151 HIGHMARK Summit 700. TRACK 151 HIGHMARK X. TRACK 151 HIGHMARK X EXTREME Summit 800 HO.
-
9500003400 Guide cleatGuide cleat
-
10504151828 CleatCleat
-
11504151860 Bearing housingBearing housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152173 Speed flangeSpeed flange
-
15504152040 Magnetic adaptorMagnetic adaptor
-
16413706000 Synthetic greaseSynthetic grease
-
17233281414 Hex elastic flanged nut M8Hex elastic flanged nut M8
-
18501026300 Counter shaftCounter shaft
-
19504149100 SpacerSpacer
-
2080044200 SpacerSpacer
-
21504152026 Ball bearingBall bearing
-
22501025000 FlangeFlange
-
23205482546 Socket Screw M8 x 25Socket Screw M8 x 25
-
24232581414 Hex elastic nut M8Hex elastic nut M8
-
25234081410 Flat washer M8Flat washer M8
-
26207108044 Hex screw M10 x 80Hex screw M10 x 80
-
27504083800 SpacerSpacer
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29504073700 WasherWasher
-
30504152062 Chaincase. 800 HO Summit 800 HO.Chaincase. 800 HO Summit 800 HO.
-
504152064 Chaincase. 600 HO / 700 Summit 600 HO. Summit 700.Chaincase. 600 HO / 700 Summit 600 HO. Summit 700.
-
31503183800 WasherWasher
-
32293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
33233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35504151946 Adjusting screw. 800 HO Summit 800 HO.Adjusting screw. 800 HO Summit 800 HO.
-
732601314 Adjusting screw. 600 HO / 700 Summit 600 HO. Summit 700.Adjusting screw. 600 HO / 700 Summit 600 HO. Summit 700.
-
36234001410 Flat washer M10. 600 HO / 700 Summit 600 HO. Summit 700.Flat washer M10. 600 HO / 700 Summit 600 HO. Summit 700.
-
503189148 Washer. 800 HO Summit 800 HO.Washer. 800 HO Summit 800 HO.
-
37504151945 Spring. 800 HO Summit 800 HO.Spring. 800 HO Summit 800 HO.
-
38503125900 Hard washer. 800 HO Summit 800 HO.Hard washer. 800 HO Summit 800 HO.
-
39414484400 O-ring. 600 HO / 700 Summit 600 HO. Summit 700.O-ring. 600 HO / 700 Summit 600 HO. Summit 700.
-
504151954 O-ring. 800 HO Summit 800 HO.O-ring. 800 HO Summit 800 HO.
-
40219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
41504151940 Chain tensionerChain tensioner
-
42504080200 SpacerSpacer
-
43504080300 WasherWasher
-
44405403000 Needle bearingNeedle bearing
-
45414531300 RollerRoller
-
46732601144 ScrewScrew
-
47293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
48415049300 Oil sealOil seal
-
49507031500 SpacerSpacer
-
50371901700 Inner circlipInner circlip
-
51414876700 O-ringO-ring
-
52504152006 Ball bearingBall bearing
-
53504147200 ShimShim
-
54504096200 Sprocket (21 teeth). ADRENALINE 600 HO (EUROPE) Summit 600 HO. ADRENALINE & X 700 Summit 700. ADRENALINE & X 800 HO Summit 800 HO.Sprocket (21 teeth). ADRENALINE 600 HO (EUROPE) Summit 600 HO. ADRENALINE & X 700 Summit 700. ADRENALINE & X 800 HO Summit 800 HO.
-
504152030 Sprocket (19 teeth). ADRENALINE 600 HO Summit 600 HO. HIGHMARK / HIGHMARK X 700 Summit 700. HIGHMARK X EXTREME 800 HO Summit 800 HO.Sprocket (19 teeth). ADRENALINE 600 HO Summit 600 HO. HIGHMARK / HIGHMARK X 700 Summit 700. HIGHMARK X EXTREME 800 HO Summit 800 HO.
-
504096200 Sprocket (21 teeth). HIGHMARK / HIGHMARK X 800 HO Summit 800 HO.Sprocket (21 teeth). HIGHMARK / HIGHMARK X 800 HO Summit 800 HO.
-
504091000 Sprocket (23 teeth). ADRENALINE & X 800 HO (EUROPE) Summit 800 HO.Sprocket (23 teeth). ADRENALINE & X 800 HO (EUROPE) Summit 800 HO.
-
55250000012 Hex castellated nut M20Hex castellated nut M20
-
56371006300 Cotter pinCotter pin
-
57504151830 Drive chain wide (72 links). ADRENALINE 600 HO Summit 600 HO. HIGHMARK / HIGHMARK X 700 Summit 700. HIGHMARK X EXTREME 800 HO Summit 800 HO.Drive chain wide (72 links). ADRENALINE 600 HO Summit 600 HO. HIGHMARK / HIGHMARK X 700 Summit 700. HIGHMARK X EXTREME 800 HO Summit 800 HO.
-
504151857 Drive chain wide (74 links). ADRENALINE 600 HO (EUROPE) Summit 600 HO. ADRENALINE & X 700 & 800 HO Summit 700.. HIGHMARK / HIGHMARK X 800 HO Summit 800 HO.Drive chain wide (74 links). ADRENALINE 600 HO (EUROPE) Summit 600 HO. ADRENALINE & X 700 & 800 HO Summit 700.. HIGHMARK / HIGHMARK X 800 HO Summit 800 HO.
-
58504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
59415064300 Inner CirclipInner Circlip
-
60415046400 O-ringO-ring
-
61504152027 CoverCover
-
62207102544 Hex screw M10 x 25Hex screw M10 x 25
-
63234100602 Stop washer M10Stop washer M10
-
64210263080 Hex forming screw M6 x 30Hex forming screw M6 x 30
-
65504151703 Filler cap ass'yFiller cap ass'y
-
66414969400 O-ringO-ring
-
67413803300 Synthetic chaincase oil, 12 x 355 mlSynthetic chaincase oil, 12 x 355 ml
-
68414575600 Hair pinHair pin
-
69504151921 Plug 1/8-27Plug 1/8-27
-
70504152104 CapCap
-
71504152005 Ball bearingBall bearing
-
72504152058 ShimShim
