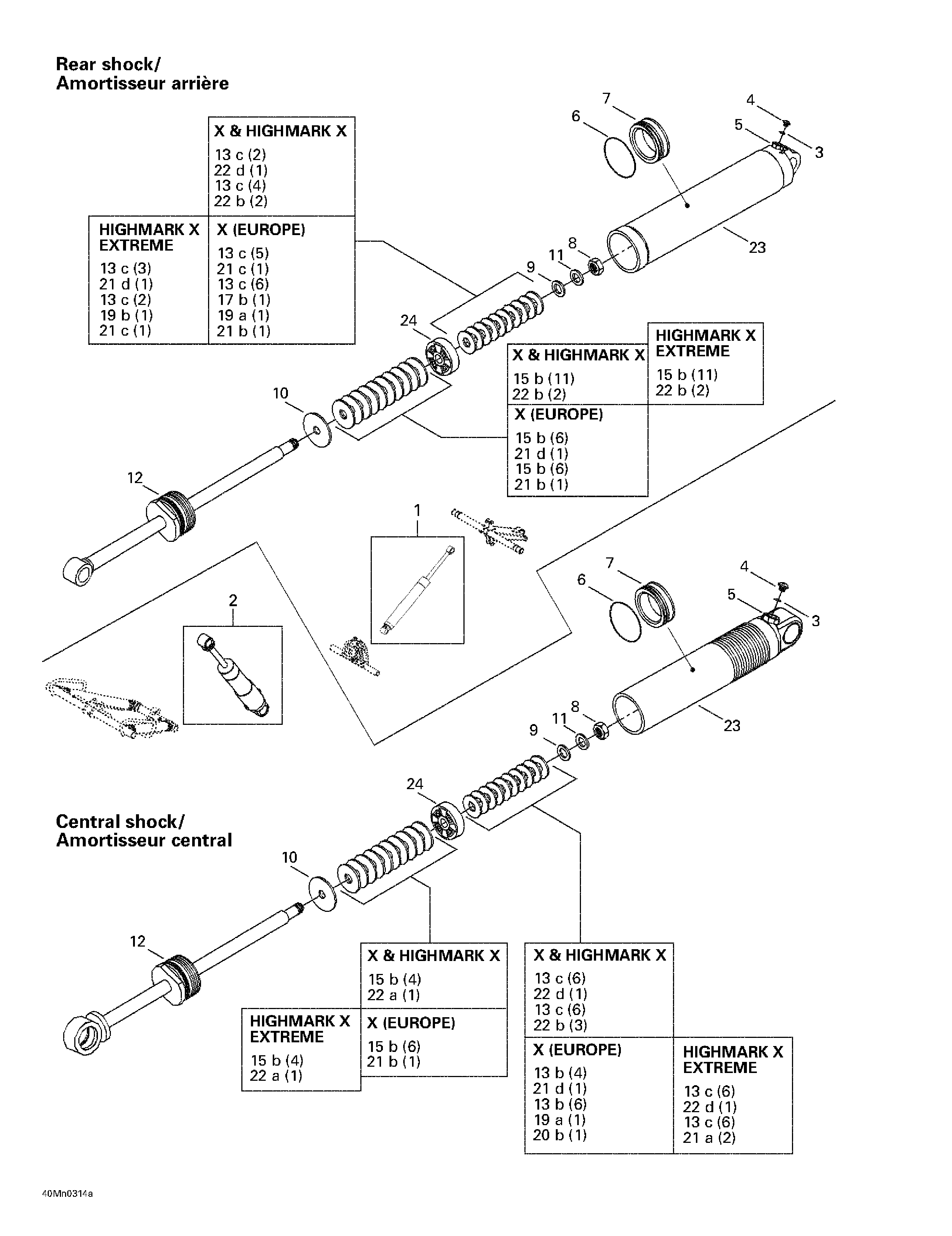

08- Rear Take Apart Shocks для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1503190024 Rear shock. X & HIGHMARK X Summit 700. Summit 800.Rear shock. X & HIGHMARK X Summit 700. Summit 800.
-
1503190020 Rear shock. HIGHMARK X EXTREME Summit 800.Rear shock. HIGHMARK X EXTREME Summit 800.
-
1503190225 Rear shock. X (EUROPE) Summit 800.Rear shock. X (EUROPE) Summit 800.
-
2503190017 Center shock. X & HIGHMARK X Summit 700. Summit 800.Center shock. X & HIGHMARK X Summit 700. Summit 800.
-
2503190226 Center shock. X (EUROPE) Summit 800.Center shock. X (EUROPE) Summit 800.
-
2503190015 Center shock. HIGHMARK X EXTREME Summit 800.Center shock. HIGHMARK X EXTREME Summit 800.
-
3505070400 O-ring. Summit 700. Summit 800.O-ring. Summit 700. Summit 800.
-
4505070399 Screw. Summit 700. Summit 800.Screw. Summit 700. Summit 800.
-
5505070398 Air valve. Summit 700. Summit 800.Air valve. Summit 700. Summit 800.
-
6414888312 O-ring. Summit 700. Summit 800.O-ring. Summit 700. Summit 800.
-
7415097900 Free piston. Summit 700. Summit 800.Free piston. Summit 700. Summit 800.
-
13a415039100 (C36) Leaf Valve O30 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.254. Summit 700. Summit 800.
-
13b414888318 (C36) Leaf Valve O30 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.203. Summit 700. Summit 800.
-
13c414888319 (C36) Leaf Valve O30 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O30 x 0.152. Summit 700. Summit 800.
-
14a414888320 (C36) Leaf Valve O28 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O28 x 0.203. Summit 700. Summit 800.
-
14b414888321 (C36) Leaf Valve O28 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O28 x 0.152. Summit 700. Summit 800.
-
15a415039000 (C36) Leaf Valve O26 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.254. Summit 700. Summit 800.
-
15b414888322 (C36) Leaf Valve O26 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.203. Summit 700. Summit 800.
-
15c414888323 (C36) Leaf Valve O26 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O26 x 0.152. Summit 700. Summit 800.
-
16a414888324 (C36) Leaf Valve O22 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O22 x 0.203. Summit 700. Summit 800.
-
16b414888325 (C36) Leaf Valve O22 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O22 x 0.152. Summit 700. Summit 800.
-
17a414888340 (C36) Leaf Valve O21 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O21 x 0.114. Summit 700. Summit 800.
-
18a414888326 (C36) Leaf Valve O20 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.203. Summit 700. Summit 800.
-
18b414888327 (C36) Leaf Valve O20 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.152. Summit 700. Summit 800.
-
18c414888328 (C36) Leaf Valve O20 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O20 x 0.114. Summit 700. Summit 800.
-
19a414888329 (C36) Leaf Valve O18 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O18 x 0.203. Summit 700. Summit 800.
-
19b414888330 (C36) Leaf Valve O18 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O18 x 0.152. Summit 700. Summit 800.
-
20a414888331 (C36) Leaf Valve O16 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.254. Summit 700. Summit 800.
-
20b414888332 (C36) Leaf Valve O16 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.203. Summit 700. Summit 800.
-
20c414888333 (C36) Leaf Valve O16 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.152. Summit 700. Summit 800.
-
20d415038900 (C36) Leaf Valve O16 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O16 x 0.114. Summit 700. Summit 800.
-
21a414888334 (C36) Leaf Valve O15 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.254. Summit 700. Summit 800.
-
21b414888335 (C36) Leaf Valve O15 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.203. Summit 700. Summit 800.
-
21c414888336 (C36) Leaf Valve O15 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.152. Summit 700. Summit 800.
-
21d414888337 (C36) Leaf Valve O15 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O15 x 0.114. Summit 700. Summit 800.
-
22a503189538 (C36) Leaf Valve O12 x 0.254. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.254. Summit 700. Summit 800.
-
22b414888339 (C36) Leaf Valve O12 x 0.203. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.203. Summit 700. Summit 800.
-
22c414888338 (C36) Leaf Valve O12 x 0.152. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.152. Summit 700. Summit 800.
-
22d415038800 (C36) Leaf Valve O12 x 0.114. Summit 700. Summit 800.(C36) Leaf Valve O12 x 0.114. Summit 700. Summit 800.
