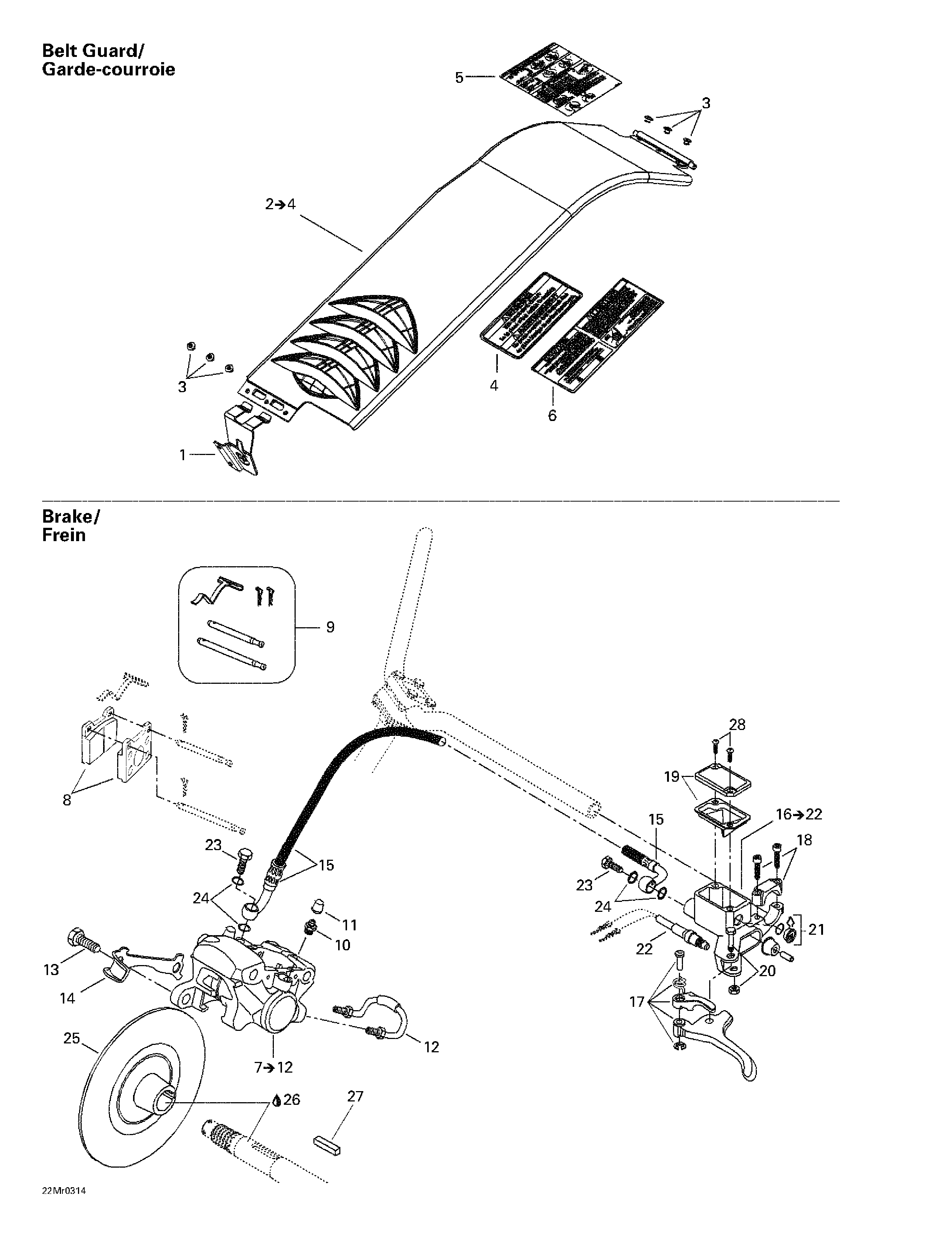

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt guard assy. Includes 2 - 4.Belt guard assy. Includes 2 - 4.
-
3390402200 Pop rivet 3/16''Pop rivet 3/16''
-
4516001190 Security labelSecurity label
-
5516001639 Suspension ajustment decalSuspension ajustment decal
-
6516001232 Altitude calibration instruction label. C/UAltitude calibration instruction label. C/U
-
7507032351 Caliper. Includes 7 - 12. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.Caliper. Includes 7 - 12. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.
-
507032350 Caliper. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Caliper. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
8415084600 Brake pad kitBrake pad kit
-
9414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
10414989800 Bleeder screwBleeder screw
-
11414989700 CapCap
-
12414989900 Rigid tubeRigid tube
-
13207103544 Hex screw M10 x 35Hex screw M10 x 35
-
14507032316 Tab lockTab lock
-
15507032237 Hose. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.Hose. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.
-
507032329 Hose. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Hose. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
16507032340 Master cylinder. Includes 16 - 22. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.Master cylinder. Includes 16 - 22. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.
-
507032357 Master cylinder. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Master cylinder. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
17507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
18415029800 ClampClamp
-
19415029900 CapCap
-
20415030000 PinPin
-
21414990600 WindowWindow
-
22507032366 MicroswitchMicroswitch
-
23414920500 Banjo boltBanjo bolt
-
24414920600 Rondelle pour connectionRondelle pour connection
-
25507031300 Brake disk. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.Brake disk. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.
-
507032301 Brake disk. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.Brake disk. X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
-
26293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
27507021300 KeyKey
-
28216141260 ScrewScrew
