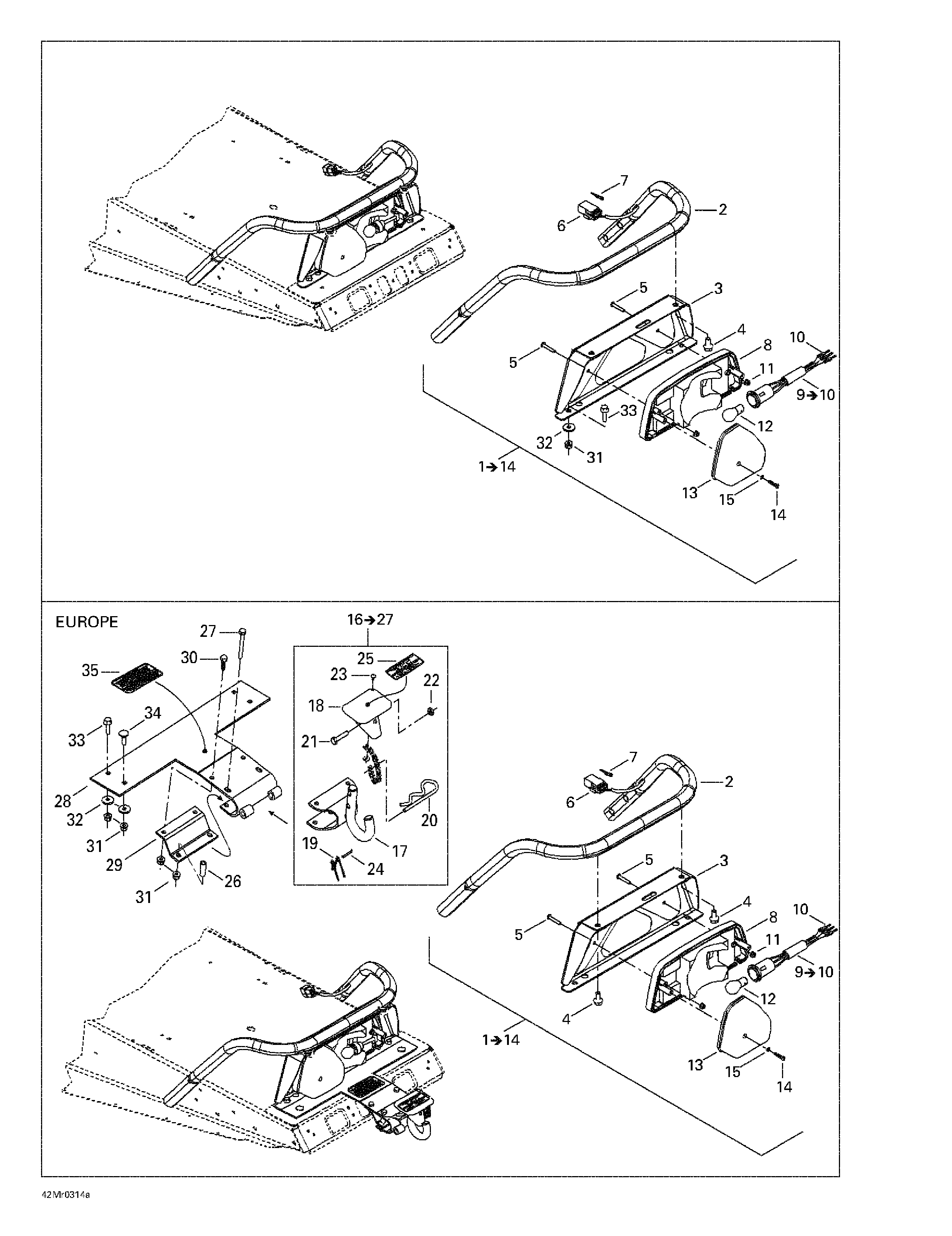

09- Luggage Rack для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
2511000186 RackRack
-
3511000187 Rear light supportRear light support
-
4207681644 Hex flanged screw M8 x 16Hex flanged screw M8 x 16
-
5205453046 Socket head srew M5 x 30Socket head srew M5 x 30
-
6515175494 Male housing (3 cricuits)Male housing (3 cricuits)
-
7515175232 Male terminalMale terminal
-
515175234 Male terminalMale terminal
-
8515175397 Lamp housingLamp housing
-
10515175232 Male terminalMale terminal
-
11233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
12410504100 Tail lamp bulbTail lamp bulb
-
13414513700 LensLens
-
14209632540 Phillips screw M3.9 x 25Phillips screw M3.9 x 25
-
15414516400 WasherWasher
-
16861778700 Hitch ass'y. Includes 16 - 27. EUROPE Summit 600. Summit 800.Hitch ass'y. Includes 16 - 27. EUROPE Summit 600. Summit 800.
-
17517199300 HitchHitch
-
18517152700 Hitch protectorHitch protector
-
19517152800 SpringSpring
-
20114045200 Hair pinHair pin
-
21207063044 Hex screw M6 x 30Hex screw M6 x 30
-
22232561414 Hex elastic nut M6Hex elastic nut M6
-
23390409400 Pop rivet 5/32''Pop rivet 5/32''
-
24732804000 Spirol pin M3 x 24Spirol pin M3 x 24
-
25516001243 Security labelSecurity label
-
26517191700 Spacer. EUROPE Summit 600. Summit 800.Spacer. EUROPE Summit 600. Summit 800.
-
27207065044 Hex screw M6 x 50. EUROPE Summit 600. Summit 800.Hex screw M6 x 50. EUROPE Summit 600. Summit 800.
-
28511000208 Fixation. EUROPE Summit 600. Summit 800.Fixation. EUROPE Summit 600. Summit 800.
-
29511000022 Reinforcement. EUROPE Summit 600. Summit 800.Reinforcement. EUROPE Summit 600. Summit 800.
-
30207162044 Hex screw M6 x 20. EUROPE Summit 600. Summit 800.Hex screw M6 x 20. EUROPE Summit 600. Summit 800.
-
31233261414 Hex flanged elastic nut M6. C/UHex flanged elastic nut M6. C/U
-
233261414 Hex flanged elastic nut M6. EUROPE Summit 600. Summit 800.Hex flanged elastic nut M6. EUROPE Summit 600. Summit 800.
-
32224061201 Flat washer. C/UFlat washer. C/U
-
224061201 Flat washer. EUROPE Summit 600. Summit 800.Flat washer. EUROPE Summit 600. Summit 800.
-
33207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
34207762544 Carriage bolt M6 x 25. EUROPE Summit 600. Summit 800.Carriage bolt M6 x 25. EUROPE Summit 600. Summit 800.
-
35516001709 Security label. EUROPE Summit 600. Summit 800.Security label. EUROPE Summit 600. Summit 800.
