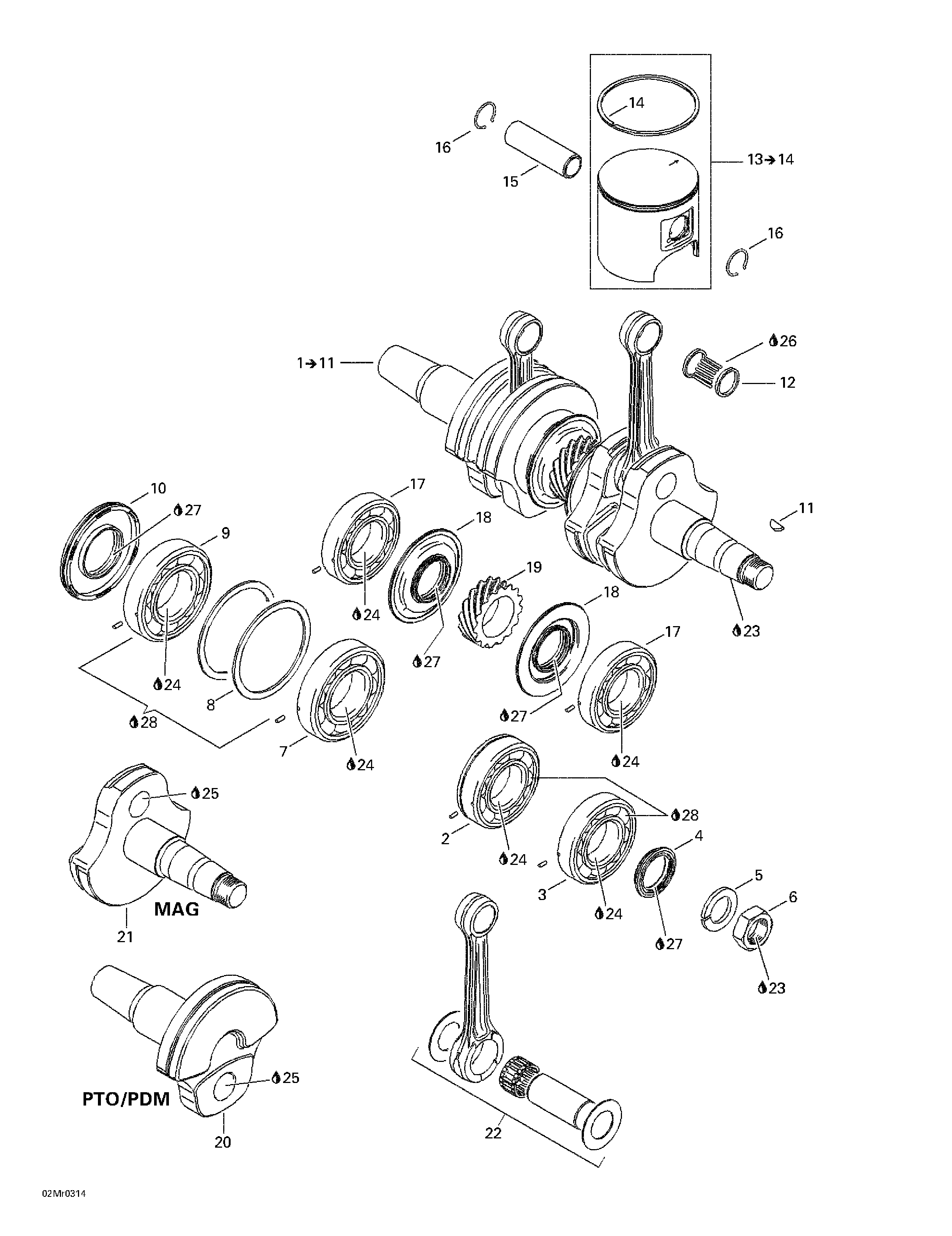

01- Crankshaft And Pistons для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003

№

Артикул

Название
1

420889090 Crankshaft ass'y. Includes 1 - 11. Summit 600 HO.

Crankshaft ass'y. Includes 1 - 11. Summit 600 HO.

0 ₽
420889091 Crankshaft ass'y. Summit 700.

Crankshaft ass'y. Summit 700.

0 ₽
420889671 Crankshaft ass'y. Summit 800 HO.

Crankshaft ass'y. Summit 800 HO.

0 ₽
2

420832635 Ball bearing 6206

Ball bearing 6206

0 ₽
3

420832575 Ball bearing 6206

Ball bearing 6206

8 480 ₽
4

420931792 Oil seal

Oil seal

0 ₽
5

420945759 Lock washer

Lock washer

660 ₽
6

420842234 Hex nut M22 x 1.5

Hex nut M22 x 1.5

0 ₽
7

420832605 Ball bearing 6207. Summit 600 HO.

Ball bearing 6207. Summit 600 HO.

0 ₽
420832606 Ball bearing 6207. Summit 700. Summit 800 HO.

Ball bearing 6207. Summit 700. Summit 800 HO.

0 ₽
8

420926190 Retainning disk

Retainning disk

3 990 ₽
9

420832600 Ball bearing 6208. Summit 600 HO. Summit 700.

Ball bearing 6208. Summit 600 HO. Summit 700.

6 610 ₽
420832700 Ball bearing 6208. Summit 800 HO.

Ball bearing 6208. Summit 800 HO.

0 ₽
10

420931285 Oil seal

Oil seal

0 ₽
11

420246015 Woodfuff key

Woodfuff key

1 040 ₽
12

420832425 Needle bearing

Needle bearing

0 ₽
13

420889181 Piston ass'y (71.89 mm). Includes 13 - 14. Summit 600 HO.

Piston ass'y (71.89 mm). Includes 13 - 14. Summit 600 HO.

0 ₽
420888298 Piston ass'y (77.88 mm). Summit 700.

Piston ass'y (77.88 mm). Summit 700.

18 740 ₽
420889481 Piston ass'y (81.87 mm). Summit 800 HO.

Piston ass'y (81.87 mm). Summit 800 HO.

0 ₽
14

420815290 Semi-Trapez Ring. Summit 600 HO.

Semi-Trapez Ring. Summit 600 HO.

0 ₽
420815226 Standard semi-trapez ring. Summit 700.

Standard semi-trapez ring. Summit 700.

5 490 ₽
420815218 Standard semi-trapez ring. Summit 800 HO.

Standard semi-trapez ring. Summit 800 HO.

0 ₽
15

420916410 Gudgeon pin. Summit 600 HO.

Gudgeon pin. Summit 600 HO.

0 ₽
420916370 Gudgeon pin. Summit 700. Summit 800 HO.

Gudgeon pin. Summit 700. Summit 800 HO.

0 ₽
16

420845106 Piston circlip

Piston circlip

2 410 ₽
17

420832575 Ball bearing 6207

Ball bearing 6207

8 480 ₽
18

420931455 Oil seal

Oil seal

5 240 ₽
19

420834355 Central gear (15 teeth)

Central gear (15 teeth)

9 030 ₽
20

420818709 Crankshaft (PTO side). Summit 600 HO.

Crankshaft (PTO side). Summit 600 HO.

27 720 ₽
420818709 Crankshaft (PTO side). Summit 700.

Crankshaft (PTO side). Summit 700.

27 720 ₽
420819032 Crankshaft (PTO side). Summit 800 HO.

Crankshaft (PTO side). Summit 800 HO.

0 ₽
21

420818739 Crankshaft (MAG side). Summit 600 HO.

Crankshaft (MAG side). Summit 600 HO.

23 810 ₽
420818739 Crankshaft (MAG side). Summit 700.

Crankshaft (MAG side). Summit 700.

23 810 ₽
420819061 Crankshaft (MAG side). Summit 800 HO.

Crankshaft (MAG side). Summit 800 HO.

23 230 ₽
22

420889093 Rod repair kit (MAG side). Summit 600 HO. Summit 700.

Rod repair kit (MAG side). Summit 600 HO. Summit 700.

0 ₽
420889108 Rod repair kit (MAG side). Summit 800 HO.

Rod repair kit (MAG side). Summit 800 HO.

0 ₽
420889094 Rod repair kit (PTO side). Summit 600 HO. Summit 700.

Rod repair kit (PTO side). Summit 600 HO. Summit 700.

27 830 ₽
420889109 Rod repair kit (PTO side). Summit 800 HO.

Rod repair kit (PTO side). Summit 800 HO.

0 ₽
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
24

293800070 Loctite 767, antiseize lubricant, 8 oz

Loctite 767, antiseize lubricant, 8 oz

3 130 ₽
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
26

413802900 Injection oil (12 x 1 liter)

Injection oil (12 x 1 liter)

1 050 ₽
27

420899271 Petamo grease, GHY133N, 400 g

Petamo grease, GHY133N, 400 g

8 190 ₽
28

293550021 Isoflex grease, 50 g

Isoflex grease, 50 g

6 860 ₽
