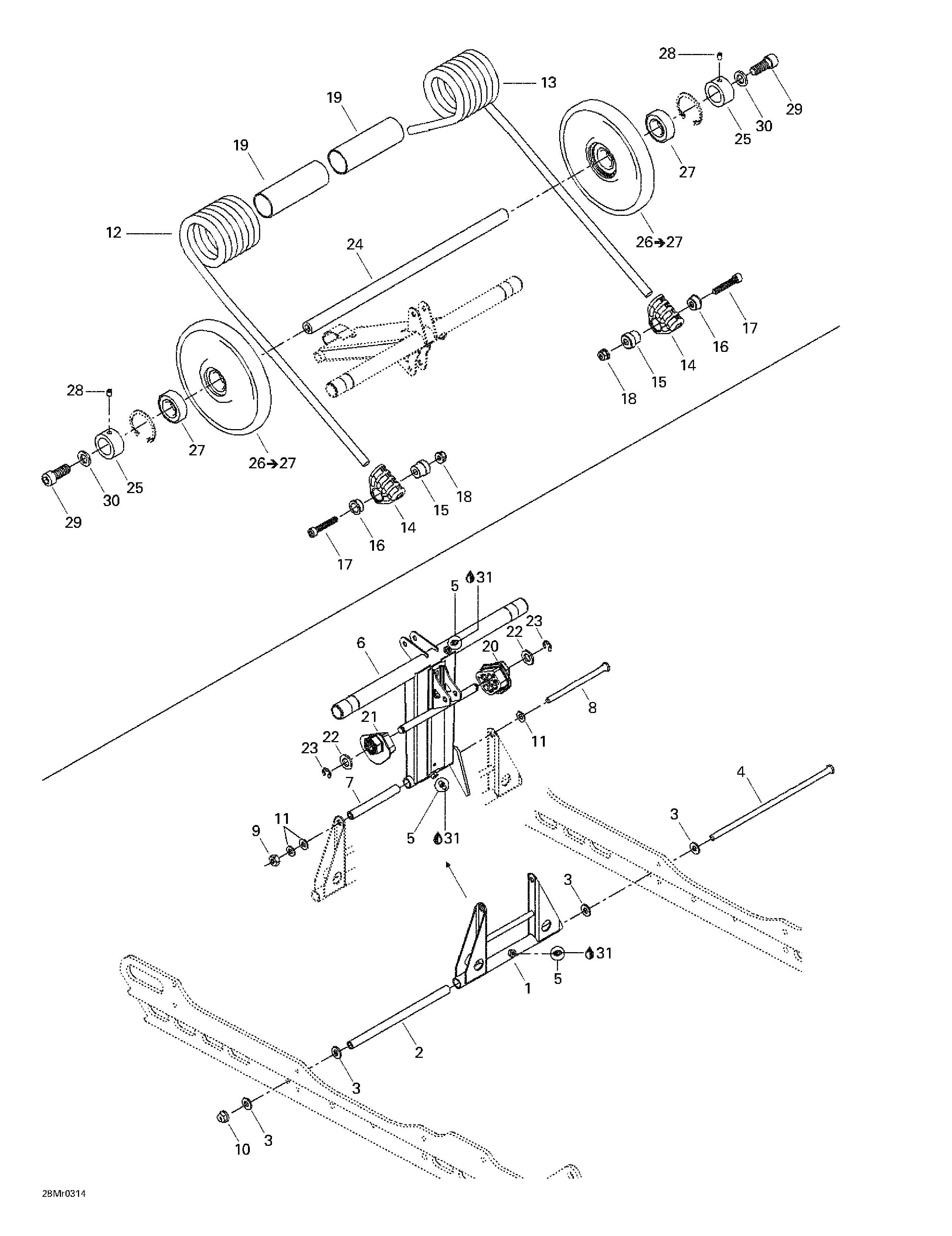

08- Rear Arm для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1503189793 Pivot armPivot arm
-
2503189156 Pivot axlePivot axle
-
3503189157 WasherWasher
-
4732601198 Long bolt M8Long bolt M8
-
5408200700 Grease fitting M6Grease fitting M6
-
6503190275 Rear armRear arm
-
7503144300 Upper axleUpper axle
-
8732601197 Short bolt M8Short bolt M8
-
9232581414 Hex elastic nut M8Hex elastic nut M8
-
10233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
11234081410 Flat washer M8Flat washer M8
-
12503189522 R.h. spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700. HIGHMARK X EXTREME Summit 800. ADRENALINE (EUROPE) Summit 600.R.h. spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700. HIGHMARK X EXTREME Summit 800. ADRENALINE (EUROPE) Summit 600.
-
503189627 R.h. spring. X (EUROPE) Summit 800.R.h. spring. X (EUROPE) Summit 800.
-
13503189524 L.h. spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700. HIGHMARK X EXTREME Summit 800. ADRENALINE (EUROPE) Summit 600.L.h. spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700. HIGHMARK X EXTREME Summit 800. ADRENALINE (EUROPE) Summit 600.
-
503189629 L.h. spring. X (EUROPE) Summit 800.L.h. spring. X (EUROPE) Summit 800.
-
14503189657 Spring supportSpring support
-
15503188934 Spring axle guideSpring axle guide
-
16503188929 Retainer cushionRetainer cushion
-
17205084544 Socket head screw M8 x 45Socket head screw M8 x 45
-
18233281414 Hex elastic flanged nut M8Hex elastic flanged nut M8
-
19572086000 BushingBushing
-
20503190023 L.h. spring camL.h. spring cam
-
21503190022 R.h. spring camR.h. spring cam
-
22234021410 Flat washer M12Flat washer M12
-
23293370013 E-circlipE-circlip
-
24503189711 Rear cross shaftRear cross shaft
-
25503168800 Retaining ringRetaining ring
-
26503190269 Wheel 165. Includes 26 - 27.Wheel 165. Includes 26 - 27.
-
27405404500 Ball bearingBall bearing
-
28206260844 Pressure screw M6 x 8Pressure screw M6 x 8
-
29205523544 Socket head screw M12 x 35 (scotchg grip)Socket head screw M12 x 35 (scotchg grip)
-
30503189276 WasherWasher
-
31219700417 Synthetic Grease, 400gSynthetic Grease, 400g
