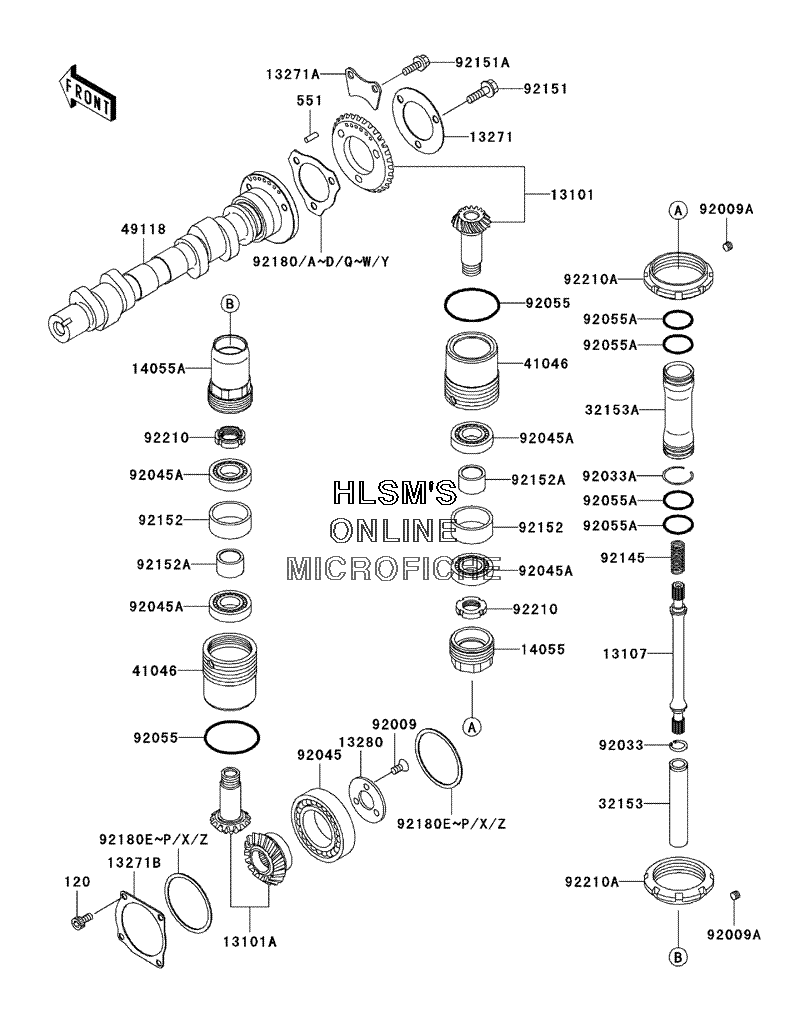

CAMSHAFT(S) W/ BEVEL GEAR для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
1310113101-1288 GEAR, ASSY., CAMSHAFTGEAR, ASSY., CAMSHAFT
-
13101A13101-1289 GEAR, ASSY., CRANKSHAFTGEAR, ASSY., CRANKSHAFT
-
1310713107-1424 SHAFTSHAFT
-
1327113271-1190 PLATE, PINPLATE, PIN
-
13271A13271-1191 PLATE, CAMSHAFT BEARINGPLATE, CAMSHAFT BEARING
-
13271B13271-1192 PLATE, BEARINGPLATE, BEARING
-
1328013280-1123 HOLDER, BEARINGHOLDER, BEARING
-
1405514055-1145 CASE, GEARCASE, GEAR
-
14055A14055-1146 CASE, GEARCASE, GEAR
-
3215332153-1096 PIPEPIPE
-
32153A32153-1097 PIPEPIPE
-
4104641046-1100 HOUSING, BEARINGHOUSING, BEARING
-
4911849118-1184 CAMSHAFT, COMPCAMSHAFT, COMP
-
9200992009-1828 SCREW, 5X10SCREW, 5X10
-
92009A92009-1883 SCREW, NUT LOCKSCREW, NUT LOCK
-
9203392033-1306 RING, SNAPRING, SNAP
-
92033A92033-1307 RING, SNAPRING, SNAP
-
9204592045-1373 BEARING, BALL, 6907C2BEARING, BALL, 6907C2
-
92045A92045-1383 BEARING, BALL, 6003SH2, T2BEARING, BALL, 6003SH2, T2
-
9205592055-1593 O-RING, CAMSHAFT BEVEL GEARO-RING, CAMSHAFT BEVEL GEAR
-
92055A92055-1617 O-RING, 22.1X1.9O-RING, 22.1X1.9
-
9214592145-1285 SPRINGSPRING
-
9215192151-1476 BOLT, 6X14BOLT, 6X14
-
92151A92151-1647 BOLT, 6X14BOLT, 6X14
-
9215292152-1150 COLLARCOLLAR
-
92152A92152-1151 COLLARCOLLAR
-
9218092180-1279 SHIM, T=0.70SHIM, T=0.70
-
92180A92180-1280 SHIM, T=0.10SHIM, T=0.10
-
92180B92180-1281 SHIM, T=0.15SHIM, T=0.15
-
92180C92180-1282 SHIM, T=0.20SHIM, T=0.20
-
92180D92180-1283 SHIM, T=0.30SHIM, T=0.30
-
92180E92180-1284 SHIM, T=1.00SHIM, T=1.00
-
92180F92180-1285 SHIM, T=0.10SHIM, T=0.10
-
92180G92180-1286 SHIM, T=0.15SHIM, T=0.15
-
92180H92180-1287 SHIM, T=0.20SHIM, T=0.20
-
92180I92180-1288 SHIM, T=0.30SHIM, T=0.30
-
92180J92180-1289 SHIM, T=0.40SHIM, T=0.40
-
92180K92180-1290 SHIM, T=0.50SHIM, T=0.50
-
92180L92180-1291 SHIM, T=0.60SHIM, T=0.60
-
92180M92180-1292 SHIM, T=0.70SHIM, T=0.70
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
551551A0412 PIN, DOWELPIN, DOWEL
-
92180N92180-1293 SHIM, T=0.80SHIM, T=0.80
-
92180O92180-1294 SHIM, T=0.90SHIM, T=0.90
-
92180P92180-1296 SHIM, T=1.20SHIM, T=1.20
-
92180Q92180-1299 SHIM, T=0.40SHIM, T=0.40
-
92180R92180-1300 SHIM, T=0.50SHIM, T=0.50
-
92180S92180-1301 SHIM, T=0.60SHIM, T=0.60
-
92180T92180-1302 SHIM, T=0.80SHIM, T=0.80
-
92180U92180-1303 SHIM, T=0.90SHIM, T=0.90
-
92180V92180-1304 SHIM, T=1.00SHIM, T=1.00
-
92180W92180-1305 SHIM, T=0.08SHIM, T=0.08
-
92180X92180-1306 SHIM, T=0.08SHIM, T=0.08
-
92180Y92180-1323 SHIM, T=0.13SHIM, T=0.13
-
92180Z92180-1324 SHIM, T=0.13SHIM, T=0.13
-
9221092210-1175 NUT, BEVEL GEARNUT, BEVEL GEAR
-
92210A92210-1176 NUT, BEVEL GEAR HOUSINGNUT, BEVEL GEAR HOUSING
