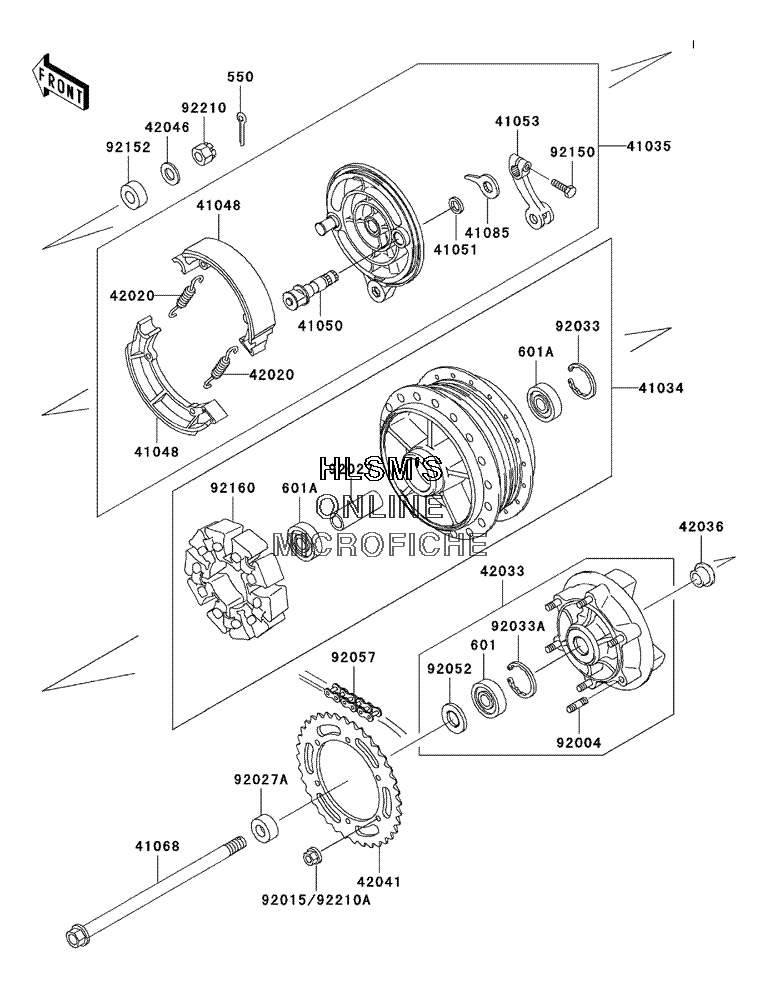

WHEEL - REAR W/ CHAIN для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6205G BEARING, BALL, #6205GBEARING, BALL, #6205G
-
601A601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
4103441034-1298 DRUM, ASSY., REAR BRAKEDRUM, ASSY., REAR BRAKE
-
4103541035-1509 PANEL, ASSY., BRAKE, REARPANEL, ASSY., BRAKE, REAR
-
4104841048-1130 SHOE, BRAKESHOE, BRAKE
-
4105041050-1065 CAM, BRAKECAM, BRAKE
-
4105141051-003 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-1093 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-1413 AXLE, REARAXLE, REAR
-
4108541085-1060 INDICATORINDICATOR
-
4202042020-004 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
4203342033-1207 COUPLING, ASSY., REAR HUBCOUPLING, ASSY., REAR HUB
-
4203642036-1233 SLEEVE, REAR AXLE, L=22SLEEVE, REAR AXLE, L=22
-
4204142041-1371 SPROCKET, HUB (39 TEETH)SPROCKET, HUB (39 TEETH)
-
4204642046-009 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202792027-1714 COLLAR, L=104COLLAR, L=104
-
92027A92027-1784 COLLAR, REAR HUBCOLLAR, REAR HUB
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-1474 CHAIN, DRIVE, EK525MV, OX104LCHAIN, DRIVE, EK525MV, OX104L
-
9215092150-1797 BOLT, 8X27BOLT, 8X27
-
9215292152-1155 COLLAR, REAR AXLE (RIGHT) L=14.5COLLAR, REAR AXLE (RIGHT) L=14.5
-
9216092160-1524 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9221092210-1171 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
